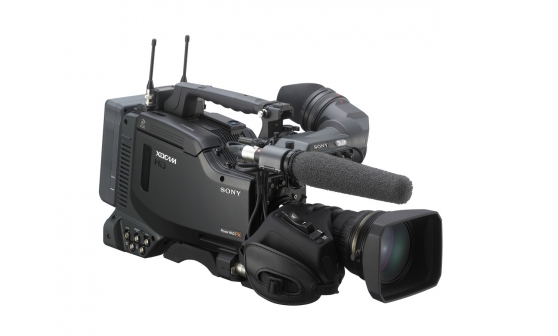

Product Highlights
1920 x 1080 Native Resolution
Three 2/3" PowerHAD FX IT CCDs
Records MPEG HD422 50 Mbps to XDCAM Disc
On-Board 960 x 540 Resolution LCD
USB for Proxy Recording, Scene Files
Digital Extender: 2x, 4x, 6x
HD/SD-SDI / Composite Pool Feed Input
50-Pin Connector for CCU Control
Supports CBK-WA100 Wireless Adapter
PowerTap and 4-Pin DC Output
Image Device
3-chip, 2/3" HD PowerHAD FX CCDs
Effective Resolution
1920 x 1080
Horizontal Resolution
1000 TVL or more (1920 x 1080i mode)
Optical System
F1.4 prism system
Lens Mount
2/3" type B4 bayonet mount
Digital Extender
x2, x3, x4
Registration
0.02% or less for entire screen area (excluding distortion due to lens)
Modulation Depth
45% or more at 27.5 MHz (typical)
Sensitivity
1080/59.94i: f/11 (typical at 2000 lux, 89.9% reflectance)
1080/50i: f/12 (typical at 2000 lux, 89.9% reflectance)
Minimum Illumination
0.3 lux (at f/1.4 lens, +42 dB gain, and slow shutter off)
Built-in Filters
Color Correction: A: Cross, B: 3200K, C: 4300K, D: 6300K
ND: 1: Clear, 2: 1/4, 3: 1/16, 4: 1/64
LCD Monitor
Type: LCD
Size: 3.5"
Resolution: 960 x 540
Speaker
Yes
Shutter Speed
1080/59.94i: 1/100, 1/125, 1/250, 1/500, 1/1000
1/2000, ECS, SLS
1080/50i: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000, ECS, SLS
1080/29.97p: 1/40, 1/60, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, ECS, SLS
1080/25p: 1/33, 1/50, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000, ECS, SLS
1080/23.98p: 1/32, 1/48, 1/50, 1/60, 1/96, 1/125, 1/250, 1/500, 1/1000, 1/2000, ECS, SLS
720/23.98p (Pull-down), 23.98p: 1/32, 1/48, 1/50, 1/60, 1/96, 1/125, 1/250, 1/500, 1/1000, 1/2000, ECS, SLS
Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8, 16 frame accumulation
Gain Selection
-6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB
White Balance
Preset (3200K), Memory A, Memory B/ATW
Signal to Noise Ratio
62 dB (58 dB without Noise Suppressor)
Connectivity
Video Input
1 x HD/SD-SDI on BNC
Audio Input
2 x XLR 3-pin female (CH-1 / CH-2) -- line, mic, mic +48V, AES/EBU switchable
1 x XLR 5-pin female stereo
Video Output
2 x HD/SD-SDI on BNC (output 2 supports character on/off) 1 x Text output on BNC -- HD: Y, SD: composite (character on/off) switchable
Audio Output
1 x XLR 5-pin male stereo
1 x 3.5mm mini earphone out
1 x Mono speaker
Genlock and Timecode
1 x Genlock / Composite "Pool Feed" input on BNC (1.0 Vp-p, 75 ohms)
1 x Timecode input on BNC (0.5 Vp-p to 18 Vp-p, 10 kohms)
1 x Timecode output on BNC (1.0 Vp-p, 75 ohms)
Supported Standards
HD-SDI: SMPTE 292M (w/embedded audio)
SD-SDI: SMPTE 259M (w/embedded audio)
Lens Remote Control Connector
1 x 12-pin
Remote Connection
1 x 8-pin
Camera Connector
1 x 50-pin
Ethernet
1 x RJ-45 connector (100BASE-TX: IEEE 802.3u, 10BASE-T: IEEE 802.3)
USB
1 x For proxy recording on USB Memory, connecting CBK-WA100 wireless adapter, and firmware updates
VTR
Media
XDCAM Disc
Codec
MPEG HD422
CBR, 50 Mbps
MPEG HD
HQ Mode: VBR, up to 35 Mbps
SP Mode: CBR, up to 25 Mbps
LP Mode: VBR, up to 18 Mbps
MPEG IMX
CBR, 50 Mbps
DVCAM
CBR, 25 Mbps
Proxy
MPEG-4
Frame Rates
MPEG HD422 50 Mbps
1920 x 1080: 59.94i, 29.97p, 50i, 25p, 23.98p
1280 x 720: 59.94p, 50p
MPEG HD420 (HQ 35 Mbps, SP 25 Mbps)
1440 x 1080: 59.94i, 29.97p, 50i, 25p, 23.98p
1280 x 720: 59.94p, 50p
MPEG HD420 (LP 18 Mbps - Playback Only)
1440 x 1080: 59.94i, 29.97p, 50i, 25p, 23.98p
MPEG IMX 50 Mbps / DVCAM Mode
720 x 486: 59.94i, 29.97p
720 x 576: 50i, 25p
MPEG IMX 40 Mbps / 30 Mbps (Playback Only)
720 x 486: 59.94i, 29.97p
720 x 576: 50i, 25p
Maximum Recording Time
MPEG HD422 at 50 Mbps
PFD50DLA: 95 minutes
PFD23A: 43 minutes
MPEG-HD at 35 Mbps, 4-Channel Audio
PFD50DLA: 145 minutes
PFD23A: 65 min
35 Mbps, 2-Channel Audio (Playback Only)
PFD50DLA: 150 minutes
PFD23A: 68 minutes
25 Mbps, 4-Channel Audio
PFD50DLA: 190 minutes
PFD23A: 85 min
25 Mbps, 2-Channel Audio (Playback Only)
PFD50DLA: 200 minutes
PFD23A: 90 minutes
18 Mbps, 4-Channel Audio (Playback Only)
PFD50DLA: 248 minutes
PFD23A: 112 minutes
18 Mbps, 2-Channel Audio (Playback Only)
PFD50DLA: 265 minutes
PFD23A: 122 minutes MPEG IMX at 50 Mbps
PFD50DLA: 100 minutes
PFD23A: 45 min
40 Mbps (Playback Only)
PFD50DLA: 120 minutes
PFD23A: 55 minutes
30 Mbps (Playback Only
PFD50DLA: 150 minutes
PFD23A: 68 minutes
DVCAM at 25 Mbps
PFD50DLA: 185 minutes
PFD23A: 85 minutes
Audio
Audio Dynamic Range
>93 dB
Audio Signal Format
MPEG HD422: 4-channel; 24-bit, 48 kHz
MPEG HD: 4-channel; 16-bit, 48 kHz
MPEG IMX: 4-channel; 24-bit, 48 kHz or 4-channel; 16-bit, 48 kHz
DVCAM: 4-channel; 16-bit, 48 kHz
Proxy: A-law; 4-channel; 8-bit, 8 kHz
Audio Frequency Response
20 Hz to 20 kHz, +0.5 dB / -1.0 dB
Distortion
< 0.08% at 1 kHz reference level
Crosstalk
< -70 dB at 1 kHz reference level
Wow and Flutter
Below measurable limit
Headroom
12, 16, 18, 20 dB selectable
Power Requirements
DC: 12 V +5.0 V / -1.0 V (4-pin XLR connector)
Power Output
1 x 11 to 17 VDC on 4-pin connector (for wireless receiver; 1 A maximum) 1 x 2-pin PowerTap (12 VDC, 50 W maximum)
Power Consumption
Recording with LCD Active: 37 W
Recording with VF, LCD Manual Lens, and Mic: 41 W
Continuous Battery Life
Up to 115 minutes with BP-l80S battery
Up to 135 minutes with BP-GL95 battery
Operating Temperature
23 to 104°F / -5 to 40°C
Storage Temperature
-4 to +140°F / -20 to +60° C
Humidity
10 to 90%, RH
Dimensions (WxHxD)
Body Only without Protrusions: 5 x 10.6 13.2" / 124 x 269 x 332 mm
Weight
Body Only: 9.3 lb / 4.2 kg
With VF, Mic, Disc, BP-L80 S Battery: 13.6 lb / 6.2 kg
With VF, Mic, Disc, BP-GL95 Battery: 13 lb / 5.9 kg
Packaging Info
Package Weight
12.7 lb
Box Dimensions (LxWxH)
17.5 x 14.0 x 11.0 "
