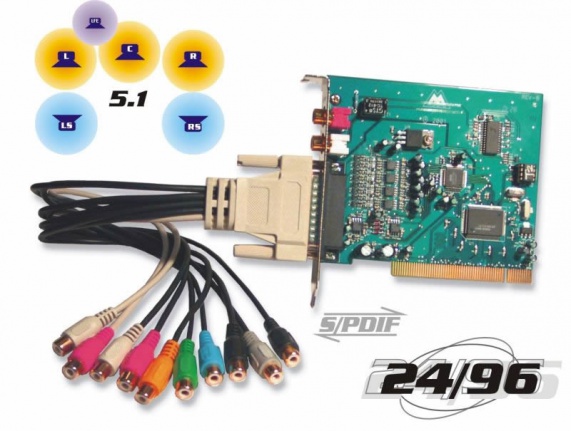

M-Audio delta 410 Soundcard PCI - 8x Out, 2x In

Bewaar
  • Aantal keer bekeken 66x bekeken
  • Datum geplaatst 1 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Zo goed als nieuw
Type advertentie
Aangeboden
Type prijs
Vraagprijs

Omschrijving

Professionele Delta 410 soundcard met 2 inputs / 8 outputs analog and digital stereo input / output (S / PDIF) in 24-bit / 96kHz quality.

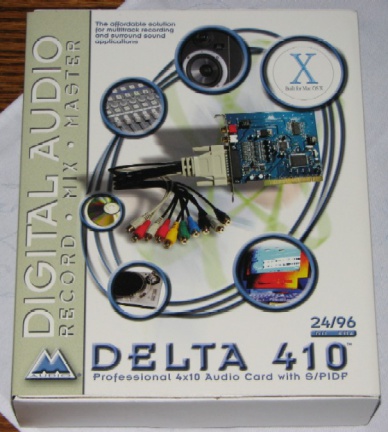

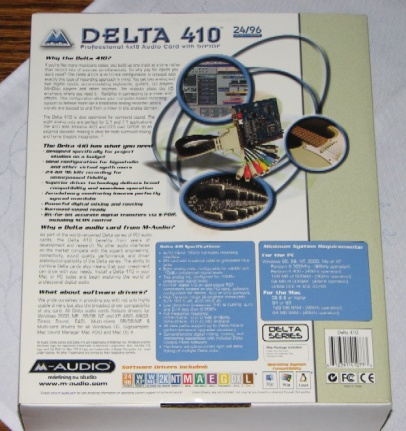

Compleet in originele verpakking met alle toebehoren.

Technical Specifications:

• 24-bit / 96kHz system, PCI 2.1 slot card, PnP support.
• Enables IRQ sharing with other IRQ sharing-enabled cards.
• Recording channels (total): 4
• Playback channels (total): 10
• Super-fast audio input / output. Latency time to 4ms (real, measured value) and therefore perfectly suited for virtual synthesizers and samplers.
• Full-duplex recording and playback simultaneously.

• All components are uncompromisingly designed for use with 24-bit / 96 kHz of bandwidth and bit depth (Analog input / output levels, anti-aliasing filter, converter, host interface, internal mixer / router, system drivers). The only way to get the "real" 24-bit / 96kHz quality you expect.

• 8 analog outputs, up to 24-bit / 96kHz:
o Dynamic Range D / A: measured: 103dB (A) 0.0015% THD 0 dBFS
o Analog connections via RCA jacks.
o Supported sample rates of the analog inputs / outputs (Hz): 8k, 9.6k, 11.025k, 21k, 16k, 22.05k, 24k, 32k, 44.1k, 48k, 88.2k and 96k.
o Resolutions: 8, 16, 20 and 24-bit digital audio.

• 2 analog inputs, up to 24-bit / 96kHz:
o dynamic range A / D: measured: 99dB (A), 0.0023% THD 0 dBFS
o Analog connections via RCA jacks.
o Supported sample rates of the analog inputs / outputs (Hz): 8k, 9.6k, 11.025k, 21k, 16k, 22.05k, 24k, 32k, 44.1k, 48k, 88.2k and 96k.
o Resolutions: 8, 16, 20 and 24-bit digital audio.

• S / PDIF I / O, up to 24Bit / 96kHz, regardless of the analog part:
o Digital Connection via RCA jacks (on Co2 and Co3 visually and AES / EBU).
o The signal on the digital input is preserved in the original. There is no resampling, Redithering or other signal corruption.
o Supported sample rates of S / DPIF input / output (Hz): 22.05k, 24k, 32k, 44.1k, 48k, 88.2k and 96k.
o Resolutions: 8, 16, 20 and 24-bit digital audio.
o can be about driver setting "Consumer / Professional" Set as AES / EBU signal with S / PDIF level.
o "Non-audio" mode for transfer of AC3 and DTS streams.

• scalability and extensibility by internal synchronization and combination of Delta cards (Delta 1010 Delta 66, Delta 44, Delta Audiophile and Delta DiO2496). To build and expand your system to suit your needs!

• Instant one input monitoring (Zero Latency Monitoring, Direct Monitoring) via the integrated digital mixer with 36-bit resolution. The mixer also provides extensive routing and monitoring functions.

• Minimum requirements:
o PC 96kHz operation: Pentium II 266 MHz, PCI 2.1, 64MB RAM, UDMA EIDE or SCSI2 hard drive.
o PC for 48kHz operation: Pentium 200 MMX, PCI 2.1, 64RAM, UDMA EIDE or SCSI2 hard drive.
o Macintosh G3, PCI 2.1, 64MB RAM, min. Mac OS 8.5.1
o Works seamlessly with AMD® Athlon ™ systems.

=======================================
Verzending via Bpack 24h.
Volg de zending online met "Track & Trace"
Verzendingskosten: 6,50 euro.
Dit item kan ook afgehaald worden !
