TOPPING DX7S 2x ES9038K2M DAC / PreampDSD 32bit / 384k…

Bewaar
  • Aantal keer bekeken 48x bekeken
  • Datum geplaatst 4 maanden geleden geplaatst

Kenmerken


Levering
Ophalen of verzenden
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Vraagprijs

Omschrijving

alles aanwezig en top gebouwd!  in zwart en zilver leverbaar.

bescheiden prijs, topkwaliteit!  2x ES9028MK2 Chips

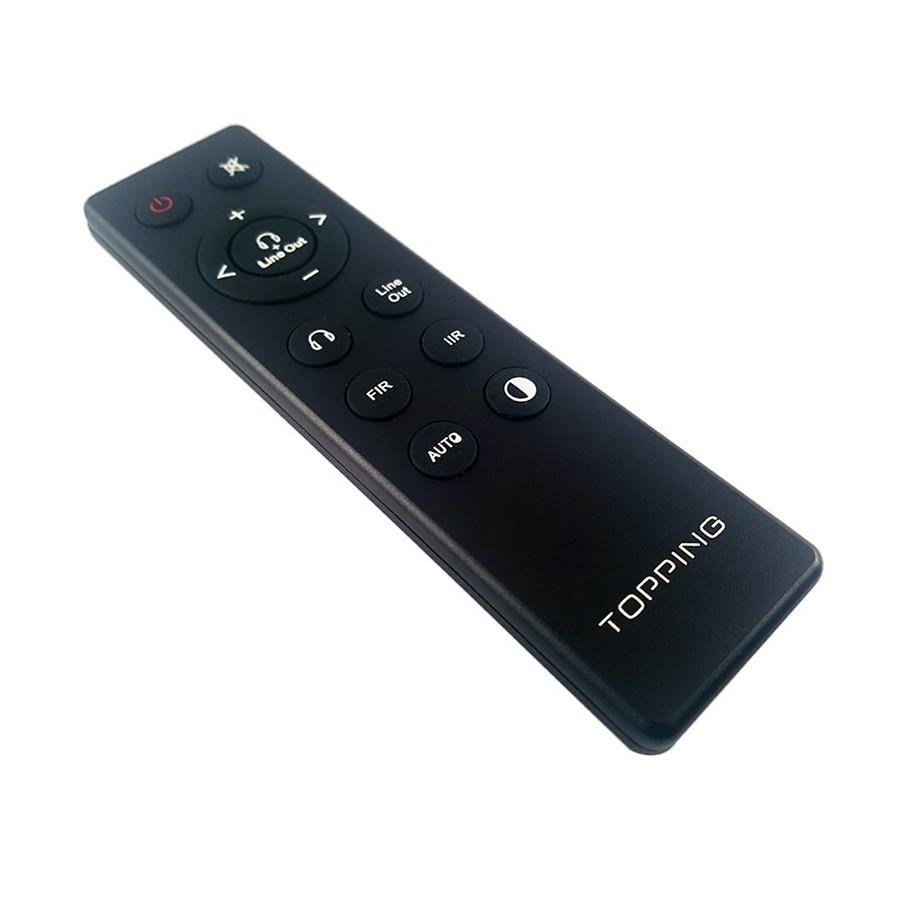

dac pre amp gebalanceerd, afstandsbediening incl volume regeling.

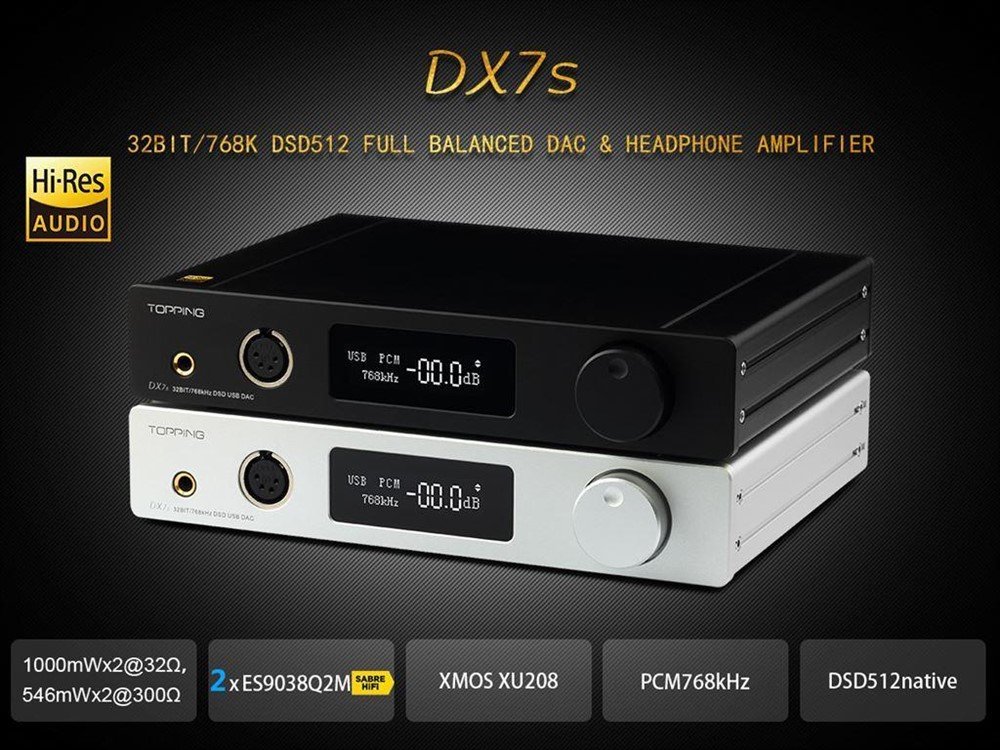

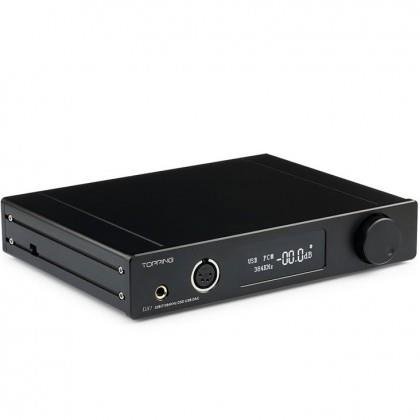

The Topping DX7S is a versatile device that will serve you as both DAC, preamplifier and headphone amplifier.

It incorporates a symmetrical design based on two DAC ES9038K2M for an exceptional rendition.

Versatility and efficiencyThe Topping DX7 thanks to its "form factor" and its 32bit 384khz capacity offers many configuration possibilities.

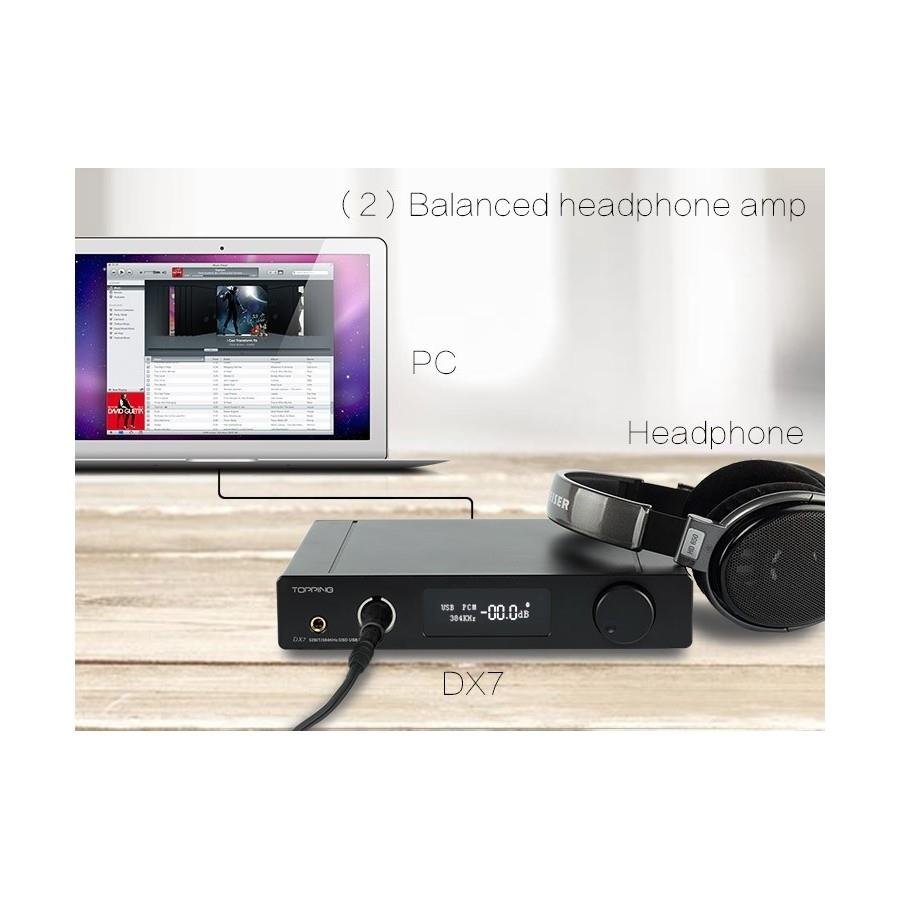

Combining the functions of DAC, digital preamplifier and high impedance headphone amplifier, it will fulfill most needs with a balanced headphone output.

USB XMOS dual ES9038K2M

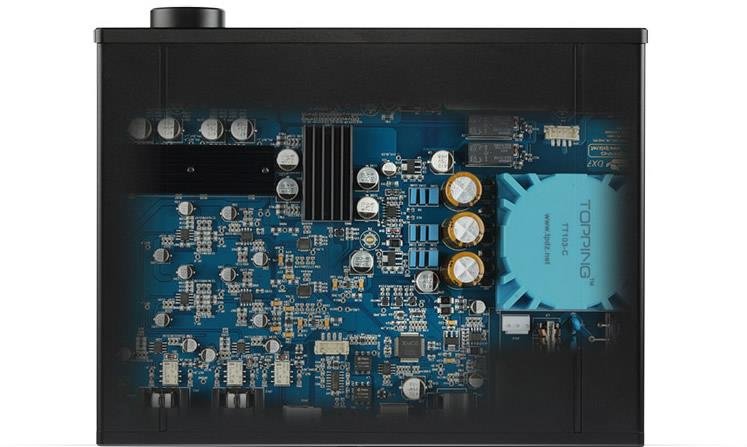

The fully symmetrical design of this Es9038K2M-based 2-Chip DAC gives it high-end technical qualities with minimal crosstalk and floor noise.

Each standard PCM SPDIF digital input has a galvanic isolation transformer. The Topping Dx7s offers at a studied rate benefits rarely achieved.


Double analogical floor real symmetrical
The analog stage of this DAC is symmetrical with the output of both ES9038K2M.

The analog part has separate OP amps for each left and right channel of Texas Instrument-grade audiophile quality.


A symmetrical helmet section High Fidelity

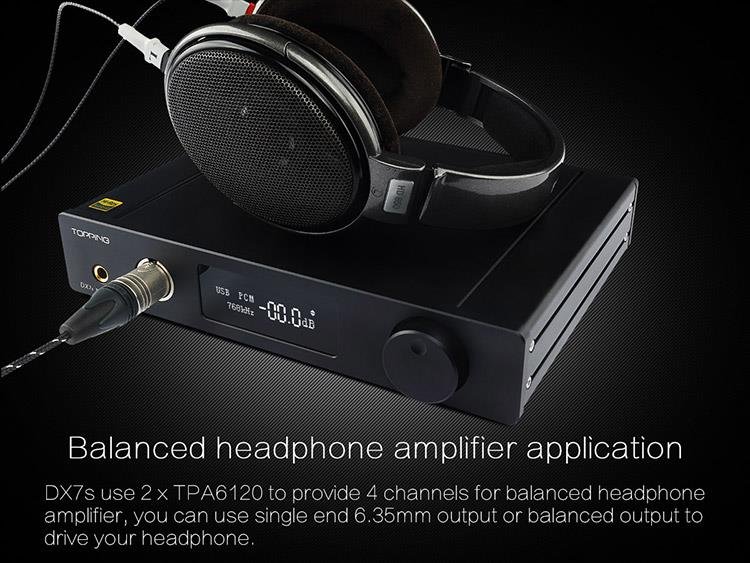

The Topping DX7s DAC delivers optimal headphone output through two TPA6112A2 amplifiers.
Thus, in addition to supporting the DSD / DXD and sampling rates up to 32bit / 384kHz, it benefits from a particularly neat analog output stage that can attack the market-leading audiophile headsets on XLR balanced 4 pin output.

This allows the DX7 to offer a lower sound color and therefore a faithful reproduction, a very low distortion and a high linearity. You gain in dynamics, details and neutrality.

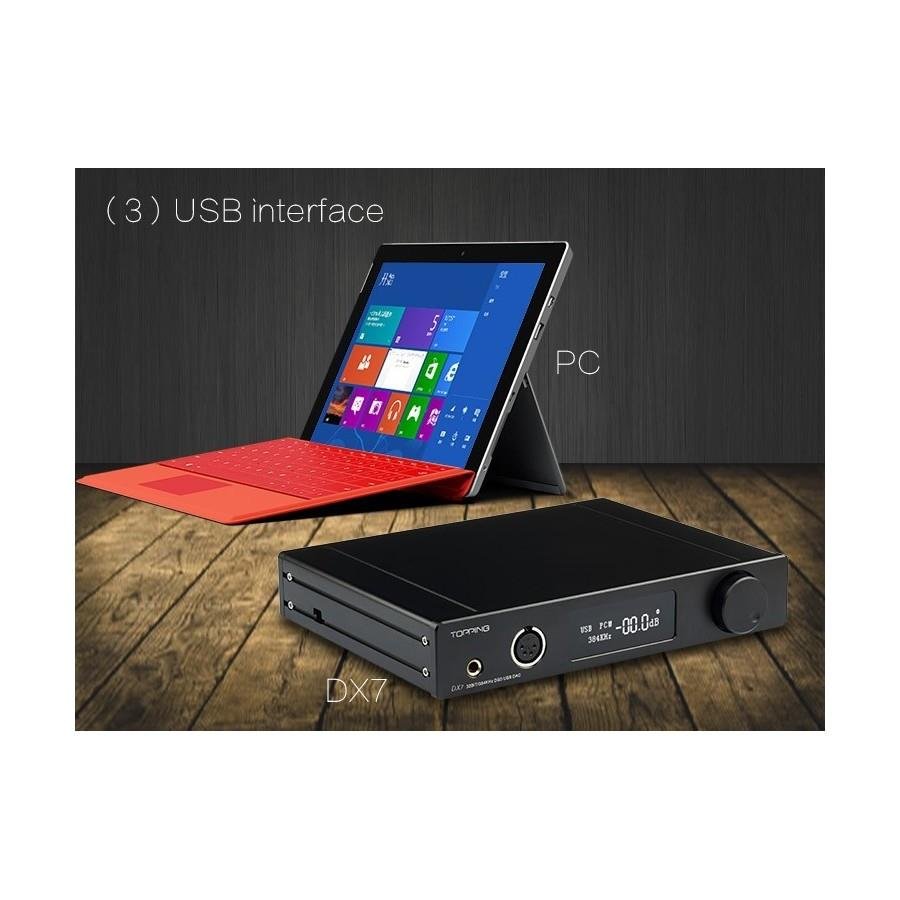

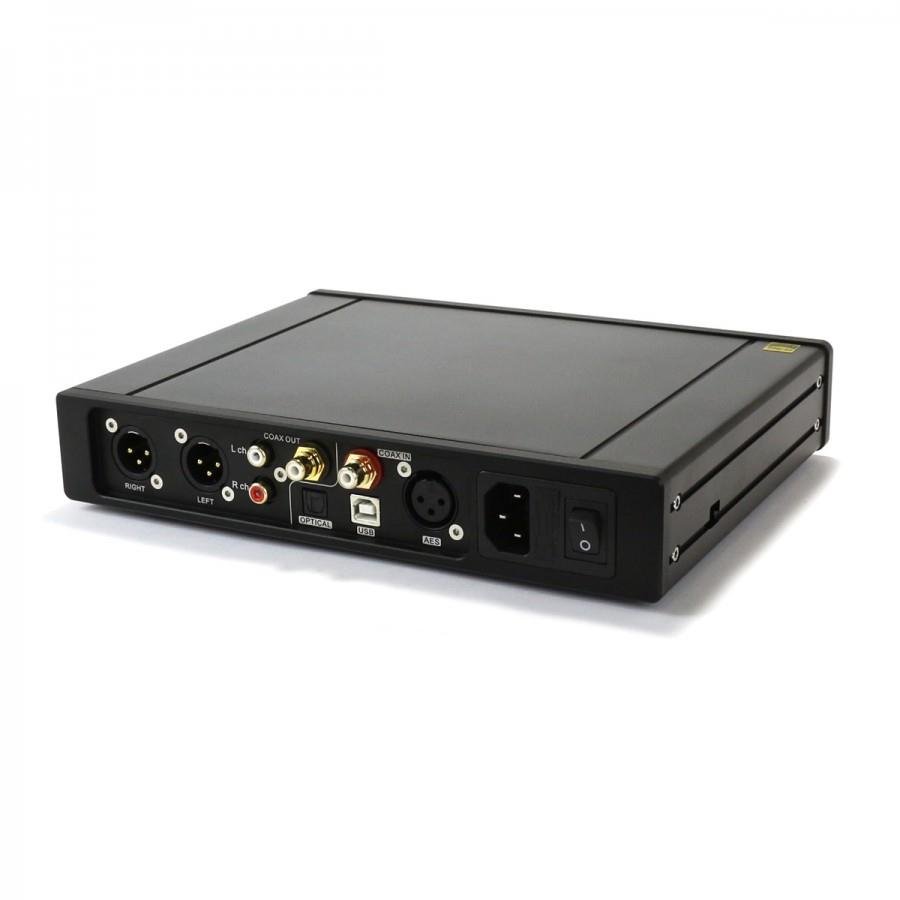

Connectors: Inputs1x USB XMOS16 to 32bit DSD64 to DSD128 (DOP)1x Coaxial75Ω 16 to 24bit 44.1kHz to 192kHz1x Toslink optics16 to 24 bit 44.1kHz to 192kHz1x AES / EBUSymmetrical 110Ω 16 to 24bits 44.1kHz to 192kHz


1x RCA-1x XLR Symmetrical-1x Digital Coaxial75Ω 16 to 24bit 44.1kHz to 192kHz1x Headphone Output6.35mm Jack1x balanced XLR headphone output4 pinsSPECIFICATIONSReport ifgreat noise114dBcrosstalk-130dB at 1kHzHeadphone output level 6.3516VppBalanced headphone output level31VppFixed2V RMSHeadphone output impedance10Ω (20Ω symmetrical)Impedance output DAC line100ΩXLR line output impedance200ΩCoaxial input sensitivity0.5V pp (75Ω)Frequency response20Hz - 20kHz (-0.2dB)POWER HEADPHONE OUTPUTAsymmetrical Jack 6.35mm640mW to 32Ω, 110mW to 300Ω (16 to 300Ω)Symmetrical XLR 4 pins420mW to 300Ω, 210mW to 600Ω (16 to 600Ω)COMPATIBILITYWINDOWS, MACConsumption12WWeight1.95kgDimensions250 x 205 x 50mmAccessories3.5mm Jack, 1x USB Cable, 1x Power Cable, 1x Remote Control

Hifistudio79, voor de beste hifi en betaalbaar!
