MSI PH67S-C43 (B3)

Bewaar
  • Aantal keer bekeken 32x bekeken
  • Datum geplaatst 2 dagen geleden geplaatst

Kenmerken


Levering
Ophalen of verzenden
Staat van het product
Gebruikt
Type advertentie
Aangeboden
Type prijs
Vraagprijs

Omschrijving

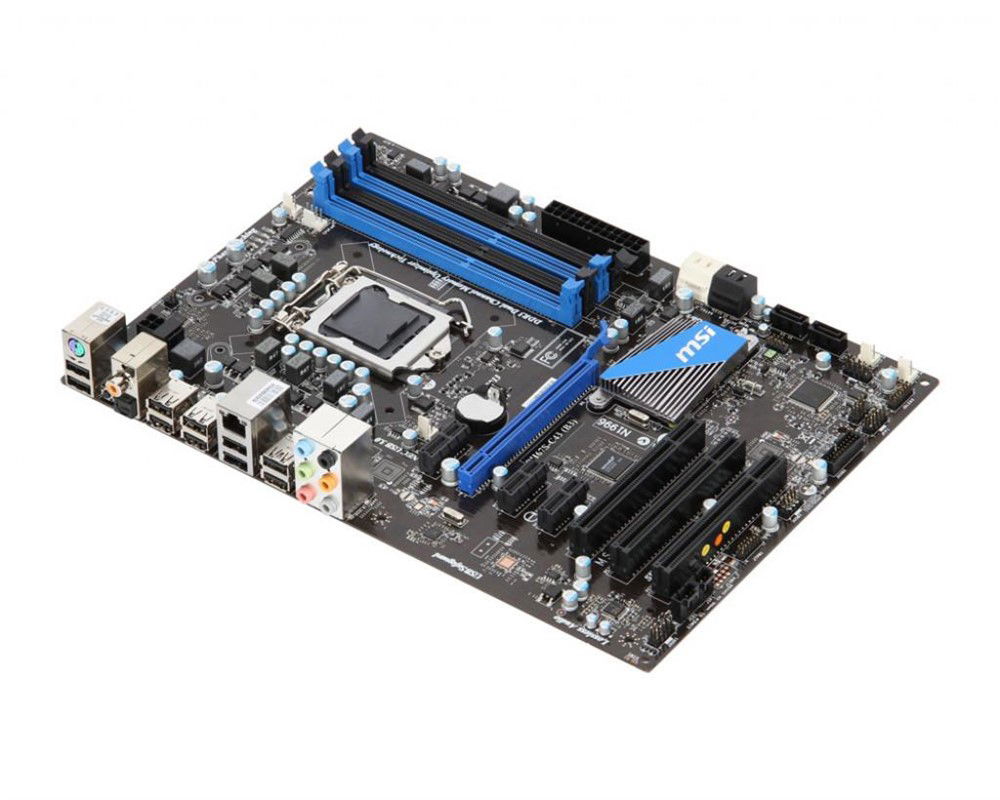

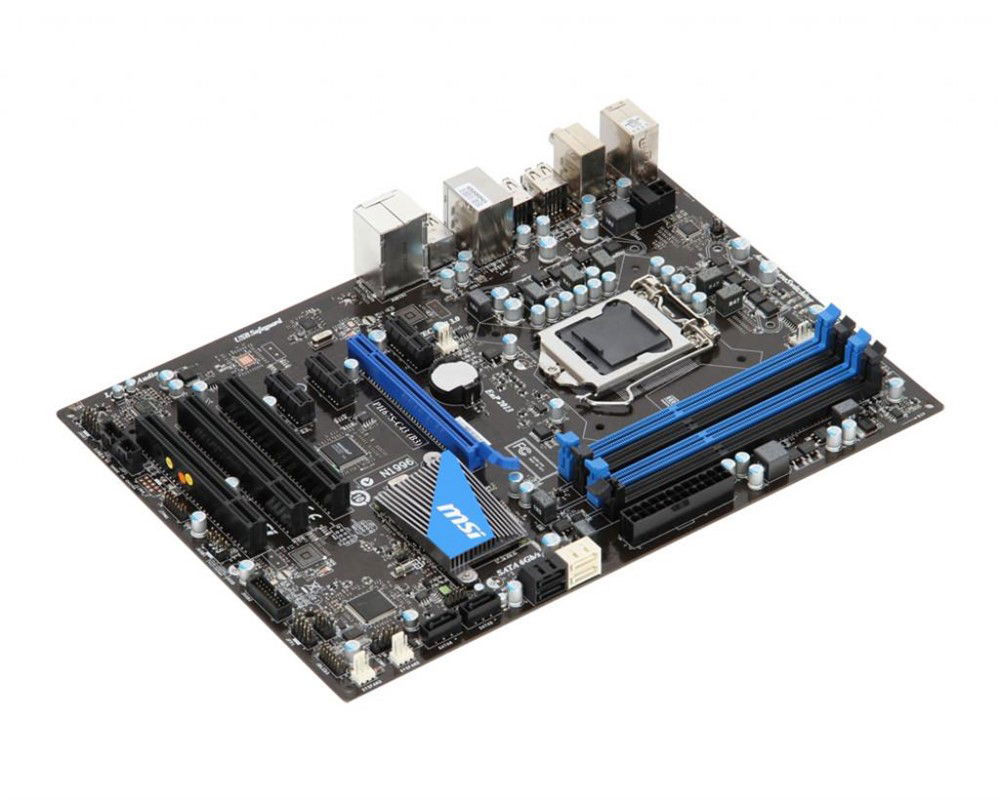

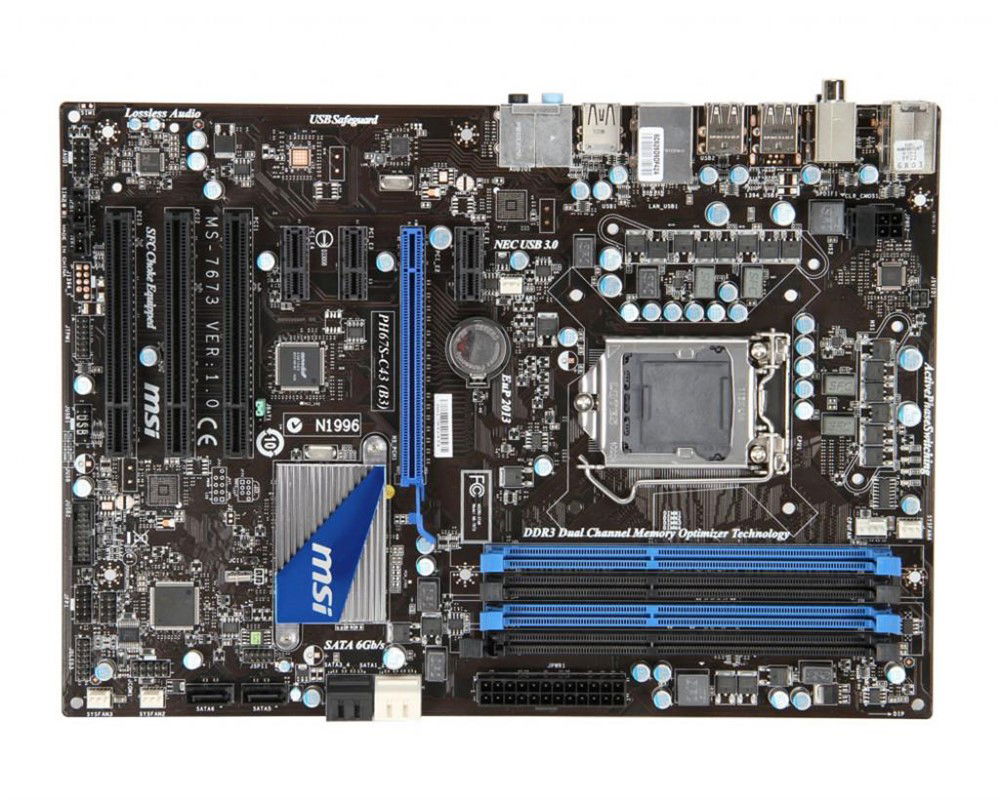

Het MSI PH67S-C43  Socket 1155 moederbord is een ATX moederbord welke is voorzien van 4 DDR3 geheugensloten. De MSI PH67S-C43 Socket 1155 moederbord is een moederbord voorzien van de Intel H67 Chipset, met 4 geheugensloten.



De genoemde prijs is inclusief BTW-Factuur en 6 maanden garantie



Korte Specificaties:

Moederbord – Socket LGA1155 | ATX | Intel H67 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | 3x PCI |  PCI-e 2.0 x1 | PCI-e 2.0 x16 | Sata 3.0



Product: MSI PH67S-C43 Socket 1155;

Categorie: Intel socket 1155 Moederborden;

Merk: MSI;

EAN: 4719072217389

SKU: 7673-041R

Staat: Gebruikt - Bios bijgewerkt naar de laatste versie

Garantie: 6 Maanden





Uitgebreide product specificaties:



CPU

- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package

- 4 + 2 Power Phase Design

- Supports Intel® Turbo Boost 2.0 Technology

- Supports Intel® K-Series CPU

- Supports Hyper-Threading Technology



Chipset

- Intel® H67

- Supports Intel® Small Business Advantage

- Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU



*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.



Memory

- Dual Channel DDR3 memory technology

- 4 x DDR3 DIMM slots

- Supports DDR3 1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 32GB*



*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.



**The highest supported DRAM frequency depends on the CPU you've installed. For detailed CPU specifications, please refer to Intel® official website.



***In order to maximize the system memory, please install 8GB memory module with 16 cells



BIOS

- The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

- The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.



Audio

Chipset integrated by Realtek® ALC892

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

- Meet Microsoft Vista Premium spec



LAN

-  Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.



Slots

- 1 PCI Express gen2 x16 slot

- 3 PCI Express gen2 x1 slots

- 3 32-bit v2.3 master PCI bus slots.

- Support 3.3v/5v PCI bus interface.



SATA

SATAII controller integrated in Intel® H67 (B3) chipset

- Up to 3Gb/s transfer speed.

- Supports four SATAII ports (SATA3~6) by H67 (B3)

- SATA3~6 ports support RAID 0/1/5/10 mode by Intel H67 (B3)



SATAIII controller integrated in Intel® H67 (B3) chipset

- Up to 6Gb/s transfer speed.

- Supports two SATAIII ports (SATA1~2) by H67 (B3)

- SATA1~2 ports support RAID 0/1 mode by Intel H67 (B3)



Connector

- ATX 24-Pin power connector

- 8-pin ATX 12V power connector

- CPU x 1 / System x 4 FAN connectors

- CD-in connector

- Front panel audio connector

- Front panel connector

- 1 x chasis intrusion connector

- 2 x USB 2.0 connectors

- 4 x Serial ATAII connectors

- 2 x Serial ATAIII connectors

- 1 x Clear CMOS jumper

- 1 x SPDIF-out connector

- 1 x TPM module connector

- 1 x Serial port connector



Rear Panel I/O

I/O Panel

- 1 x PS/2 Mouse/Keyboard port

- 10 x USB 2.0 ports

- 1 x Clear CMOS button

- 1 x Coaxial SPDIF port

- 1 x Optical SPDIF port

- 1 x RJ45 LAN Jack

- 1 x 6 in 1 audio jack



Accessories

- I/O Shield



Form Factor

- ATX Form Factor



OS

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit



*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
