Honeywell VoyagerGS 9590 Laser Scanner Hand Held

Bewaar
  • Aantal keer bekeken 190x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

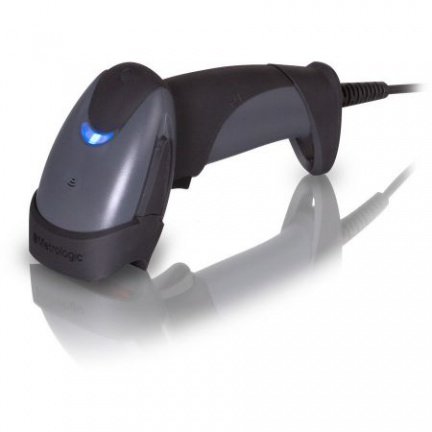

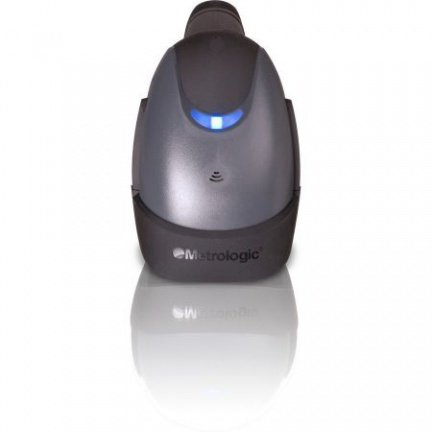

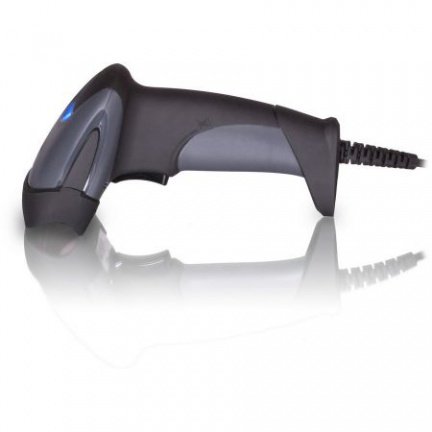

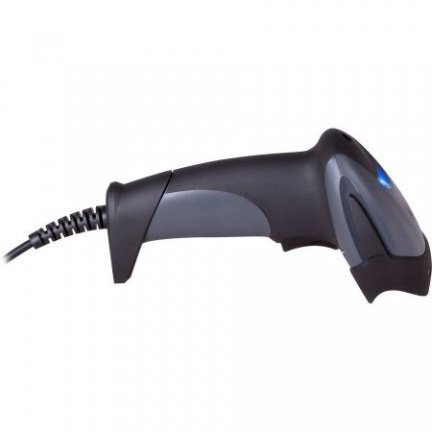

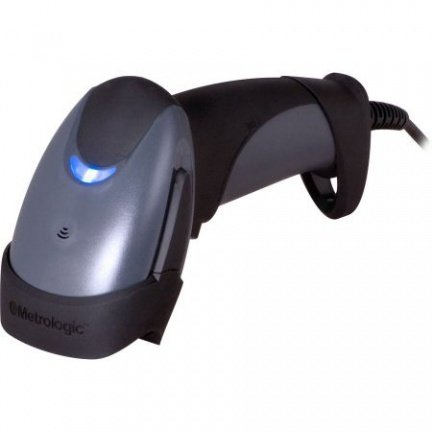

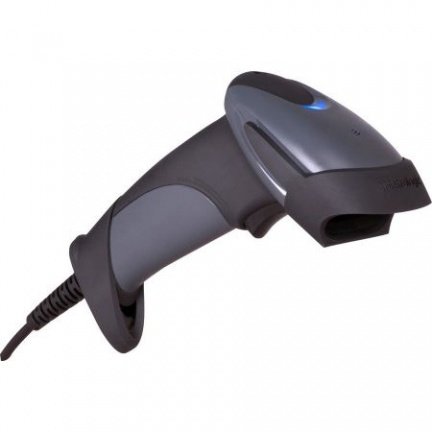

NEW: Honeywell VoyagerGS 9590 with pistol grip!
Honeywell VoyagerGS 9590
Single-line laser scanner with ergonomic pistol grip
Improved scanning speed and productivity: 100 scans per second
Robust housing: reduced downtimes and maintenance costs
Automatic stand switch allows seamless transition from hand scanner to presentation scanner mode
Optional: simultaneous EAS deactivation and barcode decoding
The VoyagerGS 9590 from Honeywell is a single-line laser scanner with the usual Voyager quality and unrivalled ergonomics. The pistol grip design of the Voyager fits perfectly into your hand.
The VoyagerGS 9590 is the latest model of this popular handheld scanner series and offers excellent scanning comfort in a sturdy housing. This single-line laser scanner is the ideal handheld scanner for all standard 1D barcodes. The scanner is perfect for various applications ranging from POS, data collection to medical applications. For improved scanning speed with reliable data transmission, the VoyagerGS 9590 combines the patented automatic infrared activation with an extended depth of field. Users scan the barcodes at a distance of up to 305 mm and transmit the collected data either over the keyboard wedge, serial or USB interface.
The scanner is also equipped with the patented CodeGate technology that allows data transmission with a single press of a button. This is especially useful when users have to select barcodes from a menu list. The correct codes can be confirmed and transmitted with CodeGate.
If the device is used as a presentation scanner, the integrated automatic stand switch will prove to be extremely useful. The VoyagerGS 9590 switches automatically from handheld mode to presentation mode. A space-saving wall mounting bracket is an optional alternative to the flexible stand.
The VoyagerGS 9590 is configured with the barcodes from the user manual, or with the free MetroSet2 software over an RS232 or USB interface. The VoyagerGS 9590 adapts individually to various areas: the VoyagerGS 9590 formats barcode data according to the requirements of your host system.
The VoyagerGS 9590 is a barcode scanner with extra value: the optional EAS function saves time and money – EAS security labels from items are deactivated when scanned.
VoyagerGS 9590 Single-Line Laser Scanner
Honeywell's Voyager GS 9590 single-line laser barcode scanner features an ergonomic design that maximizes comfort and reduces fatigue for customers desiring a trigger-activated laser scanner. The Voyager GS 9590 is a hand-held scanner, with a form factor ideal for a variety of applications, including retail point-of-sale, office automation and healthcare settings.
VoyagerGS 9590 Single-Line Laser Scanner
Honeywell’s VoyagerGSTM 9590 hand-held, single-line laser scanner
increases productivity by offering an aggressive solution for scanning
all standard 1D bar codes.
As the newest addition to the industry-leading Voyager® series, the
VoyagerGS 9590 features a new ergonomic design that maximizes
comfort and reduces fatigue for customers desiring a trigger-activated,
hand-held laser scanner. This new form factor makes the scanner ideal for
a variety of applications, including retail point-of-sale, office automation
and healthcare settings.
Optional integration of an RF EAS antenna allows retailers to save time
and money by simultaneously deactivating EAS tags and decoding bar
codes quickly.
The VoyagerGS ensures speed and accuracy by combining patented
automatic infrared activation technology with an enhanced depth-of-field.
This scanner also includes Honeywell’s patented CodeGate® technology
which easily completes data transmission with a single trigger pull.
The VoyagerGS 9591 is ideal for applications that require high-density
scanning, such as electronics manufacturing. The 9591 delivers quick
and accurate scanning of 1D bar codes as small as 3 mil.
The 9590 can be configured at no cost by using either the MetroSelect®
Single-Line Configuration Guide or MetroSet®2 software via a RS232
or USB interface. The 9590 also has the ability to format bar code data
to meet the specific requirements of host systems.

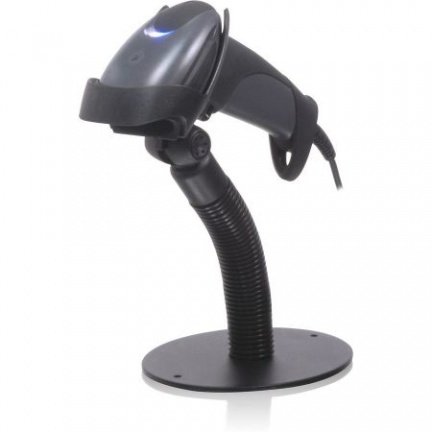

For presentation scanning, Honeywell offers a flexible stand with automatic
in-stand detection technology.
Features
• Ergonomic Design: Fits comfortably into a wide array of hand sizes
• 100 Scans Per Second: Improves scan aggressiveness with increased scanning speed
• Durable Construction: Reduces downtime and service costs
• Automatic In-Stand Detection: Allows seamless transition from hand-held to presentation mode scanning
• Optional Integration of RF EAS Antenna: Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes
VoyagerGS 9590 Technical Specifications
Mechanical
Dimensions (LxWxH) 160 mm x 65 mm x 100 mm (6.3˝ x 2.6˝ x 3.9˝)
Weight 150 g (5.3 oz)
Electrical
Input Voltage 5 VDC ± 0.25 V
Operating Power 650 mW (130 mA at 5 V)
Standby Power 375 mW (75 mA at 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing IP31
Light Levels 4842 Lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 100 scan lines per second
Scan Angle Horizontal: 44°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68°, 52°
Decode Capabilities Reads standard 1D and GS1 DataBar symbologies
Warranty 5 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies please, visit www.honeywellaidc.com/symbologies
9590 Typical Performance*
Narrow Width Depth of Field
5.2 mil 83 mm - 108 mm (3.3˝ - 4.3˝)
7.5 mil 38 mm - 178 mm (1.5˝ - 7.0˝)
10.4 mil 32 mm - 254 mm (1.3˝ - 10.0˝)
13 mil 0 mm - 305 mm (0˝ - 12.0˝)
26 mil 12 mm - 445 mm (0.5˝ - 17.5˝)
*Resolution: 5.0 mil (0.127 mm)
*Performance may be impacted by bar code quality and environmental conditions
9591 Typical Performance*
Narrow Width Depth of Field
4.0 mil 25 mm - 45 mm (1.0˝ - 1.8˝)
5.2 mil 22 mm - 55 mm (1.0˝ - 2.2˝)
7.5 mil 20 mm - 64 mm (0.8˝ - 2.5˝)
10.4 mil 0 mm - 72 mm (0˝ - 2.8˝)
13 mil 0 mm - 100 mm (0˝ - 4.0˝)
*Resolution: 3.0 mil (0.075 mm)
*Performance may be impacted by bar code quality and environmental conditions
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen: / All models:
-Honeywell VoyagerGS 9590, 1D, kabel (USB), donkergrijs
(ms9590usw - MK9590-60A38-A)
Voordelig geprijsde demo/gebruikt apparaat beschikbaar van dit artikel
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, IP31, incl.: kabel (USB), kleur: donkergrijs
-Honeywell VoyagerGS 9590, 1D, multi-IF, licht grijs
(ms9590 - MS9590-106-7)
Voordelig geprijsde demo/gebruikt apparaat beschikbaar van dit artikel
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, RS485, multi interface (RS232, USB, IBM), IP31, apart bestellen, interface kabel, kleur: licht grijs
-Honeywell VoyagerGS 9590, 1D, EAS, kabel (RS232), donkergrijs (ms9590easrsw - MK9590-60C14-EAS)
handscanner, retail, 1D, laser, EAS deactivering, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, IP31, incl.: kabel (RS232), voeding (EU), kleur: donkergrijs
-Honeywell VoyagerGS 9590, 1D, EAS, kabel (USB), donkergrijs
(ms9590eusw - MK9590-60A38-A-EAS)
handscanner, retail, 1D, laser, EAS deactivering, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, IP31, incl.: kabel (USB, rechte), kleur: donkergrijs
-Honeywell VoyagerGS 9590, 1D, PS/2 (KBW), kabel, donkergrijs (ms9590kbwkit - MK9590-61A47)
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, PS/2 (KBW), IP31, incl.: kabel (PS/2), voeding, tafelmontage, kleur: donkergrijs
-Honeywell VoyagerGS 9590, 1D, multi-IF, donkergrijs
(ms9590s - MS9590-106)
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, RS485, multi interface (RS232, USB, IBM), IP31, apart bestellen, interface kabel, kleur: donkergrijs
-Honeywell VoyagerGS 9590, 1D, EAS, kabel (USB), donkergrijs (ms9590usweas - MK9590-61A38-A-EAS)
handscanner, retail, 1D, laser, EAS deactivering, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, IP31, incl.: kabel (USB, rechte), tafelmontage, kleur: donkergrijs
-Honeywell VoyagerGS 9590, 1D, kabel (USB), donkergrijs
(ms9590uswkit - MK9590-61A38-A)
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, IP31, incl.: kabel (USB), tafelmontage, kleur: donkergrijs
-Honeywell VoyagerGS 9590, 1D, KBW, licht grijs (ms9590w1 - MS9590-47-7)
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, KBW, IP31, apart bestellen, interface kabel, licht grijs
-Honeywell VoyagerGS 9591, 1D, HD, kabel (USB), donkergrijs
(ms9591usw - MK9591-60A38)
handscanner, retail, 1D, laser, high density , IR barcode sensor , CodeGate function, 0-30cm leesafstand, 100 scans/s, IP31, incl.: kabel (USB), kleur: donkergrijs
Garantie: Warranty:
60 Maanden, 60 Months
Uitbreiding garantie met, Extended warranty with::
-PE Service +8%
Beschikbaar toebehoren: Available accessories:
-KBW cable, black (hla308 - 53-53002-3)
KBW cable (rotated) for Honeywell Voyager and Orbit, 2.1 m, colour: black
-Honeywell USB cable, 4 m (hla341 - 53-53283-N-3)
USB cable for Honeywell 95xx (spiral), 4 m
-Honeywell wall-mount for MS9590, black (hw9590wall - 46-00885-2)
wall-mount for MS9590, black
-Honeywell KBW-cable (ms9590kbwcab - 53-53802-N-3)
KBW-cable for 9590/9590i, 9.5´, coiled, black
-Stand for MS9590GS (ms9590sta3 - 46-00885-3)
Stand: black, wall mount/desktop and weighted base for MS9590 VoyagerGS
-Honeywell USB cable (mskabusb4 - 53-53809-N-3)
USB cable (crossover) for Honeywell 9590
-Honeywell USB Cable, 4,9m (mskabusb49m - 53-53809-N-3-16)
USB Cable for Honeywell 95xx (coiled), 4,9m
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
In addition to our extensive offer, we also provide the following versions and accessories of this product. Contact us.
Type Art.nr.fabr.
-Scanner-only: dark gray, RS232, Installation & User´s Guide MS9590-14
-Scanner-only: light gray, RS232, Installation & User´s Guide MS9590-14-7
-Scanner-only: dark gray, KBW, Installation & User´s Guide MS9590-47
-KBW Kit: high-density, dark gray scanner (MS9591-47), coiled KBW cable (53-53802-N-3) and documentation MK9591-60A47
-RS232 Kit: high-density, dark gray scanner (MS9591-14), EU power supply (46-00526), coiled RS232 PowerLink cable (53-53000x-3) and documentation MK9591-60C14
-Cable: USB, black, 12V locking, 2.9m (9.5´), coiled, host power 53-53813-N-3
Prijs op aanvraag! Price on request!
