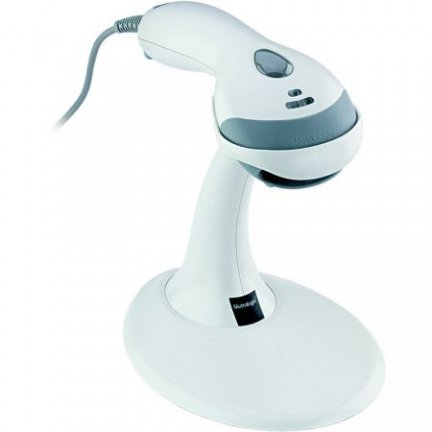

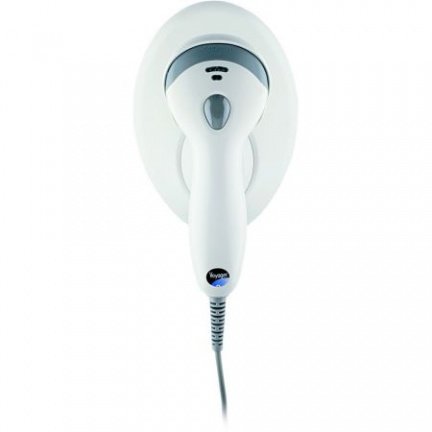

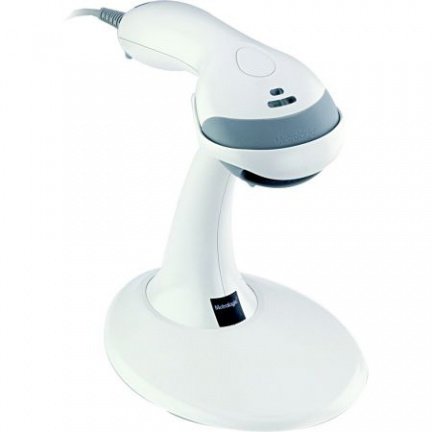

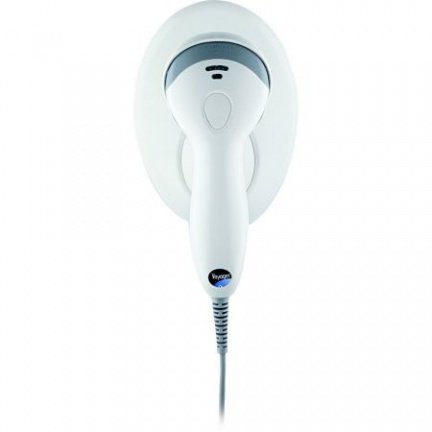

Honeywell Voyager 9540, 1D, RS232, wit handscanner

Bewaar
  • Aantal keer bekeken 176x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

Honeywell Voyager 9540, 1D, RS232, wit (ms9540lg - MS9540-41)
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-20cm leesafstand, 72 scans/s, RS232, apart bestellen, interface kabel, voeding, kleur: wit
Handheld laser scanner for every application Honeywell Voyager 9540
Ergonomic laser scanner for all barcodes
Scanning range 0-20 cm at 72 scans/sec.
Very fast decoding, optional simultaneous EAS deactivation
Aggressive laser lines, self-activating or with CodeGate
Futuristic design, can be used as both handheld and stand scanner
The model Voyager 9540 Voyager extends the various features of the successful Voyager 9520 model even further. Basically, the Voyager 9540 has the same specifications as the slightly cheaper Voyager 9520 model. The elegant housing contains a laser engine that scans barcodes fast and error-free at 72 scans per second. The Voyager 9540 also has a programmable decoder that is responsible for decoding and transferring barcodes to the computer.
In addition to the basic features that also come with the Voyager 9520, the Voyager 9540 implements the patented CodeGate function for convenient reading of barcodes. This unique scanning technology makes barcode scanning for most users not only easier but also safer: whenever a barcode comes into scanning range, the barcode sensor activates the scanner automatically. Without CodeGate, scanned barcodes will be decoded immediately and sent to the Computer automatically. This is certainly practical and convenient, but not always the best for all applications: while scanning several barcodes from lists at a time, incorrect barcodes may be submitted easily. For this reason Honeywell has designed the CodeGate button for the Voyager 9540. The button is ergonomically situated on top of the scanner’s housing and can be conveniently operated by thumb. If the CodeGate function is activated, the scanner still activates itself automatically and scans the barcode. The barcode information, how­ever, is only transferred to the computer when the user presses the CodeGate button to confirm that it is the correct barcode. This function always comes in handy when it is important that only correct barcodes are transferred. CodeGate scanners are not only useful for menu scanning from lists. If packaging contains more than just one barcode (e.g. with mobile phones, electronic products, medical products) a CodeGate scanner is indispensable. The Voyager 9540 CodeGate function can be activated or deactivated easily by scanning a control barcode. Without ­CodeGate the Voyager 9540 is operated like the Voyager 9520.
Honeywell scanners with keyboard wedge interface usually work properly with the power supplied by the PC keyboard port. Some PC mainboards do not supply sufficient power for that. In this case, please order the additional power supply »ms9520nt«, compatible with all Honeywell keyboard wedge scanners.
Voyager® 95X0 Series of Single-Line Laser Scanners
Honeywell's Voyager 9520 and VoyagerCG 9540 hand-held, single-line laser scanners feature patented automatic infrared activation and can decode all standard 1D barcodes, including GS1 DataBar™. The VoyagerCG hand-held barcode scanner also includes CodeGate® technology for menu scanning applications. CodeGate zeroes in on the desired code and completes barcode data transmission with the push of a single button.
MS9540 VoyagerCG
Single-Line Laser Scanner
Honeywell’s MS9540 VoyagerCG® hand-held, single-line laser scanner
offers aggressive scanning of all standard 1D bar codes.
The Voyager series of hand-held, single-line scanners have united form with function in becoming the industry benchmark for value and performance.
This sleek scanner features patented automatic infrared activation and
decodes all standard 1D bar codes, including GS1 DataBarTM (formerly
known as RSS codes).
VoyagerCG also includes patented CodeGate® technology which allows the user to easily target the desired bar code and complete data transmission with the press of a single button.
For presentation scanning, Honeywell offers a stand with automatic
in-stand detection technology
The MS9541 VoyagerHDTM is ideal for applications that require highdensity
scanning, delivering quick and accurate scanning of 1D bar codes as small as 3 mil.
Expand scanner functionality by purchasing the MS9544 VoyagerPDFTM,
which delivers aggressive scanning of all standard 1D bar codes including PDF.
For more information on the MS9540 VoyagerCG single-line laser scanner, please visit www.honeywell.com/aidc
Features
• Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand
• 650-nanometer laser: High-visibility laser allows user to place laser line on selected bar code
• CodeGate: Zero in on desired code and complete data transmission with the push of a single button—ideal for menu scanning applications
• Flash ROM: Future proof POS system with free firmware updates via MetroSet®2 software and standard PC
• Parsing (Data Editing): Format bar code data to meet host system’s specific requirements
MS9540 VoyagerCG Technical Specifications
Operational
Light Source Visible Laser Diode 650 nm ± 10 nm
Visual Indicators:
Green = ready to scan; Red = good read; Yellow = automatic scanning
Host System Interfaces:
USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
Mechanical
Dimensions (LxWxH) 198 mm x 78 mm x 56 mm (7.8˝ x 3.1˝ x 2.2˝)
Weight 149 g (5.3 oz)
Electrical
Input Voltage 5 VDC ± 0.25 V
Operating Power (typical) 825 mW (165 mA at 5 V)
Standby Power (typical) 600 mW (120 mA at 5 V)
DC Transformers Class 2: 5.2 VDC at 1 A
Laser Class Class 1: IEC60825-1, EN60825-1
EMC FCC Part 15, ICES-003, EN55022 Class B
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux (450 foot-candles)
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68°, 52°
Decode Capabilities:
Reads standard 1D and GS1 DataBar symbologies. PDF417 reading available in MS9544 only. Visit www.honeywell.com/aidc/symbologies for details.
Warranty 5 year factory warranty
MS9540 / MS9544 Typical Performance*
Narrow Width Depth of Field
5.2 mil 13 mm - 51 mm (0.5˝ - 2.0˝)
7.5 mil 0 mm - 127 mm (0˝ - 5.0˝)
10.4 mil 0 mm - 165 mm (0˝ - 6.5˝)
13 mil 0 mm - 203 mm (0˝ - 8.0˝)
21 mil 25 mm - 254 mm (1.0˝ - 10.0˝)
*Resolution: 5 mil (0.127 mm)
*Performance may be impacted by bar code quality and environmental conditions
MS9541 Typical Performance*
Narrow Width Depth of Field
4.0 mil 6 mm - 38 mm (0.3˝ - 1.5˝)
6.8 mil 0 mm - 76 mm (0˝ - 3.0˝)
10.4 mil 0 mm - 108 mm (0˝ - 4.3˝)
13 mil 0 mm - 140 mm (0˝ - 5.5˝)
*Resolution: 3 mil (0.076 mm)
*Performance may be impacted by bar code quality and environmental conditions
For more information: www.honeywell.com/aidc
Honeywell Security & Data Collection
Honeywell Scanning & Mobility
90 Coles Road
Blackwood, NJ 08012
856.228.8100
www.honeywell.com
Alle modellen: / All models:
-Honeywell Voyager 9540, 1D, RS232, wit (ms9540lg - MS9540-41)
handscanner, retail, 1D, laser, IR barcode sensor , CodeGate function, 0-20cm leesafstand, 72 scans/s, RS232, apart bestellen, interface kabel, voeding, kleur: wit
Garantie: Warranty:
60 Maanden, 60 Months
Uitbreiding garantie met, Extended warranty with::
-PE Service +8%
Beschikbaar toebehoren: Available accessories:
-KBW cable, black (hla308 - 53-53002-3)
KBW cable (rotated) for Honeywell Voyager and Orbit, 2.1 m, colour: black
-Honeywell cable (hla332 - 53-53109-3)
Cable for Honeywell 9540, Y-07
-Honeywell USB cable (hla338 - 53-53235-N-3)
USB cable, spiral, length: 2.9 m, colour: black, for Voyager/Fusion/ Focus
-Honeywell USB cable, 4 m (hla341 - 53-53283-N-3)
USB cable for Honeywell 95xx (spiral), 4 m
-Honeywell KBW cable, spiral (hla342 - 53-53020-3)
Powered KBW cable (spiral) for Honeywell Voyager, Focus and Fusion, 3 m, 12V
-Honeywell power supply, EU (ms9520nt - 46-00526)
power supply, EU, 1.0A ar 5.2VDC, 90-255VAC at 50-60Hz46
-9 m-cable for MS9520 (ms9mkab - 53-53119-3)
27 ft (9 m) RS 232 cable for MS9520, MS9540, MS9544 (RS232 version)
-Scan stand for MS9520/9540 black (ms95stands - 46-46128-3)
Additional scan stand, black. Attention! One scan stand is already included with any MS9520/MS9540. Use this article as an additional stand or for replacement.
-Scan stand for MS9520/9540 white (ms95stand - 46-46128)
Additional scan stand, white. Attention! One scan stand is already included with any MS9520/MS9540. Use this articel as an additional stand or for replacement
-MS USB connection cable (mskabusb2 - 53-53235-3)
Original Honeywell USB connection cable plus power for MS9520/9540/9544 with USB-Interface
-Honeywell cable, RS232, black (ms59000 - 59-59000-3)
Connection cable, RS232 with Power-Link connector, straight, with bend-protection on the scanner side, colour: black
-Honeywell wall-mount for 95xx, gray (ms9520wall - 46-46508)
Wall mount suitable for 9520/9540 series, colour: gray
-Honeywell wall-mount for 95xx, black (ms9520wallsw - 46-46508-3)
Wall mount suitable for 9520/9540 series, colour: black
-Honeywell desktop holder (ms95x0sta - 46-00274)
Desktop holder for Honeywell Voyager 9520/40
-Honeywell power supply, UK (msntuk6 - 46-00870)
Honeywell UK power supply, 5.2V, 1.0A, 90-255VAC
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
In addition to our extensive offer, we also provide the following versions and accessories of this product. Contact us.
Type Art.nr.fabr.
-Scanner-only: black, KBW, Installation & User´s Guide MS9540-47-3
-RS232 Kit: black scanner w/ EAS (MS9540-14-3/EAS), stand (46-46128 and 46-46351), straight RS232 EAS PowerLink cable (59-59000x-E-3) and documentation MK9540-37A14/EAS
-Scanner-only: light gray, low speed USB, Installation & User´s Guide MS9540-38
-RS232 Kit: light gray scanner w/ EAS (MS9540-14/EAS), stand (46-46128 and 46-46351), straight RS232 EAS PowerLink cable (59-59000x-E-3) and documentation MK9540-77A14/EAS
-Scanner-only: black, low speed USB, Installation & User´s Guide MS9540-38-3
-Scanner-only: light gray, laser emulation, Installation & User´s Guide MS9540-00
-Scanner: light gray, USB Full Speed MS9540-40
-Scanner-only: black, laser emulation, Installation & User´s Guide MS9540-00-3
-Scanner-only: black, full speed USB, Installation & User´s Guide MS9540-40-3
-Scanner-only: light gray, IBM 46xx RS485, Installation & User´s Guide MS9540-11
-Cable: KBW, black, 2.9m (9.5?), coiled, host power 53-53002-N-3
Prijs op aanvraag! Price on request!
