Honeywell Voyager 9520 1D kabel USB licht grijs hand s…

Bewaar
  • Aantal keer bekeken 166x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

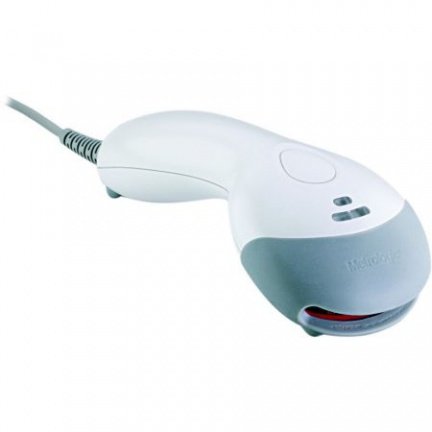

Honeywell Voyager 9520, 1D, kabel (USB), licht grijs (ms9520u - MK9520-77A38)
handscanner, retail, 1D, laser, IR barcode sensor , 0-20cm leesafstand, 72 scans/s, incl.: kabel (USB), tafelmontage, kleur: licht grijs
Honeywell Voyager 9520 Handheld laser scanner for every application
Ergonomical laser scanner for all barcodes
Scanning range 0-20 cm, very fast decoding
Aggressive, self-activating laser line; with barcode sensor
Futuristic design, can be used as both handheld and stand scanner
Optional simultaneous EAS deactivation and barcode decoding
The Voyager 9520 is Honeywell’s best-selling hand-held scanner. Its popularity is based on particularly reason­able prices, high scanning efficiency and a universal field of possible applications. With its futuristic housing and clever arrangement options the scanner excels everywhere – at the cash desk as well as in the warehouse, workshop or laboratory, thus making it fit for any application that requires scanning of barcodes.
The integrated laser unit recognises barcodes even from twenty centi­metres distance, making it very convenient for users to use. The scanner does not have to touch the barcode - even barcodes on warped surfaces can be scanned without problems. The projected laser beam is clearly visible on the object surface for indicating the exact scanning location.
The included scanning stand turns the handheld reader into a stand scanner for desks and counters. Instead of holding the scanner onto the barcode, the user just holds the scan object right in front of the scanner. An infrared sensor activates the device automatically to ensure easy operation with just one hand. Then the barcode is scanned at 72 scans per second, automatically decoded and transferred to the computer.
The integrated decoder’s diverse options make the scanner suitable for all possible hardware conditions. In a matter of seconds users can adjust various options, such as field separators, transfer speed and interface parametres. Programming these functions is made easy with included barcode tables, or with a few mouse clicks in the user-friendly software interface. For programming on a computer, a serial cable is required.
Based on the standard Voyager 9520 version, Honeywell offers further models, to always be able to provide you with the right scanner to meet you needs. An example is the Voyager 9521 HD – identical to the performance of its basic model, it is capable of scanning high density barcodes in addition to standard 1D barcodes and RSS codes. Such barcodes (minimum module size of 0.076 mm or 3.0 mil) become necessary when extremely small barcodes have to be scanned, for instance on jewellery, circuit boards, or electronic components.
Honeywell scanners using the keyboard wedge interface usually work properly with the power supplied by the PC keyboard port. However, some PC mainboards do not supply sufficient power, in which case simply order the additional power supply »ms9520nt«, compatible with all Honeywell keyboard wedge scanners.
Voyager® 95X0 Series of Single-Line Laser Scanners
Honeywell's Voyager 9520 and VoyagerCG 9540 hand-held, single-line laser scanners feature patented automatic infrared activation and can decode all standard 1D barcodes, including GS1 DataBar™. The VoyagerCG hand-held barcode scanner also includes CodeGate® technology for menu scanning applications. CodeGate zeroes in on the desired code and completes barcode data transmission with the push of a single button.
MS9520 Voyager
Single-Line Laser Scanner
Honeywell’s MS9520 Voyager® hand-held, single-line laser scanner
offers aggressive scanning of all standard 1D bar codes.
The Voyager series of hand-held, single-line bar code scanners have
united form with function in becoming the industry benchmark for value
and performance.
This sleek scanner features patented automatic infrared activation and
decodes all standard 1D bar codes, including GS1 DataBarTM (formerly
known as RSS codes).

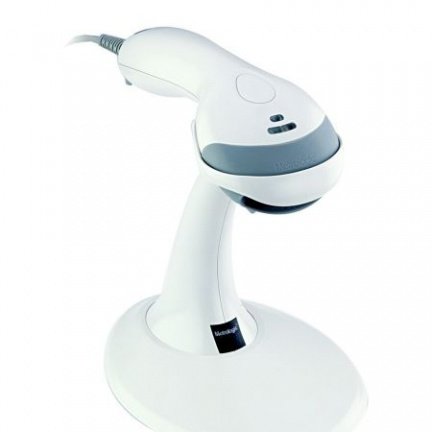

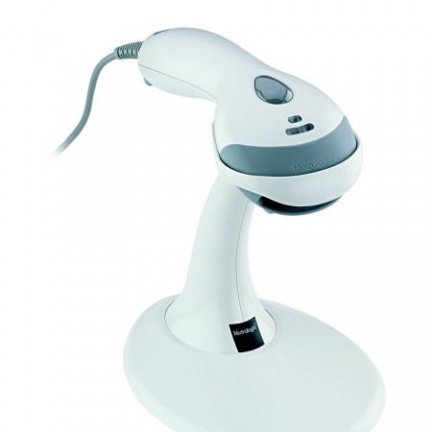

For presentation scanning, Honeywell offers a stand with automatic
in-stand detection technology.
The MS9521 VoyagerHDTM is ideal for applications that require highdensity
scanning, delivering quick and accurate scanning of 1D bar codes as small as 3 mil.
Expand scanner functionality by purchasing the MS9524 VoyagerPDFTM,
which delivers aggressive scanning of all standard 1D bar codes,
including PDF.
For more information on the MS9520 Voyager single-line laser scanner,
please visit www.honeywell.com/aidc
Features
• Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand
• 650-nanometer laser: High-visibility laser allows user to place laser line on selected bar code
• Flash ROM: Future proof POS system with free firmware updates via MetroSet®2 software and standard PC
• Parsing (Data Editing): Format bar code data to meet host system’s specific requirements
MS9520 Voyager Series Technical Specifications
Operational
Light Source Visible Laser Diode 650 nm ± 10 nm
Visual Indicators:
Green = ready to scan; Red = good read; Yellow = automatic scanning
Host System Interfaces:
USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
Mechanical
Dimensions (LxWxH) 198 mm x 78 mm x 56 mm (7.8˝ x 3.1˝ x 2.2˝)
Weight 149 g (5.3 oz)
Electrical
Input Voltage 5 VDC + 0.25 V
Operating Power (typical) 825 mW (165 mA at 5 V)
Standby Power (typical) 600 mW (120 mA at 5 V)
DC Transformers Class 2: 5.2 VDC at 1 A
Laser Class Class 1: IEC60825-1, EN60825-1
EMC FCC Part 15, ICES-003, EN55022 Class B
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5’) drops
Environmental Sealing Sealed to resist airborne particulate contaminents
Light Levels 4842 Lux (450 foot-candles)
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68°, 52°
Decode Capabilities:
Reads standard 1D and GS1 DataBar symbologies. PDF417 reading available in MS9524 only.
Visit www.honeywell.com/aidc/symbologies for details.
Warranty 5 year factory warranty
MS9520 / MS9524 Typical Performance*
Narrow Width Depth of Field
5.2 mil 13 mm - 51 mm (0.5˝ - 2.0˝)
7.5 mil 0 mm - 127 mm (0˝ - 5.0˝)
10.4 mil 0 mm - 165 mm (0˝ - 6.5˝)
13 mil 0 mm - 203 mm (0˝ - 6.5˝)
21 mil 25 mm - 254 mm (0˝ - 6.5˝)
*Resolution: 5 mil (0.127 mm)
*Performance may be impacted by bar code quality and environmental conditions
MS9521 Typical Performance*
Narrow Width Depth of Field
4.0 mil 6 mm - 38 mm (0.3˝ - 1.5˝)
6.8 mil 0 mm - 76 mm (0˝ - 3.0˝)
10.4 mil 0 mm - 108 mm (0˝ - 4.3˝)
13 mil 0 mm - 140 mm (0˝ - 5.5˝)
*Resolution: 3 mil (0.076 mm)
*Performance may be impacted by bar code quality and environmental conditions
For more information:
www.honeywell.com/aidc
Honeywell Security & Data Collection
Honeywell Scanning & Mobility
90 Coles Road
Blackwood, NJ 08012
856.228.8100
www.honeywell.com
Alle modellen: / All models:
-Honeywell Voyager 9520, 1D, kabel (USB), licht grijs
(ms9520u - MK9520-77A38)
handscanner, retail, 1D, laser, IR barcode sensor , 0-20cm leesafstand, 72 scans/s, incl.: kabel (USB), tafelmontage, kleur: licht grijs
Garantie: Warranty:
60 Maanden, 60 Months
Uitbreiding garantie met, Extended warranty with::
-PE Service +8%
Beschikbaar toebehoren: Available accessories:
-KBW cable, black (hla308 - 53-53002-3)
KBW cable (rotated) for Honeywell Voyager and Orbit, 2.1 m, colour: black
-Honeywell USB cable (hla338 - 53-53235-N-3)
USB cable, spiral, length: 2.9 m, colour: black, for Voyager/Fusion/ Focus
-Honeywell USB cable, 4 m (hla341 - 53-53283-N-3)
USB cable for Honeywell 95xx (spiral), 4 m
-Honeywell KBW cable, spiral (hla342 - 53-53020-3)
Powered KBW cable (spiral) for Honeywell Voyager, Focus and Fusion, 3 m, 12V
-Honeywell power supply, EU (ms9520nt - 46-00526)
power supply, EU, 1.0A ar 5.2VDC, 90-255VAC at 50-60Hz46
-9 m-cable for MS9520 (ms9mkab - 53-53119-3)
27 ft (9 m) RS 232 cable for MS9520, MS9540, MS9544 (RS232 version)
-Scan stand for MS9520/9540 black (ms95stands - 46-46128-3)
Additional scan stand, black. Attention! One scan stand is already included with any MS9520/MS9540. Use this article as an additional stand or for replacement.
-Scan stand for MS9520/9540 white (ms95stand - 46-46128)
Additional scan stand, white. Attention! One scan stand is already included with any MS9520/MS9540. Use this articel as an additional stand or for replacement
-MS USB connection cable (mskabusb2 - 53-53235-3)
Original Honeywell USB connection cable plus power for MS9520/9540/9544 with USB-Interface
-Honeywell cable, RS232, black (ms59000 - 59-59000-3)
Connection cable, RS232 with Power-Link connector, straight, with bend-protection on the scanner side, colour: black
-Honeywell wall-mount for 95xx, gray (ms9520wall - 46-46508)
Wall mount suitable for 9520/9540 series, colour: gray
-Honeywell wall-mount for 95xx, black (ms9520wallsw - 46-46508-3)
Wall mount suitable for 9520/9540 series, colour: black
-Honeywell desktop holder (ms95x0sta - 46-00274)
Desktop holder for Honeywell Voyager 9520/40
-Honeywell power supply, UK (msntuk6 - 46-00870)
Honeywell UK power supply, 5.2V, 1.0A, 90-255VAC
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
In addition to our extensive offer, we also provide the following versions and accessories of this product. Contact us.
Type Art.nr.fabr.
-Scanner-only: light gray, IBM 46xx RS485, Installation & User´s Guide MS9520-11
-Scanner-only: black, IBM 46xx RS485, Installation & User´s Guide MS9520-11-3
-Scanner-only: black, full speed USB, Installation & User´s Guide MS9520-40-3
-Scanner-only: black, RS232, Installation & User´s Guide MS9520-41-3
-Scanner-only: light gray, KBW, Installation & User´s Guide MS9520-47
-Cable: KBW, black, 2.9m (9.5?), coiled, host power 53-53002-N-3
Prijs op aanvraag! Price on request!
