Honeywell Voyager 1250g, 1D, multi-IF, wit handscanner…

  • Aantal keer bekeken 128x bekeken
  • Datum geplaatst 8 jaar geleden geplaatst


Niet van toepassing
Staat van het product
Type advertentie
Type prijs
Op aanvraag


handscanner, retail, 1D, laser, CodeGate function, 0-44cm leesafstand, 100 scans/s, multi interface (RS232, KBW, USB), IP41, apart bestellen, interface kabel, kleur: wit

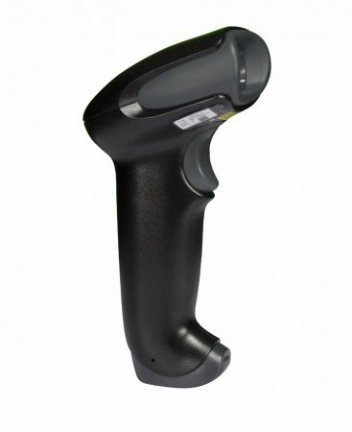

Honeywell Voyager 1250g
Ergonomic hand and presentation scanner for high productivity
Reliable hand and presentation scanner with professional scan engine
Also reads poorly printed and damaged barcodes from up to 58 cm
Highly ergonomic and robust design (IP41); Remote MasterMind compatible
Long warranty period of 5 years offers investment security
Multi-interface: USB, KBW and RS232 in one device
Honeywell has expanded its series of high performing linear scanners with its Voyager 1250g, a light and highly ergonomic hand scanner. It inherited its single line laser scan engine from the successful 1200g and boasts very impressive reading properties. This scanner recognises practically all linear barcodes, even if they are poorly printed or damaged. With the 1250g, Honeywell delivers a professional out-of-the-box solution with automatic configuration and interface recognition, for minimal installation effort.
Its design has been optimised for scanning-intensive operation. Plus, it guarantees a high throughput while preventing user fatigue. At a distance of up to 58 cm, it can read even hard to reach barcodes and scans them at up to a minimum printing contrast of 20%. With its optional stand, it automatically changes its operation mode. When its CodeGate function is activated, the scanner will independently read barcodes. The information it collects will only be transferred once the user presses the CodeGate button, to confirm correct barcode readings.
Voyager® 1250g Single-Line Laser Scanner
Honeywell’s Voyager 1250g single-line laser barcode scanner is simple to set up and provides aggressive reading of linear barcodes. The 1250g barcode scanner is capable of reading barcodes up to 23 inches away, reducing reach-related fatigue and improving employee comfort. For users that require hands-free scanning, an easy-to-assemble stand increases throughput by incorporating automatic in-stand detection. Features optimized laser scanning technology to read poorly printed or damaged barcodes.
Voyager 1250g Single-Line Laser Scanner
Building on the legacy of the world-renowned Voyager™ series of
scanners, Honeywell’s Voyager 1250g single-line laser scanner
provides a superior out-of-box experience and aggressive reading
of linear bar codes, including larger bar codes up to 23 inches away.
Optimized for fast scanning of linear bar codes, including poorly
printed and damaged codes, the Voyager 1250g allows enterprises
to minimize manual data entry, leading to increased productivity and
reduction in errors. The ability to read distant bar codes improves
worker comfort as cashiers reach to scan items in the bottom of
carts, and inventory takers scan out-of-reach products on shelves.
This plug and play scanner incorporates a multi-interface design with
automatic interface detection. Simply plug the cable into the host
system and the Voyager 1250g will automatically configure itself to
the appropriate interface, shortening the installation process. For

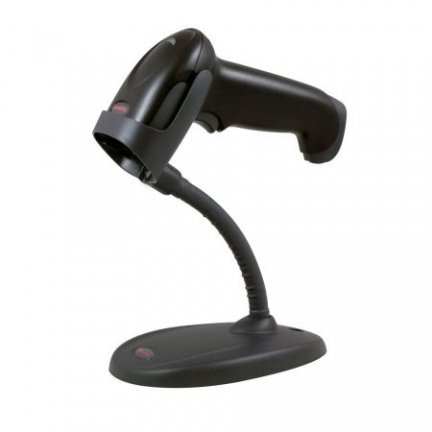

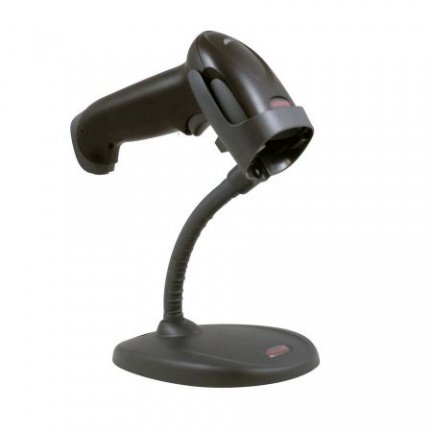

users who require hands-free scanning, the stand can be assembled
quickly and easily.
Honeywell offers Service Made Simple™ service plans and
Remote MasterMind™ for Scanning software to help lower the
total cost of ownership for Voyager 1250g users. Service Made
Simple is Honeywell’s affordable solution for customers who
require easy, hassle-free repair service for their scanners, and
Remote MasterMind for Scanning provides turnkey remote device
management to easily manage and track usage of installed devices.
Voyager 1250g provides superior scan performance and extended
depth of field, which combine to deliver an ergonomic solution for
scan-intensive applications.
• Extended Depth of Field: Scans out-of-reach items with ease and allows users to scan 13 mil bar codes from as far away as 17.6 inches (447 mm)
• Automatic Interface Detection: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with
automatic interface detection and configuration
• CodeGate® Technology: Enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu
scanning applications
• Superior Out-of-Box Experience: Simplifies set up with quick and easy stand assembly; automatic in-stand detection and configuration; increases throughput with true object detection
• Ergonomic Design: Fits comfortably in most hands, reducing user fatigue in scan-intensive applications
• Remote MasterMind™ Ready: Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks
usage of installed devices
Voyager 1250g Technical Specifications
Dimensions (LxWxH) 60 mm x 168 mm x 74 mm (2.3˝ x 6.6˝ x 2.9˝)
Weight 133 g (4.7 oz)
Input Voltage 5 V ± 5%
Operating Power 700 mW; 140 mA (typical) at 5V
Standby Power 425 mW; 85 mA (typical) at 5V
Host System Interfaces:
Multi-interface; includes USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge, RS-232C (± 12V), IBM RS485 supported via adapter cable
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 30 drops on concrete from 1.5 m (5’)
Environmental Sealing IP41
Light Levels 0-75,000 Lux (direct sunlight)
Scan Performance
Scan Pattern Single scan line
Scan Angle Horizontal: 30°
Print Contrast 20% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capabilities Reads standard 1D and GS1 DataBar symbologies
Warranty 5 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit
For a complete listing of all supported bar code symbologies, please visit
Voyager 1250g Typical Performance*
Narrow Width Depth of Field
5.0 mil 57 mm - 139 mm (2.2˝ - 5.5˝)
7.5 mil 28 mm - 245 mm (1.1˝ - 9.7˝)
10.4 mil 9 mm - 369 mm (0.4˝ - 14.5˝)
13 mil 0 mm - 446 mm (0˝ - 17.6˝)
*Resolution: 4 mil (0.127 mm)
*Performance may be impacted by bar code quality and environmental conditions
For more information:
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
Alle modellen: / All models:
-Honeywell Voyager 1250g, 1D, multi-IF, wit (hw1250 - 1250g-1)
handscanner, retail, 1D, laser, CodeGate function, 0-44cm leesafstand, 100 scans/s, multi interface (RS232, KBW, USB), IP41, apart bestellen, interface kabel, kleur: wit
Garantie: Warranty:
60 Maanden, 60 Months
Uitbreiding garantie met, Extended warranty with::
-PE Service +8%
Beschikbaar toebehoren: Available accessories:
-Honeywell power supply, EU (ms9520nt - 46-00526)
power supply, EU, 1.0A at 5.2VDC, 90-255VAC at 50-60Hz46
-Honeywell cable, KBW (hw1200cabkbw - CBL-720-300-C00)
cable, KBW, coiled, black, 3 m, 5V external power with option for host power
-Honeywell cable, USB (hw1200ucab2 - CBL-500-300-S00)
cable, USB, straight, black, 3m

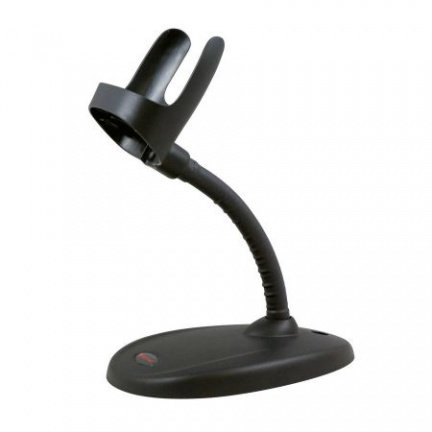

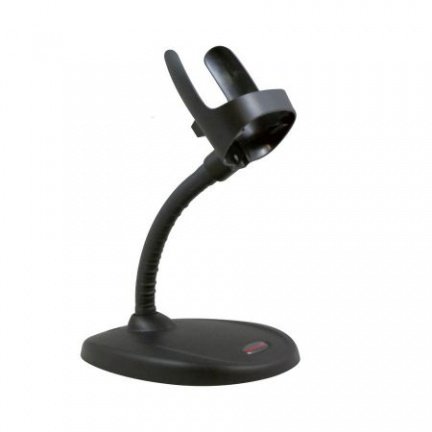

-Honeywell Stand (hw1250sta - STND-15F03-009-4)
Stand, 15cm high, flexible rod weighted mid-sized universal base, grey, for Honeywell Voyager 1250g
-Honeywell Kabel, RS232 (hwcab020 - CBL-020-300-C00)
RS232 Cable, 5V, DB9 Female, coiled, black, 3m
Prijs op aanvraag! Price on request!
