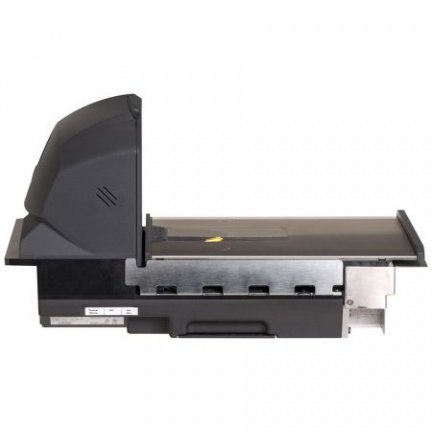

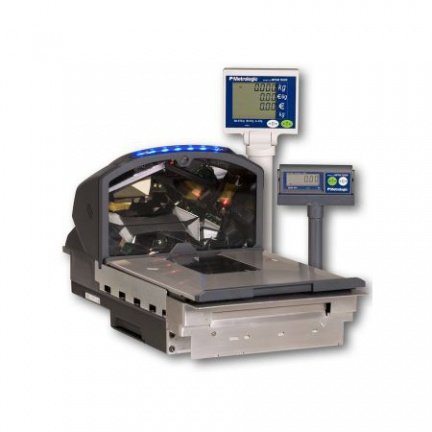

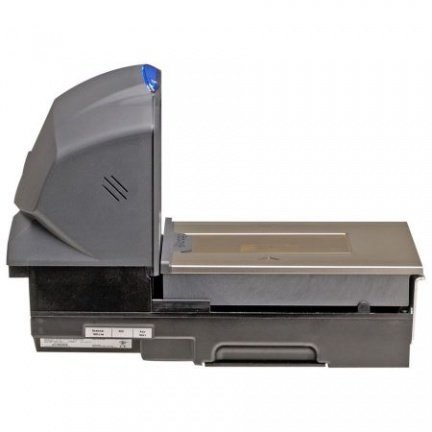

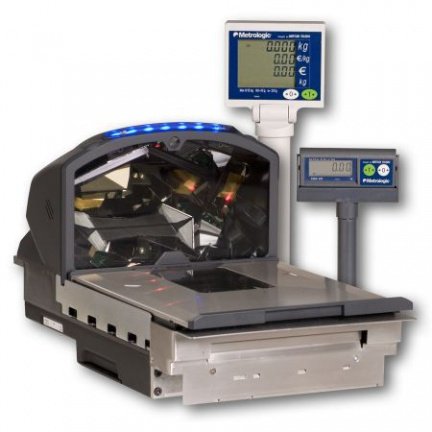

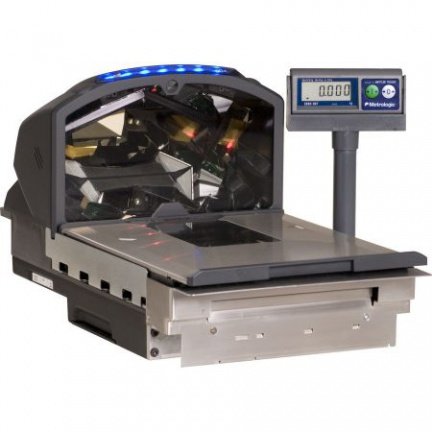

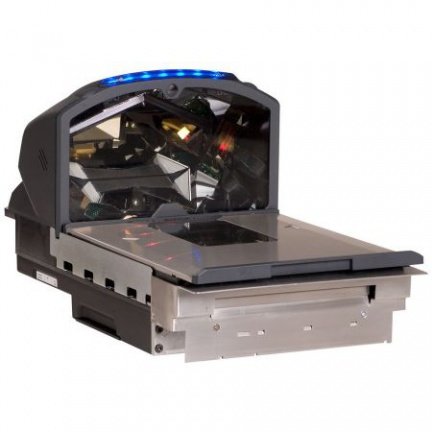

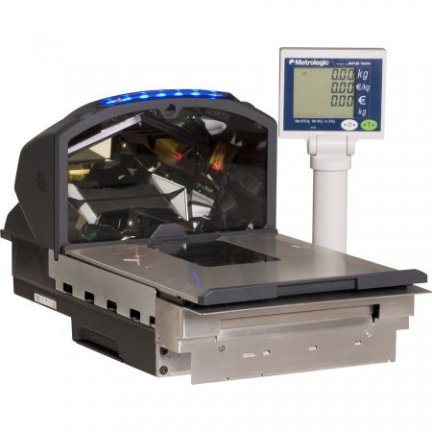

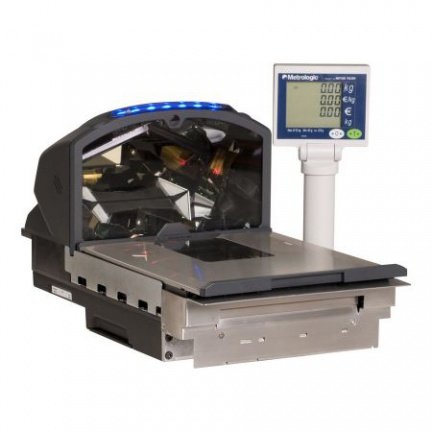

Honeywell StratosH 2300 Bioptic Scanner and Scale

Bewaar
  • Aantal keer bekeken 141x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

Powerful in-counter scanner
Honeywell StratosH 2300
High-performance, 6-sided scanner
Bi-optic: two independent integrated scan engines
5,280 scan lines per second
360° scanning area: no more searching for barcodes
Multi-interface: RS232, IBM, USB
The StratosH is a bi-optic in-counter scanner that can automatically read scans from all sides of a product without the user having to reposition the item. For all kinds of retail needs, in particular for grocery sales, you can get the StratosH with and without an integrated scale. Well-known scale manufacturers are all at your disposal for meeting the most diverse applications. The scale option is also available as a supplemental connection, with which you are perfectly equipped for meeting future needs.
Thanks to its patented modular design the scanner is easily and quickly installed, requires only minimal maintenance time and thereby provides maximum customer service. Due to its design and a smaller installation depth of only ten centimetres, it has ideal ergonomic integration in all common checkout environments – whether sufficient or little space is available, or the cashier is standing or sitting. The six-sided barcode reader scans all 1D as well as RSS codes, and guarantees rapid 360° scanning with 5,280 scan lines per second.
In combination with the StratosSPHERE decoding software, the scanner achieves high capture rates, even with badly printed, damaged, or ripped barcodes. As a result, higher throughput can be handled effortlessly even in particularly demanding situations.
A two-digit digital display provides a clearly assignable defect code in case of malfunction, at which point an immediate defect analysis should be conducted. Simultaneous scanning and concurrent deactivation of the security tags poses no problem with the integrated EAS deactivation antenna. Updates are possible via FlashRom.
Like the StratosE, the H series supports all standard interfaces, such as RS232, IBM and USB. A change in the check-out hardware does not require the replacement of the scanner, but rather only the replacement of the cable and configuration. Moreover, the scanner has a supplementary auxiliary port where, in order to increase flexibility in the check-out area, an additional hand-held scanner can be connected. Further efficiency is provided by the integrated EAS deactivation antenna – simultaneous scanning and concurrent deactivation of the security tags saves your customers valuable time.
StratosH 2300 Bioptic Scanner/Scale
Honeywell's Stratos 2300 is a six-sided, 360° bioptic scanner and scale that provides retailers with high-throughput efficiency and aggressive first-pass scanning performance. Its patented modular independent scanning planes simplify set up, minimize downtime and maximize customer satisfaction. The Stratos in-counter scanner form factor is available in several lengths and boasts a 4-inch-below counter depth for easy integration into most checkout environments.
StratosH 2300 Series Bioptic Scanner/Scale
Honeywell’s StratosH® 2300 6-sided, 360°-bioptic scanner/scale provides retailers with high-throughput productivity and aggressive first-pass scanning performance. Its patented modular independent scanning planes simplify set up, minimize downtime and maximize customer satisfaction.
StratosH ensures checkout efficiency with StratosSYNC TM and StratosSWAP TM. Both features capitalize on Honeywell’s patented modular scanner configuration of independent vertical and horizontal scanning planes.
The StratosH form factor is available in several lengths and boasts a
4-inch-below counter depth for easy integration into most checkout environments.
The StratosH 2300 maximizes return on investment with two analytical tools for tracking, managing and improving checkout productivity and efficiency. StratosSTATS TM provides real-time visibility into key data points directly impacting checkout productivity. StratosSCHOOL TM captures information necessary to improve operator scanning techniques and safety.
StratosH also features RS232 auxiliary port, Flash ROM firmware upgrade capability, MetroSet®2 PC-based configuring and sapphire or Diamonex® horizontal window.
Features
• 6-sided, 360°-Scanning: Improves productivity and operator ergonomics by reducing product orientation
• StratosSYNC TM Independent Scanning Planes:
Maintains productivity and uptime via independent scanning planes
• StratosSWAP TM Pre-Aligned Optical Scanning Modules:
Minimizes downtime and lowers the cost of service via modular optical scan engines
• StratosSTATS Productivity Analytical Software:
Provides data critical to maintaining checkout productivity
• StratosSCHOOL Operator Training Software: Improves productivity and promotes safer scanning techniques
StratosH 2300 Technical Specifications
Operational
Light Source Visible Laser Diode 650 nm + 10 nm
Visual Indicators:
Blue = ready to scan; White = good read; 7-segment display = diagnostic indicator
Host System Interfaces USB, RS232, IBM46xx (RS485), OCIA
Auxiliary Ports RS232: secondary scanner, EAS
Mechanical
Product 2320 (full-size scanner with scale)
Length 508 mm (20˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 178 mm (7˝)
Product 2321 (full-size scanner only)
Length 508 mm (20˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 178 mm (7˝)
Product 2322 (compact-size scanner only)
Length 420 mm (16.5˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 178 mm (7˝)
Electrical
Input Voltage 5.2 VDC ± 0.25 VDC; 12 VDC ± 0.5 VDC
Operating Power 13.25 W (810 mA at 5.2 V; 750 mA at 12V)
Standby Power 3.25 W (435 mA at 5.2 V; 80 mA at 12 V)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Depth of Scan Field (Horiz/Vert):
H: 0 mm - 152 mm (0˝ - 6˝); V: 0 mm - 216 mm (0˝ - 8.5˝) for 0.33 mm (13 mil) bar code
Sides Read/Scan Zone 6 / 360°
Scan Pattern:
Omnidirectional: 66 scan lines (Horizontal: 38 scan lines; Vertical: 28 scan lines)
Scan Speed 5280 scan lines per second
Resolution 6 mil (0.152 mm)
Print Contrast 35% minimum reflectance difference
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Scale Specifications
Capacity:
0-6 kg x 0.002 kg; 6-15 kg x 0.005 kg; (0-15 lb x 0.005 lb; 15-30 lb x 0.01 lb)
Minimum Legal Weight 40 g (0.1 lb)
Interfaces RS232, adapter cables available
Communication Protocols included work with most popular POS systems
Operating Range:
-10°C to 40°C (14°F to -104°F); 0-85% humidity; non-condensing
Automatic Zero Maintenance Assures a stable zero reading
Approvals NTEP, OIML, CE
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen, All models:
-Honeywell StratosH 2300, 1D, multi-IF, kit (RS232)
(sco255 - MK2321XS-60C241)
built-in scanner, retail, 1D, laser, omnidirectional, sapphire glass, 6-side, scale ready, 5280 scans/sec., multi-interface (RS232, USB, IBM), OCIA, incl.: cable (RS232, straight), power supply unit (EU), colour
Garantie: 36 maanden Warranty: 36 months
Service opties/options:
-PE Service: +8%
-FullCover: +18%
Beschikbaar toebehoren: Available accessories:
-Honeywell RS232 cable (ms24xxcabr2)
RS232 cable, DB9, for Honeywell Stratos 2300/2400
-Power supply for Stratos 21xx/23xx, EU (ms2xxxnt - 46-46813)
Power-supply kit (EU) for Honeywell Stratos 21xx and 23xx series
-Honeywell aux cable (mskabadgs - 54-54004-3)
Aux cable, colour: black
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
In addition to our extensive offer, we also provide the following versions and accessories of this product. Contact us.
Type Art.nr.fabr.
-Scanner-only: 420 mm (16.5´), Diamonex platter (46-46807), RS232 MS2322-14D
-Scanner-only: 420 mm (16.5´), Sapphire platter (46-46809), RS232 MS2322-14S
-Scanner-only: 508 mm (20.0´), Diamonex platter (46-46806), RS232/USB/IBM 46xx MS2321-121D
-RS232 Kit: 508mm scale ready scanner (MS2321-14XD), diamonex platter (46-46806), 3.7m straight DB9 (57-57000x-N-3), 3.7m straight DB9 (57-57000x-N-3), EU power supply (46-46813) and documentation MK2321XD-60C241
-Scanner-only: 508 mm (20.0´), Diamonex platter (46-46806), RS232 MS2321-14D
-Scanner-only: 508 mm (20.0´), Sapphire platter (46-46808), RS232 MS2321-14S
-Stratos 2320/2420+Scale, 3-day turnaround, Comprehensive coverage, 5-Year Package HSVC23/2420-SMS5
-Window: clear field replaceable vertical window for MS2300/MS2100 Stratos series 46-46889
-Stratos 2320/2420+Scale, 3-day turnaround, Comprehensive coverage, 1-Year, Post Sale, must be purchased within 1 year of hardware or on time renewal of SMS3 E-HSVC23/2420-SMS1
-Cable: RS232, black, 3.6m (11.8´), straight, no power 57-57089-N-3
-Power Supply: UK plug, 3-pin, 3.8A at 5.2VDC & 1.5A at 12VDC, 90-255AC at 50-60 HZ 70-74879
-Stratos 2320/2420+Scale,Extended Warranty, annual HSVC23/2420-W
-Cable: Checkpoint EAS, 1.8m (6.0´), straight 52-52556
-Stratos 2320/2420+Scale,Extended Warranty, annual, Post Sale E-HSVC23/2420-W
-Cable: RS232 Aux, black, 10-pin RJ45, 3.7m (12´), straight, host power (voyager/eclipse) 57-57099-3-12
-Stratos 2321/2421/2422/2431 Scanner only, 3-day turnaround, Comprehensive coverage, 3-Year Package HSVC23/24XX-SMS3
-Cable: RS232, black, DB9 female, 3.6m (11.8?), straight, no power 57-57000-N-3
-Stratos 2321/2421/2422/2431 Scanner only, 3-day turnaround, Comprehensive coverage, 1-Year, Post Sale, must be purchased within 1 year of hardware or on time renewal of SMS3 E-HSVC23/24XX-SMS1
-Cable: USB, black, 12V locking, 2.7m (8.9´), straight, no power with ferrite 57-57200-N-3
-Stratos 2321/2421/2422/2431 Scanner only, 3-day turnaround, Comprehensive coverage, 5-Year Package HSVC23/24XX-SMS5
-Cable: IBM 46xx, black, 4-pin SDL, straight, no power 57-57004-N-3
-Stratos 2321/2421/2422/2431 Scanner only, Extended Warranty, annual, Post Sale E-HSVC23/24XX-W
-Stratos 2320/2420+Scale, 3-day turnaround, Comprehensive coverage, 3-Year Package HSVC23/2420-SMS3
-Power Supply: UK plug, 1.5A at 5.2VDC & 1.5A at 12VDC, 90-255VAC at 50-60Hz 46-46814
-Stratos 2321/2421/2422/2431 Scanner only, Extended Warranty, annual HSVC23/24XX-W
-Cable: StratosSchool, RS232 Aux, black, straight, host power 57-57008-N-3
-Power Supply: UK plug, 6-pin, 3.8A at 5.2VDC & 1.5A at 12VDC, 90-255AC at 50-60 HZ 70-74880
Prijs op aanvraag! / Price on request!
