Honeywell Stratos MS2751, 2D, multi-IF, EAS, disp. sta…

Bewaar
  • Aantal keer bekeken 167x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving


built-in scanner, retail, laser, omnidirectional, 2D, imager, sapphire glass, short platter, EAS deactivation, display, 6-side, scale ready, 21500 scans/sec., multi-interface (RS232, USB), order separately: interface cable, power supply unit, colour: stainless steel
Laser scanner and imager in one

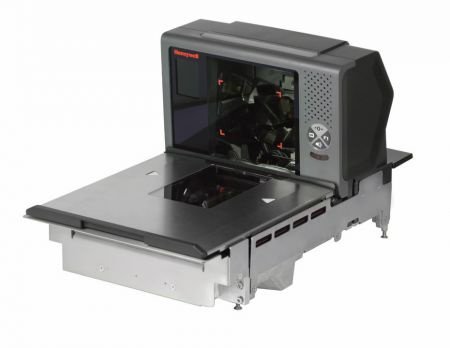

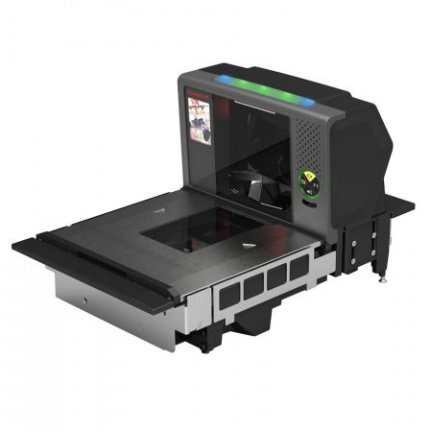

Honeywell Stratos 2700
Deluxe hybrid in-counter scanner
Integrated omni-directional laser scanner and 2D area imager
21,500 scans per second for quick barcode capture
Practical LCD display for simple video surveillance
Optional integrated scale and EAS antenna
Meet the first bi-optic hybrid in-counter scanner from Honeywell: the Stratos 2700. Honeywell developed this high-end scanner for the utmost scanning requirements. What makes it so special? It contains an omni-directional laser scanner plus a 2D area imager. The combination ensures for incredible performance at the checkout, as well as a consistently high speed, even during peak times. With 21,500 scans per second, it reliably and quickly captures 1D, 2D and PDF codes. For most products it is not necessary to line up the barcode with the Stratos 2700, because it captures the barcode from any side of the product within the scan area, thanks to its 360°-capture technology. This saves valuable time, allowing checkout personnel to perform pass-through scanning, even with very small articles.
Additionally increase the functionality of the in-counter scanner with an optionally integrated scale for vegetables, etc. Versions with different-sized weighing platforms are optimally adapted to the hardware. Should your needs change, retrofit all modular components on-site. The scan window is made from either durable sapphire or diamonex glass, to provide extra security during hectic daily operation. Even hard or oversized items do not pose any harm to the glass.
The Stratos 2700 features a built-in LCD display, directly next to the scan window, so it is always in plain sight of the user. Automatic text messages appear when technical problems occur, to provide a live diagnosis. Together with any standard camera you utilize practical live video surveillance of the cart at the checkout, for example, monitoring items stored underneath. This is an easy way to reduce the number of forgotten items and goods in the cart. For increased security opt for the EAS antenna (Electronic Article Surveillance), which protects items from theft. A counterpoint and EVOLVE antenna are integrated, standard; additional versions are optionally available. (The compatible connection is available, as well as 2 USB and 2 RS23 ports and a video connection.)
When it comes to maintenance and service, the Honeywell Stratos 2700 is ideally conceptualized. One tool is all you need for all the important parts, allowing you to keep repair downtimes to a minimum, which also increases overall productivity. Manage, configure and update the scanner and any connected devices remotely via Remote MasterMind. Be sure that all connected devices run with the same software tools and updates.
Stratos® 2700 In-Counter Scanner
The Stratos™ 2700 is Honeywell’s first hybrid bioptic in-counter scanner that combines omnidirectional laser scanning and integrated area-imaging to provide a bar code reading platform optimized for the checkout experience. An ideal answer for traditional checkout lanes and self-checkout systems, the hybrid platform delivers rapid pass-through scanning of linear bar codes while simultaneously helping retailers to stay current with 2D and mobile bar code trends.
Stratos 2700 Series
Bioptic Scanner/Scale
The Stratos™ 2700 is Honeywell’s first hybrid bioptic in-counter scanner that combines omnidirectional laser scanning and integrated area-imaging to provide a bar code reading platform optimized for the checkout experience. An ideal answer for traditional checkout lanes and self-checkout systems, the hybrid platform delivers rapid pass-through scanning of linear bar codes while simultaneously helping retailers to stay current with 2D and mobile bar code trends.
Equipped with field-upgradeable hardware modules like EAS antennas and scales, the Stratos 2700 was designed with both current and future needs in mind. Additionally, Honeywell’s LCD display supplies users with a live video feed−enabling greater in-store visibility for tasks like monitoring for under the cart items. This functionality reduces the complexity, cost and risk associated with deploying visual loss prevention systems while continuing to address a pivotal problem that is commonly held by retailers.
The Stratos 2700 is also designed for easy serviceability, employing a “single tool” architecture that minimizes the time and equipment needed for repair. Troubleshooting the device is also simplified through the availability of full text diagnostic messages that are shown on the LCD display. The display can show several messages and statuses in multiple languages. Lastly, Honeywell’s Remote MasterMind™ device management software offers added value by enabling IT professionals to manage the entirety of their bioptic install base and connected devices from a central location.
Expanding beyond what is conventionally required for bioptics, the Stratos 2700’s hybrid scanning platform and peerless feature-set position retailers for improved growth and profitability.
Features
• Hybrid Scanning Platform: Engineered to meet current and emerging retail trends, this hybrid solution seamlessly integrates both laser and imaging
technologies for high performance scanning
• LCD Display: Live video feed enables cashiers to monitor items under the cart in an effort to reduce losses due to shrinkage which have been estimated to be greater than $2500 per lane per year
• Field-Upgradeable Hardware Modules: Expands device functionality via simple, single-tool upgrades that can be completed in less than 15 minutes
• TotalFreedom™ 2.0: Second-generation software development platform enables valuable add-on software to run directly on the scanner, eliminating the need for host system modifications. Honeywell’s TotalFreedom solutions including flexible parsing plug-ins for GS1 Databar and North American driver’s licenses
• Remote MasterMind™ Ready: Turnkey remote device management solution that manages, tracks and upgrades installed bioptic scanners and connected
devices reducing total cost of ownership
Stratos 2700 Technical Specifications
Mechanical
Product 2751
Length 353mm (13.9”)
Dimensions (W x H x D) 292 mm (11.5”) x 178 mm (7.0”) x 104 mm (4.1”)
Weight (no scale) 7.1kg (15.8 lbs)
Glass Types Sapphire, Diamonex
Product 2752
Length 399 mm (15.7”)
Dimensions (W x H x D) 292 mm (11.5”) x 178 mm (7.0”) x 104 mm (4.1”)
Weight (no scale) 7.5kg (16.6 lbs)
Weight (scale) 9.9kg (21.8 lbs)
Glass Types Sapphire, Diamonex
Product 2753
Length 508 mm (20”)
Dimensions (W x H x D) 292 mm (11.5”) x 178 mm (7.0”) x 104 mm (4.1”)
Weight (no scale) 8.1kg (17.9 lbs)
Weight (scale) 10.8kg (23.9 lbs)
Glass Types Sapphire, Diamonex
Electrical
Input Voltage 12 VDC ± 0.5 VDC
Operating Power 10.2W (850mA at 12vDC)
Standby Power 4.9W (410mA at 12vDC)
Host System Interfaces USB, RS232, IBM 46xx (RS485)
Periperhal Interfaces 2x USB, 1x RS232, Scale Display, Composite Video, EAS
Camera Output Power 3.6W (300mA at 12VDC)
Indicators
LEDs:
Top Indicator Bar: Dim Green: laser on, ready; Bright Green Flash: good read; Blue: EAS Deactivate Front: Amber: Scale at Zero
Diagnostic Display Full text diagnostic display
Environmental
Operating Temperture 10°C to 40°C (50°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Environmental Sealing IP42
Light Levels 0 to 80,000 lux (7,432 foot-candles)
Scan Performance
Scan Technology Hybrid: Omnidirectional Laser + Area Image
Sides Read / Scan Zone 6 / 360
Scan Pattern Laser: 192 total scan lines; Imager: VGA Image
Scan Speed 21,500 scan lines
Resolution 1D: 4 mil; 2D: 6.7mil
Print Contrast 25%
Decode Capability Reads standard 1D, GS1 Databar and 2D symbologies
Warranty 2 year factory warranty
Electronic Article Surveillance
Sensormatic Ultra•Max® integrated EAS antenna (upgradable)
Checkpoint Counterpoint & Evolve integrated EAS antenna
Scale
Capacity:
0-6 kg x 0.002 kg; 6-15 kg x 0.005 kg; (0-15 lb x 0.005 lb; 15-30 lb x 0.01 lb)
Communication Protocols Compatible with most Point of Sale systems
Approvals NTEP, OIML, CE
Scale Compatability Mettler Toledo
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Stratos 2700 Bioptic
Overview
About the 2700 Bioptic Scanner/Scale
Honeywell’s Stratos 2700 bioptic scanner/scale incorporates a revolutionary hybrid platform that enables retailers to maximize customer throughput for rapid pass-through scanning of linear bar codes, plus area-imaging technology for scanning of 2D and mobile bar codes. Offering a technology platform that can easily be expanded to support future checkout scanning needs, the Stratos 2700 maximizes customer throughput, reduces checkout loss and provides investment protection.
Hybrid Laser and Imaging Scanning Technology
Revolutionary hybrid platform that enables retailers to maximize customer throughput for rapid pass-through scanning of linear bar codes, plus area imaging technology for scanning of 2D and mobile bar codes.
Bottom of Basket Monitoring System
Prevents up to $2500 of lost revenue per lane each year, when cashiers monitor an LCD screen on the scanner vertical plane and react to live bottom of basket video feed
Power From Host
The 2700 Scanner can source power from Point-Of-Sale systems which support the USB Plus Power specification. Eliminates the need for an external power supply.
USB Peripheral Ports
The 2700 scanner comes equipped with USB Type A peripheral ports for hosting secondary hand-held scanners, mass storage devices and additional USB 2.0 compatible devices
LCD Diagnostic Display
The Stratos 2700 scanner comes equipped with an LCD diagnostic display for viewing text messages of scanner diagnostic conditions, scanner service mode, cashier reminders and scanner asset tracking information. Supports multiple languages including English, Spanish, Portuguese, French, Italian and German.
Multiple In-counter Footprint Options
Allows multi-national retailers to standardize on a single scanner model while accommodating the 20" (508mm), 15.7" (399mm) and 13.9" (353mm) in-counter length checkout environments.
Checkpoint & Sensormatic EAS
Checkpoint & Sensormatic EAS Copy
TotalFreedom™ 2.0
Second-generation development platform enables the loading and linking of multiple applications on the scanner to enhance image processing, decoding or data formatting functionality, eliminating the need for host system modifications
Honeywell Remote MasterMind™
Managing devices, and deploying and managing applications has never been easier, thanks to Honeywell's Remote MasterMind™ device management software. With Remote MasterMind, all mobile devices deployed within a network, including Apple® iOS devices, can be managed remotely from a central location:
•Asset tracking
•Software and configuration updates
•Device security and lockdown
•Remote control, diagnostic & troubleshooting
•Real-time or point-in-time insights into dozens of device performance metrics
Alle modellen, All models:
-Honeywell Stratos MS2751, 2D, multi-IF, EAS, disp., stainless
(hw2700-2 - 2751-XS011)
built-in scanner, retail, laser, omnidirectional, 2D, imager, sapphire glass, short platter, EAS deactivation, display, 6-side, scale ready, 21500 scans/sec., multi-interface (RS232, USB), order separately: interface cable, power supply unit, colour: stainless steel
Garantie: 24 maanden Warranty: 24 months
Service opties/options:
-Garantieverlenging: +9%
-PE Service: +8%
-FullCover: +18%
Beschikbaar toebehoren: Available accessories:
-Honeywell RS232 cable (hw2700rcab - CBL-140-370-S20-BP)
Cable, RS232, colour: black, DB9 female, 3.7m (12´), straight, fits only for: Stratos 2700
-Honeywell USb cable (hw2700ucab - CBL-541-370-S20-BP)
cable, USB, colour: black, Type A, 3.7m (12´), straight cable, fits only for: Stratos 2700
-Cable: RS232 (5V signals) (ms24xxcabr3 - CBL-420-300-C00)
Cable: RS232 (5V signals), Honeywell Bioptic Stratos Aux, black, 10 pin
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
In addition to our extensive offer, we also provide the following versions and accessories of this product. Contact us.
Type Art.nr.fabr.
- Stratos 2700 (Scanner/Scale Ready): 399mm (15.7´), Camera display, Sapphire glass, standard platter, no scale, Sensormatic EAS -- Cable and power supplies separate 2752-XS013
-Stratos 2700 (Scanner/Scale Ready): 399mm (15.7´), Camera display, Sapphire glass, standard platter, no scale, Checkpoint EAS -- Cable and power supplies separate 2752-XS011
-Stratos 2700 (Scanner/Scale Ready): 399mm (15.7´), Camera display, Diamonex glass, standard platter, no scale, Checkpoint EAS -- Cable and power supplies separate 2752-XD011
-Stratos 2700 (Scanner/Scale Ready): 399mm (15.7´), Camera display, Diamonex glass, single flip-up platter, no scale, Checkpoint EAS -- Cable and power supplies separate 2752-XD111
-Stratos 2700 (Scanner/Scale Ready): 353mm (13.9´), Camera display, Sapphire glass, standard platter, no scale, Sensormatic EAS -- Cable and power supplies separate 2751-XS013
-Stratos 2700 (Scanner/Scale Ready): 399mm (15.7´), Camera display, Sapphire glass, three flip-up platter, no scale, Checkpoint EAS -- Cable and power supplies separate 2752-XS311
-Stratos 2700 (Scanner/Scale Ready): 399mm (15.7´), Camera display, Sapphire glass, single flip-up platter, no scale, Checkpoint EAS -- Cable and power supplies separate 2752-XS111
-Cable: Stratos Sensormatic cable, black, 4m (14´), straight cable CBL-EAS-400-S25-BP
-Cable: Stratos IBM 46xx, black, 3.7m (12´), straight cable CBL-640-370-S20-BP
-Cable: Stratos Locking USB, black, 12v Locking, 3.7m (12´), straight cable CBL-540-370-S20-BP
-Cable: Stratos Powered Locking USB, black, 12v Locking, 3.7m (12´), straight cable CBL-530-370-S20-BP
Prijs op aanvraag!! / Price on request!
