Honeywell Stratos MK2422 1D multi-IF kit RS232 stainle…

Bewaar
  • Aantal keer bekeken 158x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving


built-in scanner, retail, 1D, laser, omnidirectional, sapphire glass, 5-side, 5400 scans/sec., multi-interface (RS232, USB, IBM), incl.: cable (RS232), power supply unit (EU), colour: stainless steel

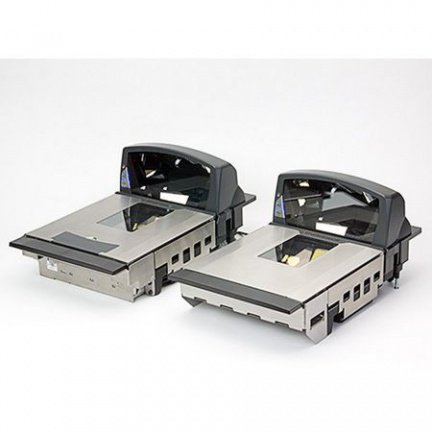

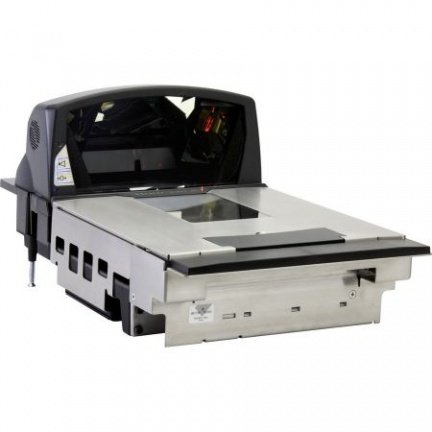

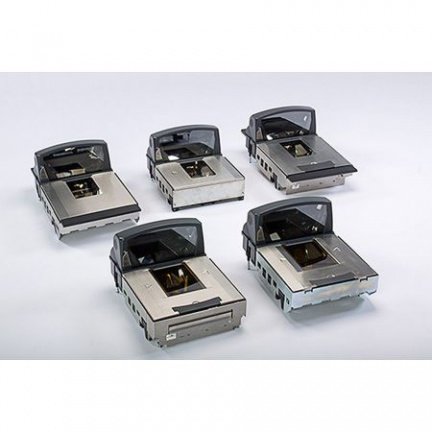

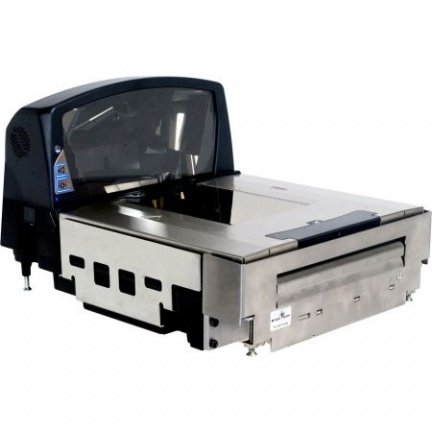

Compact bi-optical installation scanner for highest performance
Honeywell Stratos 2400
High-performance, 5-sided scanner
Bi-optic: two independent integrated scan engines
5,400 scan lines per second
360° scanning area: no more searching for barcodes
Multi-interface: RS232, IBM, USB
The Stratos 2400 from Honeywell is a high-quality, 5-sided, bi-optic, in-counter scanner for every POS environment, configured for especially high throughput with comfortable handling. The patented scan modules are independent and guarantee high reliability. Moreover, the modular design makes installation easy, keeps your maintenance costs down and ensures long-term successful operation for many years.
The Stratos 2400 is the newest model of the Stratos family with bi-optic 360° in-counter scanning. It decodes all common 1D and GS1 DataBar codes especially quickly and intelligently at up to 5,400 scan lines per second. Honeywell has enhanced the StratosSPHERE decoder software in order to provide improved productivity at the POS station. This improves capture rates and enhances the check-out process, as this is conducted straight away without having to position the barcode.
You can get the StratosH with and without an integrated scale in order to flexibly react to your customer’s future needs and various kinds of requirements. The 2400 features a fast microprocessor, expanded decoding software and an optimised vertical scan module.
Moreover, with the help of the two analysis tools StratosSTATS and StratosSCHOOL, productivity can be better measured, managed and optimised. StratoSTATS allows for statistical evaluation of scan data, in order to immediately identify poorly readable barcodes. StratosSCHOOL also collects information on the scanning behaviour of check-out personnel to be able to make their scanning techniques more ergonomic and effective through training.
Using the intelligent StratosSWAP, the StratosH is designed so that wear parts can be replaced as modules on site within minutes. Using only one mouse click, maintenance intervals can be requested and firmware or configuration updates conducted from the central PC. This ensures the customer that all workstations are actually configured with the same settings, avoiding troubleshooting.
The 2400 supports all standard interfaces such as RS232, IBM and USB. Future changes do not require a new set of scanners, rather only a change of cables and configurations.

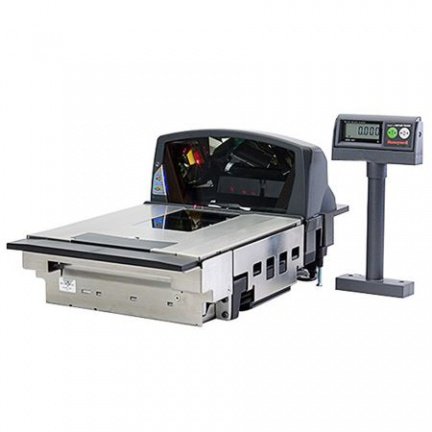

Stratos® 2400 Bioptic Scanner/Scale
Honeywell's Stratos 2400 premium five-sided, in-counter barcode scanner / scale increases productivity in demanding, high-volume seated and small checkout environments. The Stratos 2400 in-counter scanner offers pre-aligned optical-scanning modules and independent scanning planes which promote easy set up, lower maintenance costs and ensure continuous operation.
Stratos 2400 Series Bioptic Scanner/Scale
Honeywell’s Stratos® 2400 5-sided, 360°-bioptic scanner/scale increases productivity in demanding, high-volume seated environments where shorter vertical towers are required, and poor quality and highdensity bar codes are prevalent. Independent scanning planes and a modular design lower maintenance costs and ensure continuous operation.
Aggressive scan performance on high density and poor quality bar codes minimizes the need for manual keying. The 2400 also excels at scanning GS1 DataBar™ codes, ensuring compliance with sunrise initiatives.
Rapid pass-through scanning allows cashiers to maintain a constant motion across a wide range of bar codes, leading to faster customer processing, shorter lines, optimization of the number of open checkout lanes, and lower labor and energy costs.
Unlike other bioptic devices, 2400 is the only one to offer pre-aligned optical scanning modules, and independent scanning planes which enable the scanner to maximize uptime and maintain productivity.
The Stratos 2400 maximizes return on investment with two analytical tools for tracking, managing and improving checkout productivity and efficiency. StratosSTATS TM provides real-time visibility into key data points directly impacting checkout productivity. StratosSCHOOL TM captures information necessary to improve operator scanning techniques and safety.
Features
• 5-sided, 360°-Scanning: Improves productivity and operator ergonomics by reducing product orientation
• StratosSYNC TM Independent Scanning Planes:
Maintains productivity and uptime via independent scanning planes
• StratosSCHOOL Operator Training Software: Improves productivity and promotes safer scanning techniques
• StratosSWAP TM Pre-Aligned Optical Scanning Modules:
Minimizes downtime and lowers the cost of service via modular optical scan engines
• StratosSTATS Productivity Analytical Software:
Provides data critical to maintaining checkout productivity
• Remote MasterMindTM Scanner Management Sofware:
Offers a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location
• Flip-Up Weigh Bar: Single or three-sided options allow cashiers to accurately weigh oversized produce, reducing shrink loss
Stratos 2400 Technical Specifications
Operational
Light Source Visible Laser Diode 650 nm ± 10 nm
Visual Indicators:
Steady Blue = ready to scan; Flashing Blue = good read;
Amber = scale at zero; 7-segment display = diagnostic indicator
Host System Interfaces USB, RS232, IBM46xx (RS485)
Auxiliary Ports RS232: Secondary scanner, EAS
Mechanical
Product 2420 (compact scanner with scale):
Length 399 mm (15.7˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 130 mm (5.1˝)
Product 2421 (compact scanner only):
Length 399 mm (15.7˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 130 mm (5.1˝)
Product 22422 (sub compact scanner only):
Length 353 mm (13.9˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 130 mm (5.1˝)
Product 2430 (full-size scanner with scale):
Length 508 mm (20˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 130 mm (5.1˝)
Product 2431 (full-size scanner only):
Length 508 mm (20˝)
Width 292 mm (11.5˝)
Depth (Below Counter) 100 mm (4˝)
Height (Above Counter) 130 mm (5.1˝)
Electrical
Input Voltage 5.2 VDC ± 0.25 VDC; 12 VDC ± 0.5 VDC
Operating Power 11 W (1670 mA at 5.2 V; 190 mA at 12 V)
Standby Power 5.5 W (610 mA at 5.2 V; 190 mA at 12 V)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Depth of Scan Field (Horiz/Vert):
H: 0 mm - 100 mm (0˝-4˝); V: 0 mm - 216 mm (0˝-8.5˝) for 0.33 mm (13 mil) bar code
Sides Read/Scan Zone 5 / 360°
Scan Pattern:
Omnidirectional: 54 scan lines (Horizontal: 38 scan lines; Vertical: 16 scan lines)
Scan Speed 5400 scan lines per second
Resolution 4.5 mil (0.114 mm)
Print Contrast 35% minimum reflectance difference
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 2 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Scale Specifications
Capacity 15 kg (30 lb)
Minimum Legal Weight 0.005 kg (0.01 lb)
Maximum Static Weight 68 kg (150 lb)
Adjustments Required Field calibration if necessary
Applications Weight-only and price computing
Scale Partners:
Avery Berkel®, Bizerba®, Dibal®, Digi®, Herbert Retail and Mettler Toledo®
Platter Options:
Single or three-sided flip-up bar for weighing oversized produce
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell Stratos MK2422, 1D, multi-IF, kit (RS232), stainless
(ms2422r - MK2422NS-00C141)
built-in scanner, retail, 1D, laser, omnidirectional, sapphire glass, 5-side, 5400 scans/sec., multi-interface (RS232, USB, IBM), incl.: cable (RS232), power supply unit (EU), colour: stainless steel
Garantie: 24 maanden
Uitbreiding garantie met:
-Garantieverlenging: +9%
-FullCover: +18%
Beschikbaar toebehoren:
-Honeywell USB Cable (hwucab124m - 57-57227-N-3)
Cable: USB, color: black, 12V locking, 4.0m, straight, no power, for Honeywell Stratos 242x
-Honeywell IBM cable (ms24xxcabibm - 57-57212-N-3)
cable IBM 46xx,4-pin SDL, straight, black
-Honeywell RS232 cable (ms24xxcabr2)
RS232 cable, DB9, for Honeywell Stratos 2300/2400
-Honeywell RS232 cable (ms24xxcabr4 - 57-57153-N-3)
RS232, DB9 male, 5.0m, straight, black, for Honeywell Stratos 2400
-Honeywell power supply, EU (ms24xxpsu2 - 70-74882)
Power supply for Stratos 24xx, EU plug, 6-pin, 3.8A at 5.2VDC & 1.5A at 12VDC, 90-255AC at 50-60 HZ
-Honeywell aux cable (mskabadgs - 54-54004-3)
Aux cable, colour: black
-RS232 connection cable (mskabrsw - 57-57000-N-3)
RS232 connection cable, DB9, fits for Honeywell Strator/E/H
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
Type Art.nr.fabr.
-Scanner-only: 399 mm (15.7´), Scale Ready, Diamonex platter (46-00296), RS232/USB/IBM 46xx MS2421-105XD
-Scanner-only: 399 mm (15.7´), Scale Ready, Sapphire platter (46-01127), RS232/USB/IBM 46xx MS2421-105XS-3
-Scanner-only: 353 mm (13.9´), Diamonex platter (46-00234), RS232/USB/IBM 46xx MS2422-105D
-Scanner-only: 508 mm (20.0´), Diamonex platter (46-01087), RS232/USB/IBM 46xx MS2431-105D
-Scanner-only: 508 mm (20.0´), Sapphire platter (46-01086), RS232/USB/IBM 46xx MS2431-105S
-Stratos 2321/2421/2422/2431 Scanner only, Extended Warranty, annual, Post Sale E-HSVC23/24XX-W
-Stratos 2320/2420+Scale, 3-day turnaround, Comprehensive coverage, 3-Year Package HSVC23/2420-SMS3
-Stratos 2321/2421/2422/2431 Scanner only, Extended Warranty, annual HSVC23/24XX-W
-Cable: Checkpoint EAS, 1.8m (6.0´), straight 52-52556
-Power Supply: UK plug, 6-pin, 3.8A at 5.2VDC & 1.5A at 12VDC, 90-255AC at 50-60 HZ 70-74880
-Stratos 2320/2420+Scale, 3-day turnaround, Comprehensive coverage, 5-Year Package HSVC23/2420-SMS5
-Stratos 2320/2420+Scale, 3-day turnaround, Comprehensive coverage, 1-Year, Post Sale, must be purchased within 1 year of hardware or on time renewal of SMS3 E-HSVC23/2420-SMS1
-Cable: RS232, black, DB9 female, 3.6m (11.8?), straight, no power 57-57000-N-3
-Stratos 2320/2420+Scale,Extended Warranty, annual HSVC23/2420-W
-Stratos 2320/2420+Scale,Extended Warranty, annual, Post Sale E-HSVC23/2420-W
-Cable: StratosSchool, RS232 Aux, black, straight, host power 57-57008-N-3
-Stratos 2321/2421/2422/2431 Scanner only, 3-day turnaround, Comprehensive coverage, 3-Year Package HSVC23/24XX-SMS3
-Stratos 2321/2421/2422/2431 Scanner only, 3-day turnaround, Comprehensive coverage, 1-Year, Post Sale, must be purchased within 1 year of hardware or on time renewal of SMS3 E-HSVC23/24XX-SMS1
-Cable: RS232 Aux, black, 10-pin RJ45, 3.7m (12´), straight, host power (voyager/eclipse) 57-57099-3-12
-Stratos 2321/2421/2422/2431 Scanner only, 3-day turnaround, Comprehensive coverage, 5-Year Package HSVC23/24XX-SMS5
