Honeywell Hyperion 1300g, 1D, multi-IF, white wit 1300…

Bewaar
  • Aantal keer bekeken 156x bekeken
  • Datum geplaatst 8 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

Honeywell Hyperion 1300g, 1D, multi-IF, white wit (hw1300w - 1300g-1)
handheld scanner, retail, 1D, linear imager, 66cm reading distance, 270 scans/sec., multi-interface (RS232, KBW, USB), IP41, order separately: interface cable, colour: white
Highly ergonomic linear imager

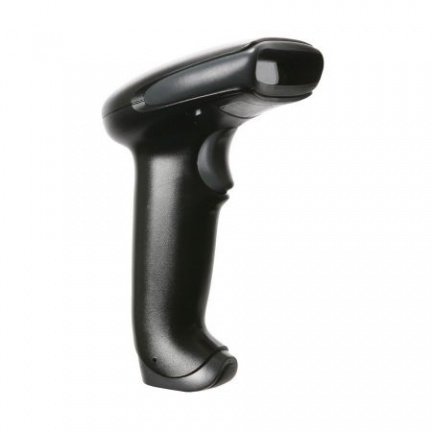

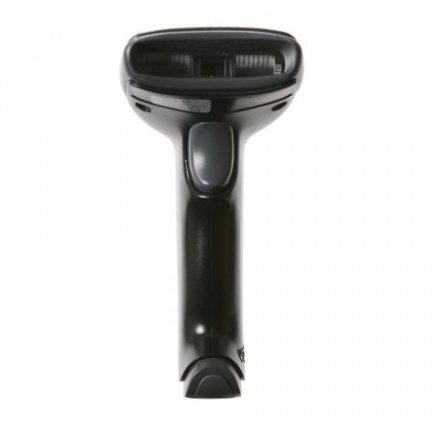

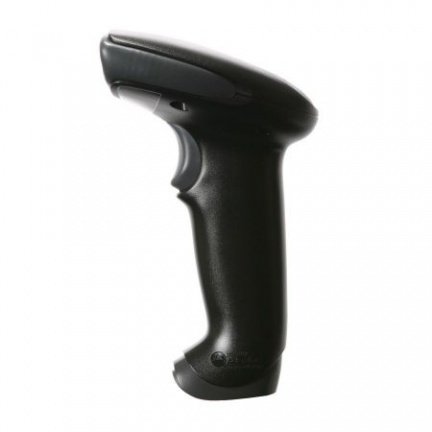

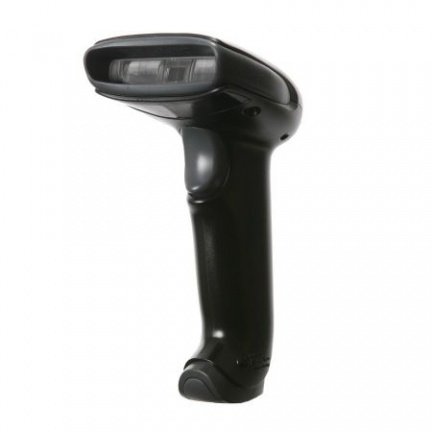

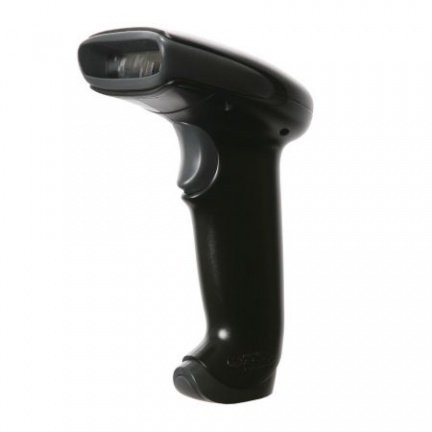

Honeywell Hyperion 1300g
Highly ergonomic, powerful barcode scanner
Extremely robust: no moving parts thanks to linear imager technology
Far-reaching reading range even under difficult circumstances
Integrated multi-interface with automatic recognition
The Honeywell Hyperion 1300g is a linear imager with especially professional reading performance. It is based on the power and robust construction of the 3800g – one of the best-selling scanners of its class. Its highly efficient scanning ability, high durability, as well as simple handling make it predestined for the most varying applications in POS, in the office, repair shop, warehouse, shipping or in technical production environments. This scanner is as robust as it is fast in barcode data capture. Rely on especially secure data capture, even from poorly printed, wavy or smeared barcodes, thanks to its high definition linear imager camera.
With up to 270 scans per second the Hyperion 1300g reads all 1D and GS1 DataBar codes. Its intuitive and utmost professional handling of standard codes reduces the need for additional equipment. Thanks to imager technology, there is no moving mirror optics, thereby reducing components to a minimum and ensuring a supremely robust construction method. Boasting the IP41 rating, it even easily survives multiple impacts on concrete.
Its ergonomics are as impressive as its reading performance: its casing and trigger have been designed for comfortable use by both right and left handed users. Both its light weight and gun form keep its user from tiring quickly. An optional scan stand allows for hands-free scanning from two positions.
Picture modification software offers additional editing functions for high quality digital pictures, such as cropping, enlightening, rotating, improved sharpness and much more. Additional intelligent software features optimise the reading and transferring of data, as well as support you in its integration into existing systems. Its multi-interface makes connection child's play, plus its automatic recognition makes manual tuning passé.
Hyperion 1300g Linear-Imaging Scanner
"Honeywell's Hyperion 1300g linear-imaging barcode scanner features an ideal balance of performance, best-in-class durability and ergonomics to provide years of hassle-free scanning, especially in scan-intensive or light industrial applications. Fast intuitive reading of 13 mil barcodes out to 18 inches (457 mm), as well as reading of high density barcodes as small as 3 mil are both enabled in a single linear imager, eliminating the need to purchase specialty scanners. Get the most out of the Hyperion linear imager with compatible Remote MasterMind® scanning management software. "
Hyperion 1300g Linear-Imaging Scanner
Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g provides years of hassle-free scanning, especially in scan-intensive or light industrial applications.
The Hyperion 1300g delivers outstanding linear imaging performance and versatility. Fast intuitive bar code reading out to 18 inches (457mm), and high density bar code reading are both enabled in a single device, eliminating the need to purchase specialty scanners.
With no moving parts to wear out, the Hyperion 1300g is one of the toughest general duty scanners on the market. Designed to keep your operation running smoothly, the Hyperion 1300g is durable enough to hammer nails.
The Hyperion 1300g is the ideal choice for customers who value aggressive scan performance and durability in a general duty handheld linear scanner.
Features
• Superior Hand-Held Scanning: Increases throughput by offering intuitive and aggressive hand-held scanning performance
• Highly Versatile: Eliminates the need to purchase specialty scanners by providing the ability to read out to 18 inches (457mm) on 13 mil bar codes, as well as high density bar code reading in a single device
• Class-Leading Durability: Increases up time and reduces service costs with a reliable design that utilizes no moving parts and full impact resistant bumpers
• Comfortable, Ergonomic Design: Ensures operator comfort and productivity with a gun-shaped form factor optimized for intensive hand-held scanning
• Automatic Interface Detection: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with
automatic interface detection and configuration
• Remote MasterMind® Scanner Management Software:
Provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location
Hyperion 1300g Technical Specifications
Mechanical/Electrical
Dimensions 150 mm x 112 mm x 79 mm (5.9˝ x 4.4˝ x 3.1˝)
Weight 160 g (5.6 oz)
Input Voltage 5V ± 5%
Operating Power 1000mW; 200 mA (typical) at 5V
Standby Power 625mw; 125 mA (typical) at 5V
Host System Interfaces:
Multi-Interface/includes RS232 (TTL +5V, 4 Signals)/KBW/USB (HID keyboard, serial, IBM OEM);
RS-232C (±12V) and IBM RS485 supported via adapter cable
Auxiliary Ports N/A
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 0 to 95% non-condensing
Drop/Tumble Designed to withstand 50 drops on concrete from 1.5m
Environmental Sealing IP41
Light Levels 0-70,000 lux (direct sunlight).
Scan Performance
Scan Pattern Single line
Motion Tolerance 20 in (51cm) per second
Scan Rate Up to 270 scans per second
Print Contrast 20% minimum reflectance difference
Pitch, Skew 65°, 65°
Decode Capabilities Reads standard 1D and GS1 DataBar™ symbologies
Warranty 5 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Typical Performance*
Narrow Width Depth of Field
5.0 mil 50 mm - 200 mm (2.0˝ - 8˝)
7.5 mil 40 mm - 300 mm (1.5˝ - 12˝)
10 mil 30 mm - 380 mm (1.0˝ - 15˝)
13 mil 10 mm - 460 mm (.5˝ - 18˝)
20 mil 30 mm - 660 mm (1.0˝ - 26˝
*Resolution: 3.0 mil
*Performance may be impacted by bar code uality and environmental conditions
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen, All models:
-Honeywell Hyperion 1300g, 1D, multi-IF, white (hw1300w - 1300g-1)
handheld scanner, retail, 1D, linear imager, 66cm reading distance, 270 scans/sec., multi-interface (RS232, KBW, USB), IP41, order separately: interface cable, colour: white
Garantie: 60 maanden Warranty: 60 months
Service opties/options:
-PE Service: +8%
Beschikbaar toebehoren: Available accessories:
-Honeywell stand (ccd530 - HFSTAND7E)
Flex neck stand for hands-free operation/presentation scanning
-Power Supply for 95xx (ms9520nt - 46-00526)
Power supply for 9520w/9540w keyboard-wedge series. Normally the Honeywell keyboard wedge scanners work with the power supplied by the PC keyboard port, but some PC mainboards do not deliver enough power. In this case, ms9520nt is needed
-Honeywell KBW-cable (hw1200cabkbw - CBL-720-300-C00)
KBW-cable, coiled, black, 3m
-Honeywell USB-cable (hw1200ucab - CBL-500-300-C00)
USB-cable, coiled, black, 3m
-Honeywell USB-cable (hw1200ucab2 - CBL-500-300-S00)
USB-cable, straight, black, 3m
-Honeywell USB-cable (hw1200ucab3 - CBL-500-500-C00)
USB-cable, coiled, black, 16.4'
-Honeywell accessories (hw1300stand - STND-23R03-006-4)
Stand: gray, 23cm (9') stand height, rigid rod, weighted mid-sized universal base, Hyperion 1300 sliding cradle
-Honeywell accessories (hw1300stand-2 - STND-30R03-006-4)
Stand: gray, 30cm (12') stand height, rigid rod, weighted mid-sized universal base, Hyperion 1300 sliding cradle
-Honeywell Kabel, RS232 (hwcab020 - CBL-020-300-C00)
RS232 Cable, 5V, DB9 Female, coiled, black, 3m
-Honeywell RS232 cable, coiled, black (hwcab220 - CBL-220-300-C00)
Cable: RS232 (+5V signals), black, DB9 Male, 3m (9.8''), coiled,external power with option for host power on pin 9 for connection to Wincor Beetle
-Honeywell RS232 cable (hwcab331 - CBL-331-300-S00)
RS232 cable, 9-pin male, 3m lenght, Wincor Nixdorf terminal, for Honeywell scanner
-Honeywell IBM cable 46xx, black, straight (hwcabibm2 - CBL-600-300-S00)
Cable: IBM 46xx Port 9b, black, 3m (9.8´), straight, 12V host power
-Honeywell accessories (hwholder - HOLDER-008-U)
Holder: desktop/wall mount (includes holder, screws) for 1300g
-Honeywell USB cable, black, 3m, coiled (hwucab12 - CBL-503-300-C00)
Cable: USB, black, 12V locking, 3m (9.8´), coiled, 5V host power
-Cable: RS232 (5V signals) (ms24xxcabr3 - CBL-420-300-C00)
Cable: RS232 (5V signals), Honeywell Bioptic Stratos Aux, black, 10 pin
-Honeywell power supply, UK (msntuk6 - 46-00870)
Honeywell UK power supply, 5.2V, 1.0A, 90-255VAC
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
In addition to our extensive offer, we also provide the following versions and accessories of this product. Contact us.
Type Art.nr.fabr.
-Cable: RS232 (+/-12V signals), Radiant 1550 POS terminal, black, 6-pin modular, 3m (9.8´), straight, host power on pin 6 CBL-430-300-S00
-Cable: RS232 (5V signals), NCR 787x, black, 8 pin modular, 3m (9.8´), straight, external power with option for 5V host power on pin 1 CBL-NCR-300-S00
-Cable: RS232 (+/-12V signals), Verifone Ruby, Sapphire and Topaz Terminals, black, 8 pin modular straight, host power on pin 8 CBL-431-300-S00
-Cable: Wand Emulation, Black, 9 PIN SQZ, 3m, Coiled, 5V Power on Pin 4 on Host CBL-821-300-C00
-Cable: RS232 (5V signals), Gilbarco terminal, black, 8 pin modular, 3m (9.8´), straight CBL-GIL-300-S00-01
-Cable: RS232 (5V signals), Gilbarco terminal, black, DB9 Female, 3m (9.8´), straight CBL-GIL-300-S00-02
-Cable: RS232 (5V signals), Magellan Aux Port, black, 10 pin modular, 3m (9.8´), straight, external power with option for host scanner power CBL-MAG-300-S00
Prijs op aanvraag! / Price on request!
