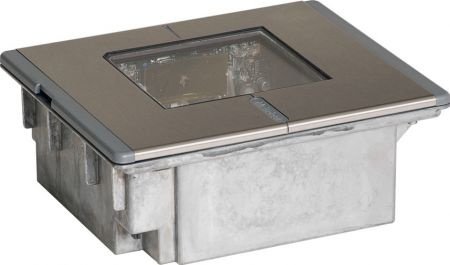

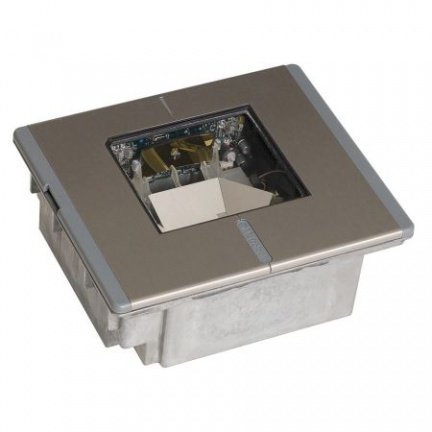

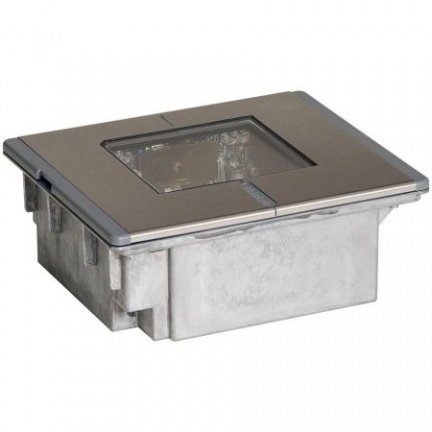

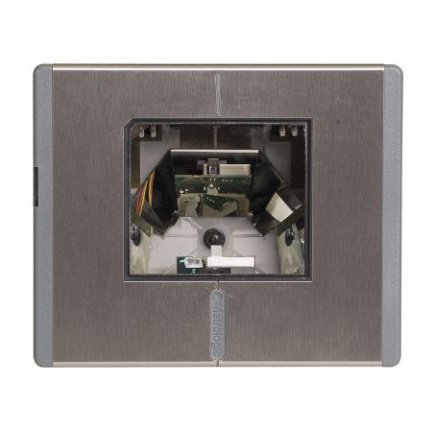

Honeywell Horizon 7625, 1D, multi-IF, kit (KBW), stainless (ms7625 - MK7625-71C47)
built-in scanner, retail, 1D, laser, omnidirectional, 2000 scans/sec., multi-interface (RS232, KBW, USB), incl.: cable (KBW), colour: stainless steel
Fix-mount laser scanner for professional applications
Honeywell Horizon 7625
Professional barcode scanner for integration in cash desks (projection scanner)
Omni-directional field of view, 4x5 lines, 2,000 scans per second (self-activating)
Hardened sapphire glass scan window
Multi-interface: programmable connection types
Sturdy and leightweight cast aluminium housing
The Horizon 7625 is a professional laser scanner for installation in retail cash desks. With a sturdy cast aluminium housing and a hardened sapphire scan window, it is even suitable for rather rough environments. Its omni-directional scan engine reads barcodes at high speeds from any direction. This makes the Horizon 7625 a solution for small groups of cash desks in supermarkets as well as for single cash desks in special retail shops, libraries, petrol stations or newsagents.
The scanner's highly aggressive laser engine reads with an omni-directional scan pattern of 4x5 laser lines to scan the barcodes at high speed from any direction. The user is no longer required to align the barcode along the laser line of the scanner, which increases the check-out speed significantly. Waiting queues are prevented and customer service is improved at the same time.
With the Horizon 7625, maintenance is made easy – connection cables and scan windows can be replaced by the user without any additional technical knowledge. The laser engine itself is extremely hard-wearing and maintenance-free, giving the device a very long service life. A decoder with extensive programming options helps with an individual adaptation of your POS system. Use it to configure transmission parameters, readable barcodes, receipt signals and more. Configuration only requires the MetroSet2 Software (requires serial cable) or can be accomplished with programming barcodes included in the provided programming manual.
In order to deactivate security labels (EAS) during scanning, the Horizon features an integrated EAS aerial for connection to an EAS pulse generator.
Additionally, the Horizon 7625 features an AUX peripheral port for connecting extra handheld laser scanners or magnetic stripe readers over the same interface to the system. If required, an installation frame for table installation can be ordered separately.
Horizon® 7600 Omnidirectional Laser Scanner
Honeywell's Horizon 7600 in-counter laser scanner comes in a compact form factor with a dense 20-line scan pattern that provides fast and efficient throughput. An integrated EAS antenna provides simultaneous scanning and deactivation of security tags. Connect a hand-held scanner to the RS232 auxiliary port and eliminate the need to lift bulky, oversized objects. The Horizon 7600 laser scanner is durable with die-cast construction to withstand even the harshest environments. Comes with Checkpoint electronic article surveillance built into the device to help decrease shrinkage.
Horizon 7600 Omnidirectional Laser Scanner
Honeywell’s Horizon® 7600 is a compact in-counter hands-free laser scanner designed with a dense 20-line scan pattern that provides fast, efficient throughput.
Horizon is equipped with an integrated RF EAS deactivation antenna.
The EAS security tag, designed to reduce shrink, is deactivated and the bar code is scanned with a single pass. These simultaneous operations help improve operator comfort and increase throughput. To further enhance operator efficiency and productivity, Horizon is equipped with IR laser activation. This allows the user to “wake” the unit from a power save or sleep mode and read a bar code instantaneously.
Each Horizon includes an RS232 auxiliary port that allows for handheld bar code scanners to be connected providing easy scanning of bulky, oversized objects. Other peripherals such as check readers or magnetic stripe readers can also utilize the flexibility of the auxiliary port.
The Horizon also provides multiple interfaces and data parsing making it compatible with almost every POS system on the market today.
The combination of performance, ruggedness, and a myriad of features make the Horizon an ideal choice for grocery, supermarket, retail, package depot, and a multitude of other applications.
• Durable Die-Cast Construction: Withstands abuse in the harshest environments
• Flash ROM: Protects POS investment with free firmware updates via MetroSet®2 software and standard PC
• Built In RF EAS Antenna: Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes
• Field Replaceable Window: Fast repairs without removing unit from service
• Auxiliary Port: Connect an external scanner or other peripheral directly to the scanner
Horizon 7600 Technical Specifications
Dimensions (LxWxH) 88 mm x 229 mm x 193 mm (3.5˝ x 9.0˝ x 7.6˝)
Weight 2.9 kg (6.3 lbs)
Input Voltage 5 VDC ± 0.25 V
Operating Power 2.6 W (500 mA at 5 V)
Standby Power 830 mW (
Host System Interfaces:
USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Wand Emulation
Auxiliary Ports RS232: Secondary Scanner or Scale, EAS
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Omnidirectional: 5 fields of 4 parallel lines
Scan Speed 2000 scan lines per second
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit
For a complete listing of all supported bar code symbologies, please visit
Typical Performance*
Narrow Width Depth of Field
5.2 mil 0 mm - 38 mm (0˝ - 1.5˝)
7.5 mil 0 mm - 114 mm (0˝ - 4.5˝)
10.4 mil 0 mm - 178 mm (0˝ - 7.0˝)
13 mil 0 mm - 203 mm (0˝ - 8.0˝)
19 mil 0 mm - 229 mm (0˝ - 9.0˝)
*Resolution: 5 mil (0.125 mm)
*Performance may be impacted by bar code quality and environmental conditions
For more information:
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
Alle modellen:
-Honeywell Horizon 7625, 1D, multi-IF, kit (KBW), stainless
(ms7625 - MK7625-71C47)
built-in scanner, retail, 1D, laser, omnidirectional, 2000 scans/sec., multi-interface (RS232, KBW, USB), incl.: cable (KBW), colour: stainless steel
Garantie: 36 maanden
Uit te breiden met:
-PE Service: +8%
-FullCover: +18%
Beschikbaar toebehoren:
-USB cable, black (hla347 - 54-54165-3)
USB cable for Horizon, 2.1 m, colour: black
-IBM connection cable (mskabibm - 53020A)
Original Honeywell connection cable for IBM ECRs
-Sharp connection cable (mskabsharp - 53-53150-3)
Original Honeywell connections cable for sharp ECRs
-Mounting Frame f. MS7625 (ms7625rah - 46-46641)
Fram for professional built-in-mounting of the MS7625 within the cash desk.
-Honeywell KBW cable (ms54002 - 59-59002-3)
Honeywell kbw cable, length: 2.1 m, straight, for Honeywell 3780, 7625, 7120, 7180, 3480, 3580
-Honeywell cable, RS232, black (ms59000 - 59-59000-3)
Connection cable, RS232 with Power-Link connector, straight, with bend-protection on the scanner side, colour: black
-Honeywell power supply, UK (msntuk6 - 46-00870)
Honeywell UK power supply, 5.2V, 1.0A, 90-255VAC
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
-Scanner: plastic platter, standard glass calibrated, RS232/KBW/USB, Installation & User´s Guide MS7620-37
-7600 Horizon,SMS 1-day turnaround, comprehensive coverage, 3-Year HSVC7600H-SMS3
-7600 Horizon, SMS, 1-day turnaround, Comprehensive coverage, 1-Year, Post Sale, must be purchased within 1 year of hardware or on time renewal of SMS3 E-HSVC7600H-SMS1
