Honeywell Granit 1911i Wireless 2D Bluetooth Barcode S…

Bewaar
  • Aantal keer bekeken 219x bekeken
  • Datum geplaatst 8 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

Powerful Bluetooth area imager

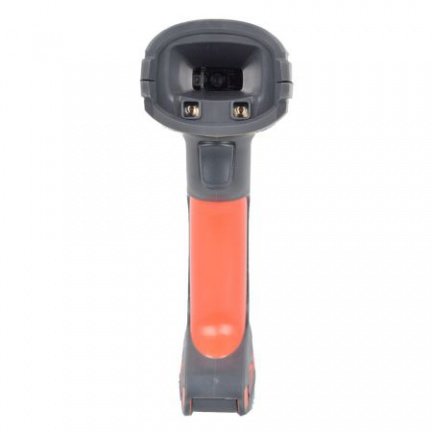

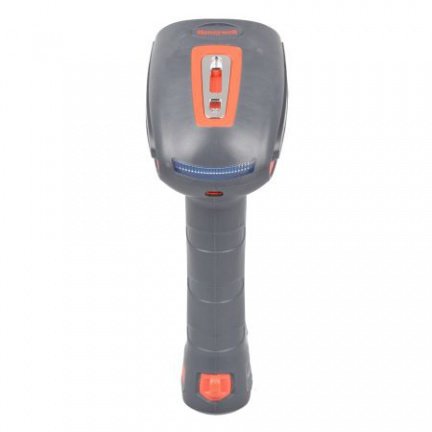

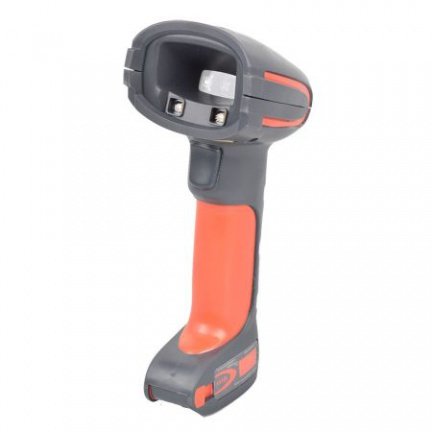

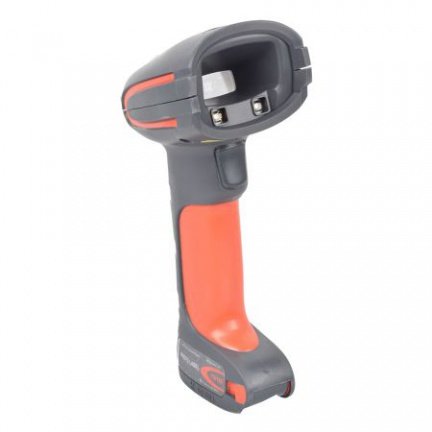

Honeywell Granit 1911i
Wireless 2D industrial scanner with up to 100 m range
Reliable Bluetooth radio transmission
Up to 50,000 scans with one single battery charge
Practical vibration feedback for more efficiency
IP65-protected against drops and cold
High performance for wireless use: the area imager Granite 1911i from Honeywell makes it possible. Wherever you need it - for production, warehousing, logistics - it gives its all 100% anywhere. The case is so robust that it withstands numerous drops of up to 2 m without damage - even on a concrete floor. The Granite 1911i is also effectively protected against the penetration of water, dust and other foreign matter, and has IP65 certificate protection.
Top reading performance and reliable barcode scanning is ensured by the strong scan engine with Adaptus Imaging 6.0 technology inside. Honeywell has installed in the Granite series the same engine that is also embedded in the best in its class area imager Xenon 1900. The Granite 1911i reads barcodes of all kinds quickly and reliably: this of course includes 1D, 2D and PDF codes, as well as damaged or difficult to read barcodes. The imager captures linear 20-mil codes even from a distance of more than 50 cm.
Speed up the process with the cordless imager: thanks to Bluetooth Class 1, data transmission works smoothly within a range up to 100 meters. Employees can thus move freely around the work area and can be assigned flexibly. A battery charge lasts for up to 14 hours or 50,000 scans - whether at -30 ° C or +50 ° C. If the battery is empty, replace it easily and without tools in a matter of seconds.
The scan confirmation occurs both visually and audibly by default, via a lit LED and a programmable beeper. For particularly noisy or poorly lit environments, you can optionally equip the Granite 1911i with a vibration feedback. The scanner then vibrates after a good scan, leaving no doubt. Thus, you increase efficiency and avoid a multiple scanning of the same barcode.
To work more cost effectively, easily operate up to seven Granite imagers with a single base station. You will conserve budget funds without having to make compromises. Another practical item is the paging feature, which significantly facilitates finding misplaced scanners. The scanning software Remote MasterMind simplifies network integration for administrators.
A three-year warranty secures the investment. Nothing should happen to the Granite 1911i: in the test, the scanner was still fully operational after 5,000 1 metre drops.
Granit 1911i Wireless Industrial-Grade Area-Imaging Scanner
The Granit™ 1911i wireless industrial-grade area-imaging scanner is designed to withstand the varied demands that exist in harsh working environments. Featuring a custom built housing that is redefining the standard for scanner reliability, the IP65 rated Granit 1911i is built to survive 5,000 3.3´ (1 m) tumbles and 50 drops to concrete from 6.5´ (2 m) even at -4°F (-20°C). As a result, businesses can expect to experience minimal device downtime and a lower overall cost of ownership.
Granit 191Xi Industrial-Grade Area-Imaging Scanner
About the Granit 191Xi
Granit 191Xi has been built from-the-ground-up to withstand just about anything it might face in your harsh, demanding environments redefining the standard for durable hand-held scanners. Featuring a custom built housing that meets IP65 dust and water protection standards, withstands 5,000 1m tumbles, and survives 50 2m drops to concrete even at extreme temperatures, Granit 191Xi offers industry leading durability. As a result businesses experience minimal downtime, and lower service costs enjoying a low total cost of ownership
Durability
Built to last with the highest durability rating in its class
•Only 2D industrial scanner specified to 5,000 1m tumbles
•Proven to survive 50 2m drops to concrete even at extreme temperatures
•IP65 sealing prevents dust and water from entering
•Highest durability rating in its class
As a result business experience minimal downtime and lower replacement cost enjoying a low total cost of ownership
Proven Platform
Built on the same platform and core architecture as Honeywell's Xenon the Granit 191Xi incorporates all of the same technology advances and performance in an industrial scanner plus:
•Increased motion tolerance for aggressive reading of the most common 1D, Stacked, and 2D symbologies used today
•Enhanced reading on poor quality and damaged barcodes
•Uses the same menuing commands
Maximizing employee's productivity while lowering service and maintenance costs
Adaptus 6.0 Performance
Adaptus 6.0's revolutionary decoding architecture takes the scanning experience to a whole new level
•Faster reading times
•Excellent motion tolerance
•Longer reading distances
•Performs in all types of lighting conditions
Fast and more accurate reading of bar codes increase employee productivity, reduces the risks of manual entry allowing the employee to accomplish more in less time with less errors
Extended Linear Depth-of-Field
Extended Range (ER) optics, Adaptus 6.0 architecture, and burst illumination all combine for extended reading distance without sacrificing motion tolerance
•Ideal for mixed symbology environments
•No more step stools or kneeling in order to scan bar codes found on the top or bottom shelf
•Faster reading times
Reducing operating costs by increasing employee productivity, minimizing the risk of manual entry, and reducing the potential for employee accidents
Intuitive User Feedback
Loud machinery and poor lighting conditions make it challenging for employees to know when scanning has occurred wasting valuable time. The Granit 191Xi features:
•Bright laser aimer guides employees quickly and easily to the bar code even at long distances
•Good read indicators that can be seen from any angle
•Louder beeper that can be heard even in nosy environments
Ease of use improves user satisfaction, increases worker productivity, and reduces operating costs
Flexible Radio Management
The Granit 1911i cordless scanner BlueTooth power level is configurable from low transmit mode to 100m (300') Class 1 operation. Choose the right level for your operation to minimize interference with other cordless devices and maximize data transmission and worker productivity
Simple to Support
Designed to make it easy to support the Granit 191Xi offers:
•Single screw, slide release for cable installation and replacement
•Twist and turn battery compartment release make swopping out batteries quickly and easily
•Multi-interface with automatic interface detection and configuration
•2000 mAh Li-ion battery supports 14 hrs of constant usage
Service Made Simple™
Service Made Simple™ is Honeywell’s affordable solution for customers who require easy, hassle-free repair service for their hand-held, hands-free and bioptic scanners, as well as mobile computers. Service Made Simple helps customers ensure their data capture devices are running at peak performance.
•3 year program
•Full comprehensive coverage for normal wear and tear, as well as accidental breakage
•Engineering changes and firmware upgrades included
•Expedited return freight
For more information on Service Made Simple, please contact your local Honeywell representative.
Honeywell Remote MasterMind™
Managing devices, and deploying and managing applications has never been easier, thanks to Honeywell's Remote MasterMind™ device management software. With Remote MasterMind, all mobile devices deployed within a network, including Apple® iOS devices, can be managed remotely from a central location:
•Asset tracking
•Software and configuration updates
•Device security and lockdown
•Remote control, diagnostic & troubleshooting
•Real-time or point-in-time insights into dozens of device performance metrics
Granit 1911i
Wireless Industrial-Grade Area-Imaging
The Granit™ 1911i wireless industrial-grade area-imaging scanner is designed to withstand the varied demands that exist in harsh working environments. Featuring a custom built housing that is redefining the standard for scanner reliability, the IP65 rated Granit 1911i is built to survive 5,000 3.3´ (1 m) tumbles and 50 drops to concrete from 6.5´ (2 m) even at -4°F (-20°C). As a result, businesses can expect to experience minimal device downtime and a lower overall cost of ownership.
Powered by Honeywell’s Adaptus™ 6.0 imaging technology and its revolutionary decoding architecture, the Granit 1911i provides users with the same exceptional bar code reading performance as the bestin-class Xenon™ series of area-imaging scanners. From poorly printed and damaged codes to low density linear codes, the Granit 1911i is built to read virtually all bar codes with ease—supporting maximum operator productivity with its enhanced illumination, crisp laser aiming and extended depth-of-field.
The Granit 1911i also incorporates a Bluetooth® Class 1, v2.1 radio,
enabling wireless connectivity and unrestricted movement up to 300 feet (100 m) from the base. Additionally, with Honeywell’s Shift-PLUS power management system users can expect up to 14 hours of battery life reducing the cost associated with battery backups and replacements.
A paging system is also available for added convenience to assist with locating misplaced scanners.
Created specifically for applications in which high performance scanning is expected and durability is highly valued, the Granit 1911i is the optimal solution for businesses operating in unpredictable conditions.
Features
• Class-Leading Durability: The custom-built IP65-rated housing is able to withstand 5,000 3.3´ (1 m) tumbles and survive 50 drops from 6.5´ (2 m) at -4°F (-20°C) reducing service costs and increasing device uptime
• Wireless Connectivity: Bluetooth® Class 1, v2.1 radio enables movement up to 300´ (100 m) from base, and reduces interference with other wireless systems. Up to 7 imagers can communicate with a single base, reducing
the total cost of ownership
• TotalFreedom™ 2.0: The second-generation of Honeywell’s area-imaging development platform enables the loading and linking of multiple applications to
enhance image decoding, data formatting and image processing—eliminating the need for host system modifications
• Long-Lasting Lithium-Ion Battery: Powers up to 50,000 scans per full charge and is removable without tools ensuring maximum uptime for operations running
multiple shifts
• Extended Linear Depth of Field: Scans out-of-reach items with ease and allows users to scan 20 mil linear codes out to 29.5˝ (75 cm) without sacrificing
performance on 2D codes
• Remote MasterMind™ Scanning Management Software:
Quick and convenient solution for IT administrators seeking to manage the scanners within their network from a single remote location
Granit 1911i Technical Specifications
Wireless
Radio/Range:
2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 1: 100m (300’) line of sight
Data Rate (Transmission Rate) Up to 1 Mbits/S
Battery 2000 mAh Li-ion minimum
Number of Scans Up to 50,000 scans per charge
Expected Hours of Operation 14 hours
Expected Charge Time* 4.5 hours
Mechanical/Electrical
Scanner (1911iER-3)
Dimensions (LxWxH) 133 mm x 75 mm x 195 mm (5.2˝ x 2.9˝ x 7.6˝)
Weight 380 g (13.4 oz)
Operating Power (Charging) N/A
Non-Charging Power N/A
Host System Interfaces N/A

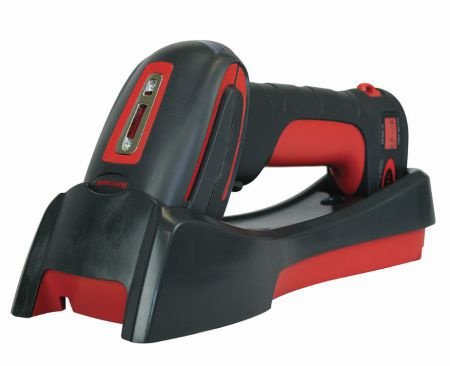

Charger/Communication Base (COB02/CCB02-100BT-07N)
Dimensions (LxWxH) 250 mm x 103 mm x 65 mm (9.9˝ x 4.1˝ x 2.6˝)
Weight 290 g (10.2 oz)
Operating Power (Charging) 5 W (1A at 5 V)
Non-Charging Power 0.6 W (0.12A at 5 V)
Host System Interfaces USB, Keyboard Wedge, RS232 TTL
Environmental
Scanner (1911iER-3)
Operating Temperature** -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity Up to 95% relative humidity, non-condensing
Drop Designed to withstand 50 2 m (6.5´) drops to concrete at -20°C
Tumble 5,000 1m (40˝) tumbles
Environmental Sealing IP65
Light Levels 0 to 100,000 lux (9,290 foot-candles)
ESD ±20Kv air discharge, ±8kV contact discharge
Charger/Communication Base (COB02/CCB02-100BT-07N)
Operating Temperature** -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity Up to 95% relative humidity, non-condensing
Drop Designed to withstand 50 1.2 m (4´) drops to concrete at -20°C
Tumble 5,000 1m (40˝) tumbles
Environmental Sealing IP51
Light Levels N/A
ESD ±20Kv air discharge, ±8kV contact discharge
Scan Performance
Scan Pattern Area Imager (838 x 640 pixel array)
Motion Tolerance:
Up to 610 cm/s (240 in/s) at 16.5 cm (6.5˝) and 381 cm/s (150 in/s) at 25 cm (10.0˝) for 13 mil UPC
Scan Angle ER Focus: Horizontal: 31.6°; Vertical: 24.4°
Symbol Contrast 20% minimum reflectance difference
Pitch, Skew 45°, 65°
Warranty 3 year factory warranty (Note: battery warranty is 1 year)
*battery charging only occurs between 5° C and 40°C;
**with industrial grade cable ordered separately
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Typical Performance* Extended Range (ER)
Narrow Width
7.5 mil Code 39 48 mm - 310 mm (1.9˝ – 12.2˝)
13 mil UPC 15 mm - 543 mm (0.6˝ - 21.4˝)
20 mil Code 39 15 mm - 749 mm (0.6˝ - 29.5˝)
6.7 mil PDF417 69 mm - 226 mm (2.7˝ - 8.9˝)
10 mil DM** 71 mm - 261 mm (2.8˝ - 10.3˝)
20 mil QR 20 mm - 495 mm (0.8˝ - 19.5˝)
Resolution 1D Code 39 5 mil (0.127 mm)
Resolution 2D DM** 7.5 mil (0.191 mm)
*Performance may be impacted by bar code quality and environmental conditions
**Data Matrix (DM)
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell Granit 1911i, BT, 2D, ER, red (hw1911 - 1911iER-3)
Bluetooth scanner, industry, 2D, imager, extended range, vibration, range: 100 m, IP65, order separately: interface cable, charging/transmitter cradle, colour: red
-Honeywell Granit 1911i, BT, 2D, ER, kit (USB), red
(hw1911u - 1911iER-3USB-5)
Bluetooth scanner, industry, 2D, imager, extended range, vibration, range: 100 m, IP65, incl.: cable (USB), charging/transmitter cradle, colour: red
Garantie: 36 maanden
Beschikbaar toebehoren:
-Honeywell KBW-cable (hw1200cabkbw - CBL-720-300-C00)
KBW-cable, coiled, black, 3m
-Honeywell USB-cable (hw1200ucab - CBL-500-300-C00)
USB-cable, coiled, black, 3m
-Honeywell USB-cable (hw1200ucab2 - CBL-500-300-S00)
USB-cable, straight, black, 3m
-Honeywell USB-cable (hw1200ucab3 - CBL-500-500-C00)
USB-cable, coiled, black, 16.4'
-Honeywell Stand (hw1910flstand - STND-33F00-012-4)
Stand, height: 33cm, flexible rod, color: grey, for Honeywell Granit
-Honeywell holder (hw1910hold - HOLDER-010-U)
Holder for desktop/wall mount, incl. mounting hardware, for Honeywell Granit
-Honeywell Stand (hw1910stand - STND-30R00-011-4)
Stand, height: 30cm, rigid rod, color: grey, for Honeywell Granit
-Honeywell cradle (hw1911crd - CCB02-100BT-07N)
Cradle, Class 1 Bluetooth, range: 100m, up to 7 scanners can be connected, host multi-interfaces (RS232/USB/KBW), please order separately: interface cable, for Honeywell Granit
-Honeywell battery (hw1911bat - BAT-SCN01)
Battery for Honeywell Granit 1911i
-Honeywell charger (hw1911chg - COB02)
Singel-charger base, please order separately: power supply, for Honeywell Granit
-Honeywell cradle (hw1911crd - CCB02-100BT-07N)
Cradle, Class 1 Bluetooth, range: 100m, up to 7 scanners can be connected, host multi-interfaces (RS232/USB/KBW), please order separately: interface cable, for Honeywell Granit
-Honeywell Holster (hw1911holster - HOLSTER-INDUSTRIAL)
Holster for Honeywell Granit 1911i
-Honeywell Kabel, RS232 (hwcab020 - CBL-020-300-C00)
RS232 Cable, 5V, DB9 Female, coiled, black, 3m
-Honeywell Cable, RS232, coiled, black (hwcab320 - CBL-320-300-C00)
RS232-Kabel (+/-12V signals), 3m (coiled), external power with option for host power on pin 9, black
-Honeywell Power Supply (hwpsu5v4 - PS-05-1000W-C)
Power supply, 5V, 90-255VAC, EU Plug
-Honeywell USB cable, black, 3m, coiled (hwucab12 - CBL-503-300-C00)
Cable: USB, black, 12V locking, 3m (9.8´), coiled, 5V host power
Prijs op aanvraag!
Als administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
bedienen wij onder meer het Midden- en Kleinbedrijf,
de motor van onze economie.
U kunt altijd een geheel vrijblijvende offerte aanvragen.
Mailt u ons:
- Aantal en type
- Naam Bedrijf (indien van toepassing)
- Naam Contactpersoon
- Adres
- Postcode
- Plaats
- Telefoonnummer
- E-mailadres
- Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
- B.T.W. nummer (indien van toepassing)
Bezorging aan huis!
Voor meer informatie kunt u altijd bij voorkeur per mail
contact opnemen.
Wat kunt u allemaal van ons aan informatie krijgen:
- Producthandleiding in pdf (per mail)
- Geheel vrijblijvende offerte met daarbij:
* drivers
* tools
* handleidingen
* demonstratie video product (afhankelijk van beschikbaarheid)
U kunt zich ook aanmelden voor onze geheel vrijblijvende
periodieke mailings
Wilt u daarbij vermelden:
-Naam Bedrijf (indien van toepassing)
-Naam Persoon
-Adres
-Postcode
-Woonplaats
-Telefoonnummer
-E-mailadres
-Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
-B.T.W. nummer (indien van toepassing)
Deze producten worden nog niet op onze website vermeld.
Met vriendelijke groet,
Maarten Ritmeester
Administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
Nijkerk
- ook voor al uw Point Of Sale producten -
ZATERDAG EN ZONDAG GESLOTEN


Reageer op deze advertentie

Je moet ingelogd zijn om te reageren op een advertentie.
