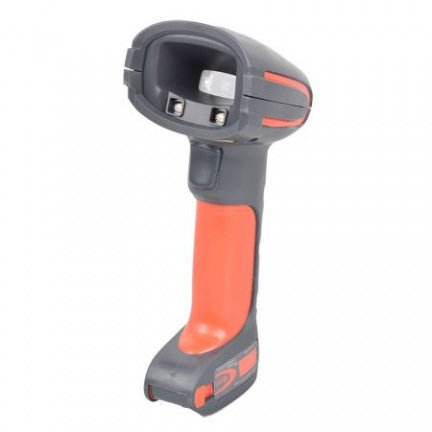

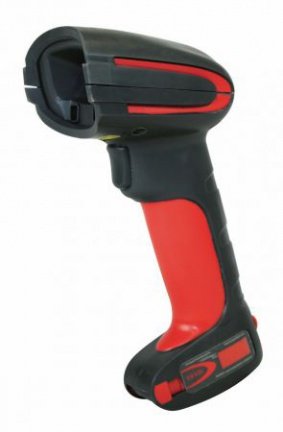

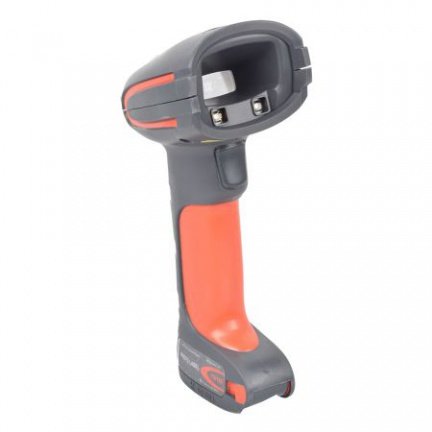

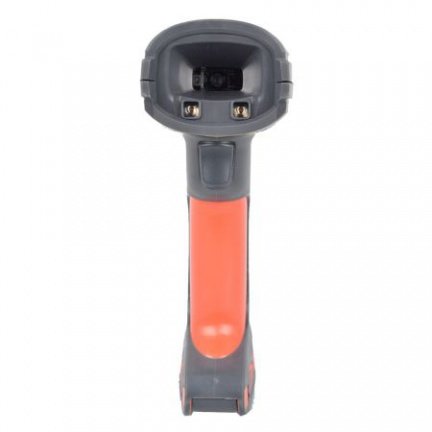

Honeywell Granit 1910i 2D Industrial barcode scanner

Bewaar
  • Aantal keer bekeken 164x bekeken
  • Datum geplaatst 8 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

Robust area imager for the industry
Honeywell Granit 1910i
2D high performance imager with industrial housing
Efficient: triple feedback for noisy environments
Top reading performance thanks to Adaptus 6.0 Imaging Technology
Crash-resistant even if it falls from up to 2 m in height
IP65 protection and reliability under extreme -30 ° C to 50 ° C
The Granite 1910i from Honeywell lives up to its name: it is the rock-hard 2D area imager that offers more performance for less money. Inside is the same powerful scanning engine as in the best in its class, Honeywell Xenon. The housing is shock-resistant, splash water-resistant according to IP65 and thus perfectly suited for applications in the industry and warehousing. Here, reliability in the field of extremes from -30 ° C to +50 ° C is equally high at all times. This ensures continuous use, even in cold storage and in heavy industry.
Thanks to proven Adaptus Imaging Technology 6.0 it captures 1D, 2D and PDF barcodes quickly and reliably. The Granit 1910i even correctly decodes damaged or illegible codes with at least 20% of the granite contrast. Especially in noisy or poorly lit environments, the triple feedback feature pays for itself: vibration (optional), beeper and LEDs provide quick and efficient work, and are adjustable according to the requirement. When aiming, both the bright target cross and the boundary lines in the field of view helped.
Granit 1910i Industrial-Grade Area-Imaging Scanner
The Granit™ 1910i industrial-grade area-imaging scanner is designed to withstand the varied demands that exist in harsh working environments. Featuring a custom built housing that is redefining the standard for scanner reliability, the IP65 rated 1910i is built to survive 5,000 3.3´(1 m) tumbles and 50 drops to concrete from 6.5´ (2 m) even at -22°F (-30°C). As a result, businesses deploying this industry leading offering can expect to experience minimal device downtime and a lower overall cost of ownership.
About the Granit 191Xi
Granit 191Xi has been built from-the-ground-up to withstand just about anything it might face in your harsh, demanding environments redefining the standard for durable hand-held scanners. Featuring a custom built housing that meets IP65 dust and water protection standards, withstands 5,000 1m tumbles, and survives 50 2m drops to concrete even at extreme temperatures, Granit 191Xi offers industry leading durability. As a result businesses experience minimal downtime, and lower service costs enjoying a low total cost of ownership
Durability
Built to last with the highest durability rating in its class
•Only 2D industrial scanner specified to 5,000 1m tumbles
•Proven to survive 50 2m drops to concrete even at extreme temperatures
•IP65 sealing prevents dust and water from entering
•Highest durability rating in its class
As a result business experience minimal downtime and lower replacement cost enjoying a low total cost of ownership
Proven Platform
Built on the same platform and core architecture as Honeywell's Xenon the Granit 191Xi incorporates all of the same technology advances and performance in an industrial scanner plus:
•Increased motion tolerance for aggressive reading of the most common 1D, Stacked, and 2D symbologies used today
•Enhanced reading on poor quality and damaged barcodes
•Uses the same menuing commands
Maximizing employee's productivity while lowering service and maintenance costs
Adaptus 6.0 Performance
Adaptus 6.0's revolutionary decoding architecture takes the scanning experience to a whole new level
•Faster reading times
•Excellent motion tolerance
•Longer reading distances
•Performs in all types of lighting conditions
Fast and more accurate reading of bar codes increase employee productivity, reduces the risks of manual entry allowing the employee to accomplish more in less time with less errors
Extended Linear Depth-of-Field
Extended Range (ER) optics, Adaptus 6.0 architecture, and burst illumination all combine for extended reading distance without sacrificing motion tolerance
•Ideal for mixed symbology environments
•No more step stools or kneeling in order to scan bar codes found on the top or bottom shelf
•Faster reading times
Reducing operating costs by increasing employee productivity, minimizing the risk of manual entry, and reducing the potential for employee accidents
Intuitive User Feedback
Loud machinery and poor lighting conditions make it challenging for employees to know when scanning has occurred wasting valuable time. The Granit 191Xi features:
•Bright laser aimer guides employees quickly and easily to the bar code even at long distances
•Good read indicators that can be seen from any angle
•Louder beeper that can be heard even in nosy environments
Ease of use improves user satisfaction, increases worker productivity, and reduces operating costs
Flexible Radio Management
The Granit 1911i cordless scanner BlueTooth power level is configurable from low transmit mode to 100m (300') Class 1 operation. Choose the right level for your operation to minimize interference with other cordless devices and maximize data transmission and worker productivity
Simple to Support
Designed to make it easy to support the Granit 191Xi offers:
•Single screw, slide release for cable installation and replacement
•Twist and turn battery compartment release make swopping out batteries quickly and easily
•Multi-interface with automatic interface detection and configuration
•2000 mAh Li-ion battery supports 14 hrs of constant usage
Service Made Simple™
Service Made Simple™ is Honeywell’s affordable solution for customers who require easy, hassle-free repair service for their hand-held, hands-free and bioptic scanners, as well as mobile computers. Service Made Simple helps customers ensure their data capture devices are running at peak performance.
•3 year program
•Full comprehensive coverage for normal wear and tear, as well as accidental breakage
•Engineering changes and firmware upgrades included
•Expedited return freight
For more information on Service Made Simple, please contact your local Honeywell representative.
Honeywell Remote MasterMind™
Managing devices, and deploying and managing applications has never been easier, thanks to Honeywell's Remote MasterMind™ device management software. With Remote MasterMind, all mobile devices deployed within a network, including Apple® iOS devices, can be managed remotely from a central location:
•Asset tracking
•Software and configuration updates
•Device security and lockdown
•Remote control, diagnostic & troubleshooting
•Real-time or point-in-time insights into dozens of device performance metrics
Granit 1910i
Industrial-Grade Area-Imaging Scanner
The Granit™ 1910i industrial-grade area-imaging scanner is designed to
withstand the varied demands that exist in harsh working environments.
Featuring a custom built housing that is redefining the standard for scanner reliability, the IP65 rated 1910i is built to survive 5,000 3.3´ (1 m) tumbles and 50 drops to concrete from 6.5´ (2 m) even at -22°F (-30°C). As a result, businesses deploying this industry leading offering can expect to experience minimal device downtime and a lower overall cost of ownership.
Powered by Honeywell’s Adaptus™ 6.0 imaging technology and its revolutionary decoding architecture, the Granit 1910i provides users with the same exceptional bar code reading performance as the bestin-class Xenon series of area-imaging scanners. From poorly printed and damaged codes to low density linear codes, the 1910i is built to read virtually all bar codes with ease—supporting maximum operator productivity with its enhanced illumination, crisp laser aiming and extended depth-of-field.
Additionally, loud machinery and poor lighting conditions often pose a challenge for operators who rely on scanner feedback as confirmation of “good reads.” The 1910i meets this challenge with bright LEDs, enhanced beeper volume and vibrating feedback response—ensuring rapid decode feedback and eliminating redundant scanning.
Created specifically for applications in which high performance scanning is expected and durability is highly valued, the Granit 1910i is the optimal solution for businesses operating in unpredictable conditions.
Features
• Class-Leading Durability: The custom built IP65-rated housing is able to withstand 5,000 3.3´ (1 m) tumbles and survive 50 drops from 6.5´ (2 m) at -30°C (-22°F) reducing service costs and increasing device uptime
• Optimized for Scanning-Intensive Industrial Applications:
Adaptus 6.0 Imaging Technology provides aggressive bar code reading and unrivaled accuracy while the scanner feedback is enhanced for use in extreme environments
• TotalFreedom™ 2.0: The second-generation of Honeywell’s area-imaging development platform enables the loading and linking of multiple applications to
enhance image decoding, data formatting and image processing—eliminating the need for host system modifications
• Outstanding Scan Performance on Poor Quality and Damaged Bar Codes: Maintains productivity by providing a worry-free scanning solution that minimizes
manual entry
• Extended Linear Depth of Field: Scans out-of-reach items with ease and allows users to scan 20 millinear codes out to 29.5˝ (75 cm) without sacrificing
performance on 2D codes
• Remote MasterMind™ Scanning Management Software:
Quick and convenient solution for IT administrators seeking to manage the scanners within their network from a single remote location
Granit 1910i Technical Specifications
Mechanical
Dimensions (LxWxH) 133 mm x 75 mm x 195 mm (5.2˝ x 2.9˝ x 7.6˝)
Weight 300 g (10.6 oz)
Electrical
Input Voltage 4.0 to 5.5 VDC
Operating Power 2.35 W (470mA at 5 VDC)
Standby Power 0.5 W (100mA at 5 VDC)
Host System Interfaces USB, Keyboard Wedge, RS232 TTL
Environmental
Operating Temperature* -30°C to 50°C (-22°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity Up to 95% relative humidity, non-condensing
Drop Designed to withstand 50 2 m (6.5´) drops to concrete at -30°C
Tumble 5,000 1m (40˝) tumbles
Environmental Sealing IP65
Light Levels 0 to 100,000 lux (9,290 foot-candles)
ESD ±20Kv air discharge, ±8kV contact discharge
Scan Performance
Scan Pattern Area Imager (838 x 640 pixel array)
Motion Tolerance:
Up to 610 cm/s (240 in/s) at 16.5 cm (6.5”) and 381 cm/s (150 in/s) at 25 cm (10.0”) for 13 mil UPC
Scan Angle ER Focus: Horizontal: 31.6°; Vertical: 24.4°
Symbol Contrast 20% minimum reflectance difference
Pitch, Skew 45°, 65°
Warranty 3 year factory warranty
*with industrial grade cable ordered separately
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Typical Performance* Extended Range (ER)
Narrow Width
7.5 mil Code 39 48 mm - 310 mm (1.9˝ – 12.2˝)
13 mil UPC 15 mm - 543 mm (0.6˝ - 21.4˝)
20 mil Code 39 15 mm - 749 mm (0.6˝ - 29.5˝)
6.7 mil PDF417 69 mm - 226 mm (2.7˝ - 8.9˝)
10 mil DM** 71 mm - 261 mm (2.8˝ - 10.3˝)
20 mil QR 20 mm - 495 mm (0.8˝ - 19.5˝)
Resolution 1D Code 39 5 mil (0.127 mm)
Resolution 2D DM** 7.5 mil (0.191 mm)
*Performance may be impacted by bar code quality and
environmental conditions
**Data Matrix (DM)
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell Granit 1910i, 2D, ER, USB, RS232, PS/2, red (hw1910 - 1910iER-3)
handheld scanner, industry, 2D, imager, extended range, vibration, USB, RS232, PS/2, IP65, order separately: interface cable, colour: red
-Honeywell Granit 1910i, 2D, ER, USB, RS232, PS/2, kit (USB), red
(hw1910u - 1910iER-3USB)
handheld scanner, industry, 2D, imager, extended range, vibration, USB, RS232, PS/2, IP65, incl.: cable (USB), colour: red
Garantie: 36 maanden
Beschikbaar toebehoren:
-Honeywell KBW-cable (hw1200cabkbw - CBL-720-300-C00)
KBW-cable, coiled, black, 3m
-Honeywell USB-cable (hw1200ucab - CBL-500-300-C00)
USB-cable, coiled, black, 3m
-Honeywell USB-cable (hw1200ucab2 - CBL-500-300-S00)
USB-cable, straight, black, 3m
-Honeywell USB-cable (hw1200ucab3 - CBL-500-500-C00)
USB-cable, coiled, black, 16.4'
-Honeywell Stand (hw1910flstand - STND-33F00-012-4)
Stand, height: 33cm, flexible rod, color: grey, for Honeywell Granit
-Honeywell holder (hw1910hold - HOLDER-010-U)
Holder for desktop/wall mount, incl. mounting hardware, for Honeywell Granit
-Honeywell Stand (hw1910stand - STND-30R00-011-4)
Stand, height: 30cm, rigid rod, color: grey, for Honeywell Granit
-Honeywell Kabel, RS232 (hwcab020 - CBL-020-300-C00)
RS232 Cable, 5V, DB9 Female, coiled, black, 3m
-Honeywell Cable, RS232, coiled, black (hwcab320 - CBL-320-300-C00)
RS232-Kabel (+/-12V signals), 3m (coiled), external power with option for host power on pin 9, black
-Honeywell Power Supply (hwpsu5v4 - PS-05-1000W-C)
Power supply, 5V, 90-255VAC, EU Plug
-Honeywell USB cable, black, 3m, coiled (hwucab12 - CBL-503-300-C00)
Cable: USB, black, 12V locking, 3m (9.8´), coiled, 5V host power
Prijs op aanvraag!
