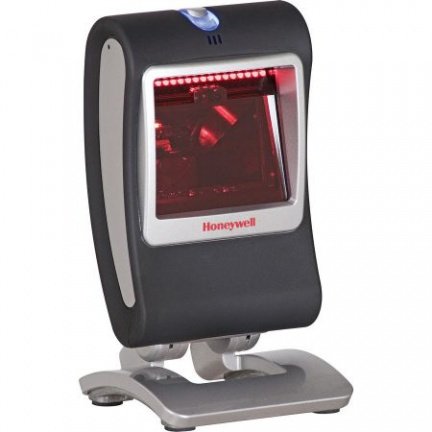

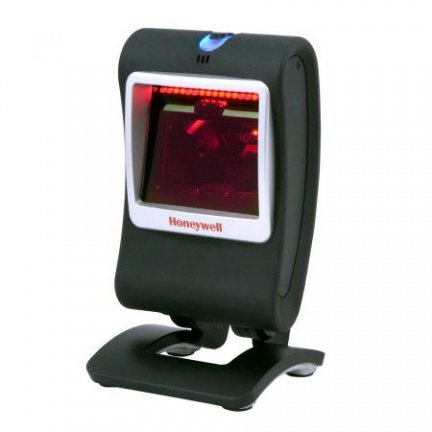

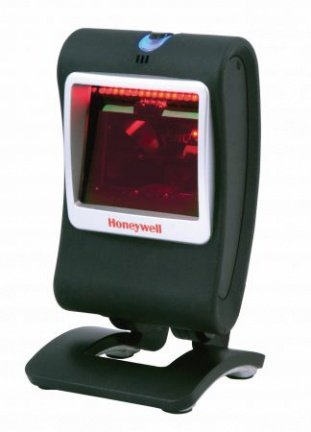

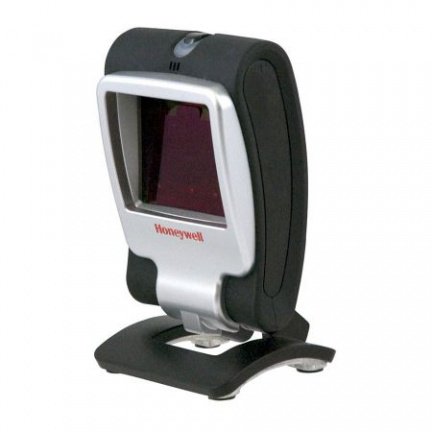

Honeywell Genesis 7580 Presentation area imager

Bewaar
  • Aantal keer bekeken 137x bekeken
  • Datum geplaatst 8 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

Presentation area imager for all 1D, 2D and PDF barcodes
Honeywell Genesis 7580
Presentation area imager for all 1D, 2D and PDF barcodes
Compact industrial ultra flat housing
Unrivalled design and performance: perfect for pharmacy, hospitality, POS and marketing
Multi-interface with memory: reduces costs and guarantees a minimum of configurations
Honeywell’s Genesis 7580 is the world’s first presentation area imager engineered to decode all standard 1D, PDF and 2D codes. It impresses through features such as the progressive revolutionary imaging technology with enhanced efficiency, the elegant, yet durable design, as well as the shallow housing.
The Honeywell Genesis area imager is a presentation scanner destined to redefine industry standards for imaging solutions. Breakthrough performance and a versatile form make this product suitable for environments ranging from manufacturing, medical or retail POS, as well as chemist’s shops, medical supply stores, etc.
The Genesis 7580 is extremely robust, as its internal assembly consists of only a single circuit board without any plug connections, cables or other moveable parts. Up to now, users faced a recurring problem in presentation scans as they would be dazzled by the intense flashing of the LEDs. The Genesis avoids this by placing the LEDs in the upper rim of the depressed frame within the scanner window. Moreover, with the FirstFlash technology the barcodes are scanned with the initial flashing of the LEDs, thereby minimising frequent illumination.
The patented CodeGate technology, with its centrally located activation button, supports menu-scanning and other targeted-scanning applications. CodeSelect allows the Genesis 7580 to capture up to seven barcodes in a single flash and outputs data in any predetermined order. Optionally the Genesis 7580 also offers a practical EAS function: simultaneous barcode scanning and label deactivation increases employee efficiency.
Unlike other scanners with multiple on-board interfaces, with Genesis only the connection cable is replaced and the respective supplementary settings are automatically recognised. In addition, the Genesis 7580 stores special configuration settings for each of the four interfaces in order to avoid loss of settings when changing cables. Also available is TotalFreedom, a programming software independent from the operating system. This software enables customised processing of data in the scanner, which translates into less or no programming work for the administrator.
Best reading features with FirstFlash
Genesis 7580 Area-Imaging Scanner
Honeywell's Genesis 7580, the world’s first presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. Breakthrough performance and a versatile form factor make this presentation scanner suitable for environments ranging from manufacturing to healthcare to retail POS.
Genesis 7580
Area-Imaging Scanner
Honeywell’s GenesisTM 7580, the world’s first presentation area-imaging
scanner engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design.
The 7580 is redefining industry standards for imaging solutions.
Breakthrough performance and a versatile form factor make this product
suitable for environments ranging from manufacturing to healthcare to retail POS.
Patented CodeGate® technology along with an activation button support
menu-scanning and other targeted-scanning applications.
Unlike other scanners with multiple on-board interfaces, the 7580 has four dedicated memory banks—each one capable of storing full configuration settings for RS232, keyboard wedge, USB and 46xx RS485 interfaces.
Automatic cable detection and configuration simplifies migration to a new interface by eliminating the need to scan programming bar codes. Three additional patented technologies augment the 7580’s unmatched feature set:
Shielded LEDs minimize the intense flashing common among other area imagers.
CodeSelectTM allows the 7580 to capture up to seven bar codes in a single flash and output data in any predetermined order.
TotalFreedom® expands scanner funtionality by allowing formatting, parsing and decoding plug-ins to be loaded directly to the 7580 instead of the host system.
Features
• Motion Tolerance: Aggressively reads bar codes passing by the scan window
• Multiple On-Board Interfaces: Reduces overall system cost
• TotalFreedom: Load image processing, decoding and formatting plug-ins directly on the scanner instead of the host system
• Image Capture: Improves document management by capturing and storing electronic images, including coupons, personal checks, signatures and damaged packages
• Mobile Phone Reading: Excels at scanning coupons and mobile tickets directly from the screen of a mobile device
• Flexible Licensing Solution: Meets diverse scanning requirements by offering models with limited decoding capabilities—purchase decoding licenses to enable additional functionality as the need arises
• CodeSelect: Scans up to 7 bar codes in a single flash and outputs data in any predetermined order
• Optional EAS: Increases efficiency by simultaneously deactivating EAS tags and decoding bar codes from up to 7 inches away
Genesis 7580 Technical Specifications
Mechanical
Dimensions (LxWxH) 80 mm x 83 mm x 150 mm (3.2˝ x 3.3˝ x 5.9˝)
Weight 340 g (12 oz)
Electrical
Input Voltage 12 VDC ± 0.25 V
Operating Power 2.0 W (167 mA at 12 V)
Standby Power 1.3 W (109 mA at 12 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Auxiliary Ports EAS with interlock (EAS model)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 100,000 Lux
Scan Performance
Scan Pattern Area Image (832 x 504 pixel array)
Motion Tolerance 200 cm/s (78 in/s) for 13 mil UPC at optimal focus
Scan Angle Horizontal: 46°; Vertical: 28°
Print Contrast 20% minimum reflectance difference
Pitch, Skew 70°, 75°
Decode Capability:
Reads standard 1D, PDF, 2D, Postal and OCR symbologies
*Note: Decode capabilities dependent on kit configuration
Warranty 2 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Typical Performance*
Narrow Width Depth of Field
5.0 mil (1D) 10 mm - 80 mm (0.4˝ - 3.1˝)
7.5 mil (1D) 10 mm - 125 mm (0.4˝ - 4.9˝)
10.4 mil (1D) 0 mm - 130 mm (0˝ - 5.1˝)
13 mil (1D) 0 mm - 158 mm (0˝ - 6.2˝)
10.0 mil (PDF) 10 mm - 145 mm (0.4˝ - 5.7˝)
15.0 mil (DM) 10 mm - 135 mm (0.4˝ - 5.3˝)
*Resolution: 1D: 4 mil (0.102 mm) 2D: 7.5 mil (0.19 mm)
*Performance may be impacted by bar code quality and environmental conditions
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell Genesis 7580, 2D, multi-IF, kit (KBW), silver/black
(ms7580w - MK7580-30C47-02)
presentation scanner, retail, 2D, imager, CodeGate function, multi-interface (RS232, KBW, USB), incl.: cable (KBW), colour: silver/black
-Honeywell Genesis 7580, 2D, multi-IF, kit (USB), silver/black
(ms7580u - MK7580-30C38-02-A)
presentation scanner, retail, 2D, imager, CodeGate function, multi-interface (RS232, KBW, USB), incl.: cable (USB), power supply unit, colour: silver/black
-Honeywell Genesis 7580, 1D, multi-IF (IBM), silver/black
(ms7580 - MS7580-124-00)
presentation scanner, retail, 1D, CodeGate function, multi-interface (RS232, KBW, USB, IBM), order separately: interface cable, power supply unit, power cable, colour: silver/black
-Honeywell Genesis 7580, 2D, multi-IF, kit (RS232), silver/black
(ms7580rps - MK7580-30C41-02)
presentation scanner, retail, 2D, imager, CodeGate function, multi-interface (RS232, KBW, USB), incl.: cable (RS232), power supply unit, colour: silver/black
Garantie: 24 maanden
Uitbreiding garantie met:
-Garantieverlenging: +9%
-PE Service +8%
Beschikbaar toebehoren:
-Honeywell wall mount (ms7580sta2 - 46-00913)
MS7580 stand for wall mount
-Honeywell wall mount kit (ms7580wallk - 46-00911-R)
Wall mount adaptor kit for MS7580
-Honeywell cable (mscabk2 - 5S-5S002-3)
Honeywell cable, kbw, length: 2.9m, straight, external power connector, colour: black
-USB cable (mskabusb6 - 5S-5S235-3)
Honeywell USB cable, type-A, 2.9 m, straight, 12V power connector
-Honeywell Power Supply (EU) (msnteu2 - PS-12-1250W-C)
Power supply (EU) for Honeywell Solaris 7820 and Genesis 7580
-Honeywell Power Supply (UK) (msntuk7 - PS-12-1250W-G)
Power supply (UK) for Honeywell Solaris 7820 and Genesis 7580
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
Type Art.nr.fabr.
-Scanner-only: 1D, PDF417, 2D, black, RS232-TTL/USB/KBW/IBM 46xx RS485, Installation & User´s Guide MS7580-124-02
-Scanner-only: 1D, PDF417, 2D, black, EAS, RS232-TTL/USB/KBW, IBM 46xx RS485 via cable, Installation & User´s Guide MS7580-124-02-EAS
-Software: 2D decoding license key for MS7580 Genesis SW-2D-7580
-6ps RS232 straight power link 1.5m cable, black 5S-5S088-3
-Software: OCR decoding license key for MS7580 Genesis SW-OCR-7580
-Cable: RS232, black, DB9 female, 2.9m (9.5´), straight, 12V external power, EAS MX-5S114-E-3
-Software: PDF417 decoding license key for MS7580 Genesis SW-PDF-7580
-Cable: USB, black, Type A, 2.9m (9.5´), straight, 12V external power, EAS MX-5S236-E-3
-Cable: IBM 46xx, black, 4-pin SDL, 2.9m (9.5?), straight, host power 5S-5S006-N-3
-7580 Genesis, SMS, 1-day turnaround, Comprehensive coverage, 1-Year, Post Sale, must be purchased within 1 year of hardware or on time renewal of SMS3 E-HSVC7580-SMS1
Prijs op aanvraag!
Als administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
bedienen wij onder meer het Midden- en Kleinbedrijf,
de motor van onze economie.
U kunt altijd een geheel vrijblijvende offerte aanvragen.
Mailt u ons:
- Aantal en type
- Naam Bedrijf (indien van toepassing)
- Naam Contactpersoon
- Adres
- Postcode
- Plaats
- Telefoonnummer
- E-mailadres
- Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
- B.T.W. nummer (indien van toepassing)
Bezorging aan huis!
Voor meer informatie kunt u altijd bij voorkeur per mail
contact opnemen.
Wat kunt u allemaal van ons aan informatie krijgen:
- Producthandleiding in pdf (per mail)
- Geheel vrijblijvende offerte met daarbij:
* drivers
* tools
* handleidingen
* demonstratie video product (afhankelijk van beschikbaarheid)
U kunt zich ook aanmelden voor onze geheel vrijblijvende
periodieke mailings
Wilt u daarbij vermelden:
-Naam Bedrijf (indien van toepassing)
-Naam Persoon
-Adres
-Postcode
-Woonplaats
-Telefoonnummer
-E-mailadres
-Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
-B.T.W. nummer (indien van toepassing)
Deze producten worden nog niet op onze website vermeld.
Met vriendelijke groet,
Maarten Ritmeester
Administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
Nijkerk
- ook voor al uw Point Of Sale producten -
ZATERDAG EN ZONDAG GESLOTEN
