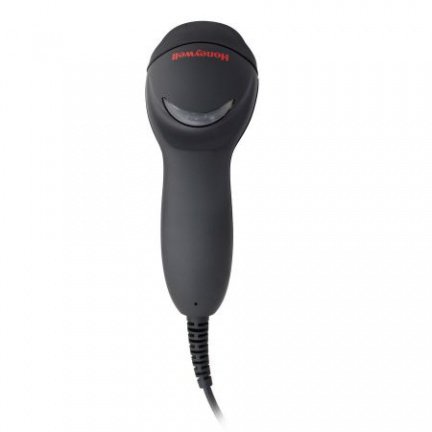

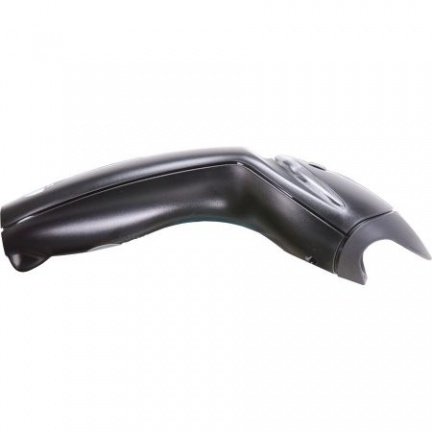

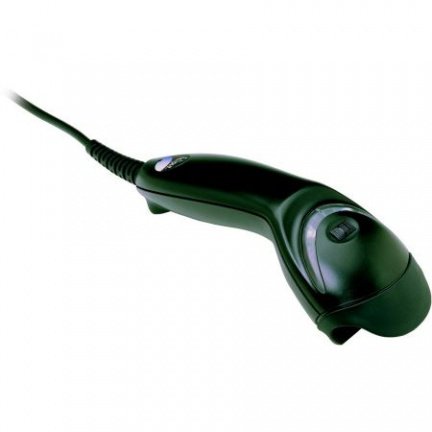

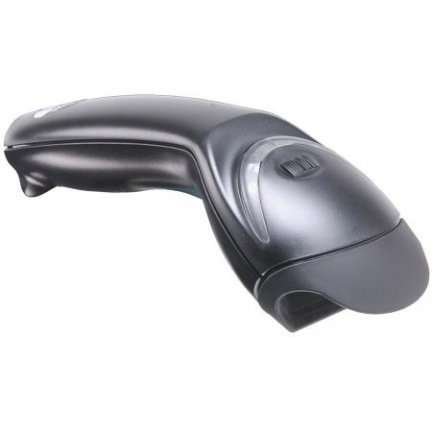

Honeywell Eclipse 5145, 1D, HD, kit (USB), black zwart (ms5145uss - MK5145-32A38-EU)
handheld scanner, retail, 1D, laser, high density, 0-14cm reading distance, 72 scans/sec., incl.: cable (USB), desk holder, colour: black
Miniature laser scanner for small and high-densitiy barcodes
Honeywell Eclipse 5145
Compact hand-held laser scanner for all barcodes
Scanning range 0-14 cm at 72 scans/sec.
Very fast decoding
Aggressive, single-line laser for fast scanning with CodeGate technology
Suitable for high resolution barcodes
The Eclipse 5145 is a powerful single-line hand-held barcode scanner for all popular barcode types. A compact housing and a vast range of programming and connectivity options make it the perfect all-round scanner for many typical barcode applications.
With its modern laser engine, the Eclipse 5145 has a larger scanning range and wider scan field than any other CCD scanner. It provides aggressive scanning at high rates and can even read high resolution or small barcodes without errors. This allows not only cash desk applications, but also for example at the jewellers’ shop, or for scanning tiny electronic components or mechanical elements. Its design and compact housing allow application even under the most undesirable conditions: repeated drops from 1.5 m onto concrete do not effect its reliability. A sealed housing protects it from air pollution and dust. The Eclipse 5145 has an operating temperature range from 0°C to 40°C, and thus covers the entire range of food logistics storage temperatures. The low weight of only 97 g makes it one of the lightest available hand-held scanners, and ergonomically improves daily operation efficiency.

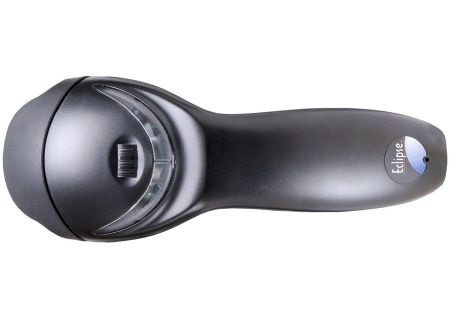

The optional CodeGate function first buffers all scanned data, and once the user presses the CodeGate button the scanned data is released and transferred to the computer. Ergonomically situated on top of the scanner’s housing, users conveniently press the button with their thumb. This feature is especially intended for very small barcodes, menu scanning or document scanning.
The Eclipse 5145 has all necessary accessories included: the PowerLink cable can be changed according to the users’ needs. The included software »Data Parsing« processes scanned information individually and makes professional data integrationa a lot easier.
Eclipse 5145 Single-Line Laser Scanner
Honeywell's Eclipse 5145 ™ is a single-line, hand-held laser scanner with a compact form factor perfect for retail applications. Honeywell’s patented CodeGate® technology allows the user to easily target the desired barcode and complete data transmission with a simple press of a button, making the Eclipse 5145 a perfect selection for menu scanning, point-of-sale, document processing and inventory control. This entry-level laser scanning solution is ideal for organizations with limited barcode scanning needs.
Eclipse 5145 Single-Line Laser Scanner
Honeywell’s Eclipse 5145TM is a low cost laser-based alternative to CCD
scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button.
Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell’s
patented CodeGate® technology, Eclipse can be used in a wide variety of applications. CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
With Honeywell’s state-of-the-art scanning technology, the Eclipse 5145 has a longer working range and a wider scan field than a typical CCD.
The width of the scan line grows as the scanner moves further away from bar codes.
CodeSense® is a unique feature employed by Eclipse in the absence of
infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate®.
• CodeGate: Zero in on desired code and complete data transmission with the push of a single button—ideal for menu scanning applications
• CodeSense: Automatically wakes scanner from sleep mode when a bar code is detected
• Powerlink Cables: Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®
• Flash ROM: Protects POS investment with free firmware updates via MetroSet2 software and standard PC
• OPOS and JPOS System Compatible: Easily adaptable to any end-user system environment
Eclipse 5145 Technical Specifications
Dimensions (LxWxH) 169 mm x 63 mm x 51 mm (6.7˝ x 2.5˝ 2.0˝)
Weight 100 g (3.5 oz)
Input Voltage 5 VDC ± 0.25 V
Operating Power 675 mW (125 mA at 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68°, 52°
Decode Capability Reads standard 1D and GS1 DataBar symbologies.
Warranty 3 year factory warranty
For a complete listing of all compliance approvals and certifications please visit
For a complete listing of all supported bar code technologies please visit
Typical Performance*
Narrow Width Depth of Field
5.2 mil 0 mm - 51 mm (0˝ - 2.0˝)
7.5 mil 0 mm - 76 mm (0˝ - 3.0˝)
10.4 mil 0 mm - 108 mm (0˝ - 4.0˝)
13 mil 0 mm - 140 mm (0˝ - 5.5˝)
26 mil 25 mm - 178 mm (1.0˝ - 7.0˝)
*Resolution: 4 mil (0.102 mm)
*Performance may be impacted by bar code quality and environmental conditions
For more information:
Honeywell Scanning & Mobility
Dallam Court - Dallam Lane
Warrington Cheshire, WA2 7LT
United Kingdom
+44 (0)1 925 240055
Alle modellen:
-Honeywell Eclipse 5145, 1D, HD, kit (USB), black
(ms5145uss - MK5145-32A38-EU)
handheld scanner, retail, 1D, laser, high density, 0-14cm reading distance, 72 scans/sec., incl.: cable (USB), desk holder, colour: black
Garantie: 36 maanden
Uitbreiding garantie met:
-PE Service +8%
Beschikbaar toebehoren:
-Honeywell Stand for MS5145, white (ms5145hold - 46-46758)
Flexible gooseneck-stand for Honeywell MS5145 scanners for secure deposit of the scanner at the counter when not in use. The holder is NOT included in the scanner's shipment, colour: white
-Power Supply for 95xx (ms9520nt - 46-00526)
Power supply for 9520w/9540w keyboard-wedge series. Normally the Honeywell keyboard wedge scanners work with the power supplied by the PC keyboard port, but some PC mainboards do not deliver enough power. In this case, ms9520nt is needed
-IBM connection cable (mskabibm - 53020A)
Original Honeywell connection cable for IBM ECRs
-Sharp connection cable (mskabsharp - 53-53150-3)
Original Honeywell connections cable for sharp ECRs
-9 m-cable for MS9520 (ms9mkab - 53-53119-3)
27 ft (9 m) RS 232 cable for MS9520, MS9540, MS9544 (RS232 version)
-Honeywell USB cable (ms5145cabu - 55-55235-N-3)
USB cable, Type A, 1.5m (4.9´), straight, host power, colour: black
-Flexible stand, black (ms5145fsta - 46-00131-3)
Flexible gooseneck stand for Honeywell MS5145, tall, colour: black
-Honeywell Stand for 5145, black (ms5145hold-2 - 46-46758-3)
Flexible gooseneck stand for 5145, medium-height, colour: black
-Stand for MS5145 (ms5145mst - 46-46633)
Desktop holder for MS 5145
-Wall mount (ms5145wall - 46-46433)
Screw fixed wall mount
-Honeywell cable, RS232, black (ms59000 - 59-59000-3)
Connection cable, RS232 with Power-Link connector, straight, with bend-protection on the scanner side, colour: black
-Honeywell power supply, UK (msntuk6 - 46-00870)
Honeywell UK power supply, 5.2V, 1.0A, 90-255VAC
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
-Scanner-only EU : black, RS232, Installation & User´s Guide MS5145-41-3-EU
-Scanner-only EU: black, RS232/IBM RS485 Installation & User´s Guide MS5145-11-3-EU
-Scanner-only EU: light gray, RS232, Installation & User´s Guide MS5145-41-EU
-Scanner-only EU: light gray, RS232/IBM RS485 Installation & User´s Guide MS5145-11-EU
-Scanner-only EU : light gray, KBW, Installation & User´s Guide MS5145-47-EU
-Scanner-only EU: light gray, low speed USB, Installation & User´s Guide MS5145-38-EU
-KBW Kit: black scanner (MS5145-47-3), desktop stand (46-46633), KBW PowerLink cable (59-59002-3) and documentation MK5145-32A47-EU
-Scanner-only EU: light gray, USB Full Speed Installation & User´s Guide MS5145-40-EU
-RS232 Kit: black scanner (MS5145-41-3), desktop stand (46-46633), EU power supply (46-00526), 2.1m RS232 9-PIN Ruby cable (55-55000-3) and documentation MK5145-32C41-EU
Prijs op aanvraag!
