Honeywell Dolphin 99EX, 2D, SR, laser, USB, RS232, BT,…

Bewaar
  • Aantal keer bekeken 429x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

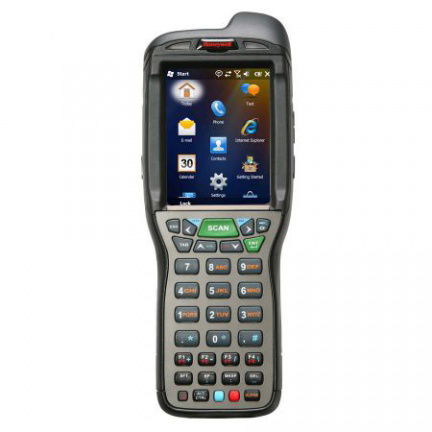

Honeywell Dolphin 99EX, 2D, SR, laser, USB, RS232, BT, Wi-Fi (hw99ex2 - 99EXL01-0C212SE)
portable data collection device, 2D, imager, standard range, laser-aimer, 34 keys, shifted alpha, touch screen, Cam (3.1MP), 9.4cm (3.7''), USB, RS232, Bluetooth, Wi-Fi (802.11a/b/g/n), 480x640 pixels, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP67
Robust handheld with high-capacity battery
Honeywell Dolphin 99EX
Highly robust handheld (IP67) for logistics, transport and the healthcare industry
Long battery life for uninterrupted mobile use
Communications capability via Bluetooth, Wi-Fi, GSM, GPS and CDMA
Perfect scanning performance via Adaptus 6.0 technology
Large 9 cm (3.7'') display for optimal outdoor performance
The Honeywell Dolphin 99EX has been specifically designed for the requirements in logistics, transport and the healthcare industry. It is highly reliabile and boasts an extremely long battery life of up to 9 hours, and with the auxiliary battery, up to 15 hours. This ensures top performance for an entire shift, even on longer workdays.
Thanks to its many connectivity options (Bluetooth, Wi-Fi, GSM and CDMA), you stay mobile, yet can still transfer data and use voice communication anywhere, ensuring that field service staff have constant access to relevant data. Via software control, you choose the best available network at the time you need it, for a continuous wireless link, even in on-going operation. This allows for real-time communication at a very high level, and, thanks to GPS, location and navigation are no problem, but rather standard functions.
The 1.0 GHz processor ensures for the necessary speed, plus the operating system (Windows Embedded Handheld 6.5) comes pre-installed. The innovative Adaptus 6.0 technology guarantees you the highest performance in scanning both 1D and 2D barcodes; the 99EX will win you over with its speed, improved movement tolerance and increased reading distance. There is also a 3.1 megapixel camera as an additional feature. Thanks to their very bright touch displays, they can also perform perfectly for users in more challenging environments, such as in direct sunlight, in the dark or in fluorescent lighting. Navigate comfortably via hand or stylus on the large 9 cm (3.7'') screen. According to the requirements, there are several keyboard layouts available, with either 34, 43 or 55 keys.
In addition to the standard version, optionally choose the more ergonomic gun version (99GX). This allows users to work faster and more productively, while completing even the most scan-intensive applications comfortably and without fatigue. The EXhc version has been specially designed for the requirements in the healthcare sector or the food industry, with specially manufactured housing for easy cleaning. All versions are highly robust and withstand repeated drops from heights of 1.8 metres. They also comply with IP67 standards and are fully operational even under extreme temperatures between -20 and +50 °C.

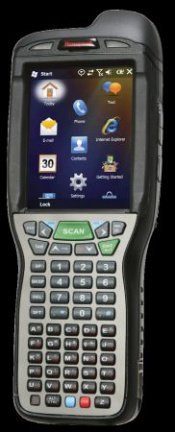

Dolphin® 99EX Mobile Computer
Honeywell’s Dolphin® 99EX mobile computer provides extreme durability, cutting-edge wireless technology, user-friendly ergonomics and multi-functional data capture for front-line workers operating in both indoor and outdoor environments. Purpose-built for transportation and logistics applications, the 99EX was designed to take mobile worker productivity to a new level while helping to reduce operating costs. The industrial Dolphin 99EX mobile computer has superior durability and fast and reliable wireless connectivity.
Dolphin 99EX Mobile Computer
Purpose built for transportation and logistics applications, Honeywell’s Dolphin® 99EX mobile computer provides user-friendly ergonomics, cutting-edge wireless technology, multi-functional data capture and extreme durability for front-line workers operating in a variety of locations ranging from loading docks to residential doorsteps.
The reliable and intuitive Dolphin 99EX delivers an outstanding feature set that enables improved productivity for mobile workers. Integrated Shift-PLUS™ technology provides all day battery life, minimizing the time and expense incurred when batteries need to be charged or replaced.
The Dolphin 99EX is IP67-rated and can withstand multiple 6 feet (1.8 meters) drops to concrete, ensuring years of trouble-free operation.
The 99EX features the latest in wireless technology, including a oftwaredefinable
radio that allows on-the-fly switching between GSM and CDMA networks, leading to improved network coverage and lower costs related to device provisioning and deployment. Additionally, built-in Wi-F provides workers with access to critical data using the new, lightning fast 802.11n standard while still supporting legacy a/b/g protocols.
Integrated motion, light and proximity sensors help conserve battery life and improve ease of use by automatically optimizing the offering for the current environment. Similarly, multiple keypad options are available to ensure that the device is configured to meet diverse data input needs.
With additional features such as an ultra-bright 3.7 inch display that can be read, even in direct sunlight, the Dolphin 99EX offers superior usability.
Designed with input from leading companies in the transportation and logistics sector, Honeywell’s Dolphin 99EX mobile computer provides a rugged solution that increases productivity by connecting enterprises, front-line workers and customers using real-time wireless communication.
Features
• Superior Durability: Incorporates an IP67-rated design that withstands multiple 6 feet drops to concrete and 2,000 1 meter tumbles, resulting in a lower total cost of ownership for enterprises
• Shift-PLUS Power Management: Enhances productivity by providing full shift battery life, eliminating the need for employees to carry spare batteries or chargers
• Adaptus® Imaging Technology 6.0: Enables multifunctional data capture by providing fast scanning of linear and 2D bar codes with excellent motion tolerance, as well as seamless image capture through use of an integrated color camera
• Fast and Reliable Wireless Connectivity: Delivers full wireless coverage for applications inside and outside of the four walls, allowing real-time access to critical data
• Optimal Combination of Performance and Usability:
Improves ease of use and worker efficiency with a large outdoor-viewable screen, multiple keypad options, a super fast CPU and smart sensors
• Optional Remote MasterMind® Software Package:
Extends mobile workforce capabilities and reduces total cost of ownership by providing a turnkey remote device management solution
• Optional Service Made Simple™ Service Plans: Offers comprehensive, hassle-free protection on the device investment for up to five years after purchase
Dolphin 99EX Technical Specifications
Mechanical/Environmental
Dimensions:
8.5˝ L x 2.7˝ W (keypad) x 1.5˝ (standard battery)/1.8˝ (extended battery)
215 mm L x 69 mm W (keypad) x 39 mm (standard battery)/45mm (extended battery)
Weight Standard battery – 520g (18.3 oz.); Extended battery – 570g (20.1 oz.)
Operating Temperature -4° to 122°F (-20° to 50°C)
Storage Temperature -13° to 158°F (-25° to 70°C)
Humidity 95% humidity, non-condensing
Drop:
Withstands multiple 6´ (1.8m) drops to concrete, all axis, and across operating temperature range
Tumble Exceeds 2,000 (1m) tumbles per IEC 60068-2-32 specification
Environmental Sealing:
Independently certified to meet IP67 standards for moisture and particle resistance
ESD Air: ±15 KV; Contact: ±8 KV
System Architecture
Processor Texas Instruments® OMAP3715 1.0GHz processor
Operating System:
Microsoft® Windows Embedded Handheld 6.5 Professional and Classic
Memory 1GB discrete NAND flash x 256 MB RAM
Display:
Chemically strengthened 3.7˝ transflective active matrix glass display, VGA (480x640), 333 nits
Touch Panel:
Industrial touch panel with resistive touch and support for finger touch and stylus
Keypad:

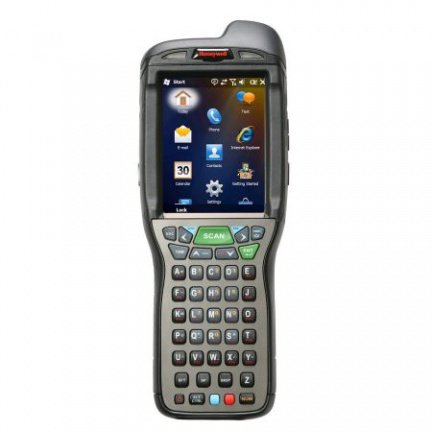

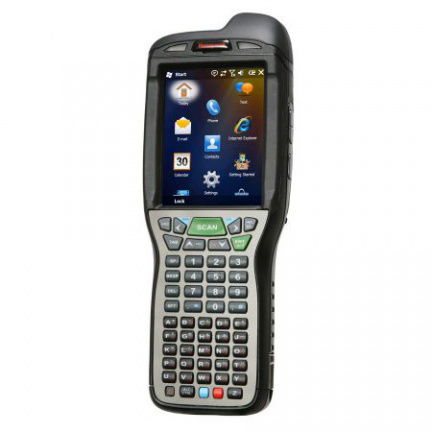

Backlit 55-key alphanumeric, 43-key alpha shifted numeric, 34-key numeric shifted alpha (phone or calculator style)
Audio Speaker, HAC compliant receiver, microphone
Camera:
3.1 megapixel camera with Automated Camera Control (ACC). Features include automated picture profiles, camera
Application Programming Interface (API), cooperational use of camera and imager, and flashlight utility
I/O Ports:
RS-232/USB 2.0/audio out/charging connector, integrated IrDA port with support for SIR mode
Storage Expansion MicroSD card (support for up to 32GB)
Battery Standard – Li-ion, 3.7V, 3060mAh; Extended – Li-ion, 3.7V, 5000mAh
Battery Life:
Standard/Extended: 9 hours/15.5 hours (scanning and sending data over WLAN every 9 seconds)
Standard/Extended: 8 hours/14.75 hours (scanning and sending data over WWAN every 15 seconds, GPS continuously receiving information)
Imager/Scanner:
N5600/5603 Standard range (SR), Extended range (ER), and High Density (HD) imagers with high-visibility laser or green LED aimer. All imagers have 25° angle and come equipped with Adaptus 6.0 Imaging Technology
Decode Capabilities Reads standard 1D and 2D symbologies
Development Environment Honeywell SDK for Windows® Embedded
Warranty 1 year factory warranty
Service Plans:
Optional three-and five-year Service Made Simple programs offer worry-free mobile computing
Wireless Connectivity
WWAN:
Software definable Gobi 3000 (data only) 3.75G radio with five-band UMTS/HSPA+ (800/850/900/1900/2100MHz), quadband GSM/GPRS/EDGE (850/900/1800/1900MHz) and dual-band EV-DO/CDMA (800/1900) support for
dual SIM card
Voice and data 3.75G radio with five-band UMTS/HSPA+ (800/850/900/1900/2100MHz) and quad-band GSM/GPRS/EDGE (850/900/1800/1900MHz)
WLAN 802.11a/b/g/n, Wi-Fi™ - certified
WLAN Security:
WPA, WPA2 (Personal and Enterprise), 802.11x, EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2,
PEAPv1/EAP-GTC, WMM, CWG-RF Profile, CCX v.4, WAPI
WPAN:
Bluetooth® V2.1, support for enhanced data rate 2.0 Mbps & 3.0 Mbps rates class II
GPS:
Integrated Assisted GPS (A-GPS) with fast position acquisition and low power consumption
Microsoft, Windows, and the Windows Logo are registered trademarks or trademarks of Microsoft Corporation. The Bluetooth trademarks are owned by Bluetooth SIG, Inc. U.S.A. and licensed to Honeywell International Inc.
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell Dolphin 99EX, 2D, SR, laser, USB, RS232, BT, Wi-Fi
(hw99ex2 - 99EXL01-0C212SE)
portable data collection device, 2D, imager, standard range, laser-aimer, 34 keys, shifted alpha, touch screen, Cam (3.1MP), 9.4cm (3.7''), USB, RS232, Bluetooth, Wi-Fi (802.11a/b/g/n), 480x640 pixels, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP67
Garantie: 12 maanden
Uitbreiding garantie met:
-Garantieverlenging +9%
Beschikbaar toebehoren:
-Honeywell Quad Charger (hw99ex4chg - 99EX-QC-2)
4-slot battery charger for Dolphin 99EX, incl. power supply, power cord (EU)
-Honeywell UK charging station (hw99ex4chguk - 99EX-QC-3)
Quad battery charging station, UK Kit, incl: UK power cord and power supply, for Dolphin 99EX/99GX
-Honeywell battery (hw99exbat - 99EX-BTEC-1)
Extended Battery Pack, Li-Ion, 3.7V, 18.5 Watt Hour, for Dolphin 99EX
-Dolphin 99EX Standard Battery Pack (hw99exbat2 - 99EX-BTSC-1)
Dolphin 99EX Standard Battery Pack (Li-Ion, 3.7V, 11.3 Watt Hour)
-Honeywell Netzteil (hw99exbnt - 300001640)
Power supply for 99EX Net Base and ChargeBase , order separately: power cord
-Honeywell Dolphin HomeBase, EU (hw99excr - 99EX-HB-2)
Honeywell HomeBase for Dolphin 99EX, charging cradle with USB and auxiliary battery well for charging an extra battery. Includes EU power cord and power supply.
-Honeywell charging cradle, 4-slot (hw99excr2 - 99EX-CB-2)
Dolphin 99EX ChargeBase. Four-bay terminal charging cradle. Includes power cord and power supply.
-Honeywell battery door (hw99exdoor - 200003933)
Erweiterter Batteriedeckel, für Honeywell Dolphin 99EX
-Honeywell Holster (hw99exlholster - 99EX-Holster-2)
Long Holster, with belt loop and pocket for spare battery, for Honeywell Dolphin 99EX
-Honeywell Cradle, 4-slot, Ethernet (hw99exncruk - 99EX-NB-3)
Net Base EU Kit, 4-Fach, Ethernet, charging and communications cradle, Incl.: serial cable,power cord EU, power supply, fits for Dolphin 6100
-Honeywell RS232 cable (hw99exrscab - 99EX-RS232-3)
RS232 Host charging and communication cable, fits for Dolphin 99EX/GX, incl.: power supply and UK power cord
-Honeywell Hand Strap (hw99exstrap - 300001655)
Hand Strap with Clip, for Dolphin 99EX
-Honeywell USB cable (hw99exuhcab - 99EX-USBH-2)
USB Host charging and communication cable, fits for Dolphin 99EX/GX, incl.: power supply and EU power cord
-Honeywell RS232 cable (hwcabser - 77900910E)
RS232 connection cable for Honeywell Dolphin Scanners, length: 1.8m
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
Type Art.nr.fabr.
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 34 Key / GPS / Camera / Standard range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW1-GC211XE
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 34 Key (calc.) / Camera / Standard range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW5-0C211XE
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 43 Key / GPS / Camera / Standard range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW2-GC211XE
-802.11a/b/g/n / Bluetooth / 55 Key / High Density w/ led aimer / 256MB x 1GB / WEH 6.5 Classic / Ext. battery / WW English / Healthcare 99EXL03-00612XEH
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 55 Key / GPS / Camera / Extended range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW3-GC111XE
-802.11a/b/g/n / Bluetooth / GSM & CDMA for data / 55 Key / GPS / Camera / Extended range w/ laser aimer / 256MB x 1GB / WEH 6.5 Classic / Ext. battery / WW English 99EXLG3-GC112XE
-802.11a/b/g/n / Bluetooth / GSM & CDMA for data / 55 Key / GPS / Camera / High Density w/ led aimer / 256MB x 1GB / WEH 6.5 Classic / Ext. battery / WW English / Healthcare 99EXLG3-GC612XEH
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 34 Key (calc.) / GPS / Camera / Extended range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW5-GC111XE
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 34 Key / Camera / Standard range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW1-0C211XE
-802.11a/b/g/n / Bluetooth / GSM & CDMA for data / 55 Key / GPS / Camera / Standard range w/ laser aimer / 256MB x 1GB / WEH 6.5 Classic / Ext. battery / WW English 99EXLG3-GC212XE
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 34 Key (calc.) / GPS / Camera / Standard range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW5-GC211XE
-802.11a/b/g/n / Bluetooth / GSM & HSDPA for voice + data / 43 Key / Camera / Standard range w/ laser aimer / 256MB x 1GB / WEH 6.5 Prof. / Ext. battery / WW English 99EXLW2-0C211XE
-ITScriptNet® Batch Plus Designer Rapid Application (License key only) ITSNBATDESPL
-Dolphin 99EX/99GX stylus kit w/ tethers - 3 pack - short (WIFI) 300001645K
-Dolphin 99EX Standard battery door healthcare 200003941
-Dolphin 99EX/99GX USB Host Charging and Communications Cable with snap on terminal connector cup – UK kit includes power supply and power cord 99EX-USBH-3
-ITScriptNet® Omni Runtime Version (License key only) ITSNOMNIRUNTIME
-Dolphin 99EX/99GX ChargeBase - UK Kit. Four-bay terminal charging cradle. Includes UK power cord and power supply. 99EX-CB-3
-ITScriptNet® Batch Plus Runtime Version (License key only) ITSNBATRUNPL
GPI+ 5-Right-to-use license keys GPI-RTU-5
-Dolphin 99EX/99GX Charge/Comm Cable – USB Client. Power supply & cord required for charging - sold separately. 99EX-USB
-Dolphin 99EX/99GX DEX Charging and Communications Cable with snap on terminal connector cup – UK kit includes power supply and power cord 99EX-DEX-3
-ITScriptNet Omni License (1-5 devices) - No OMNI Runtime license needed ITSNOMNIDL 1-5
-Upgrade package from Batch Designer to Batch Plus Designer (License key only) ITSNBATDESPLUG
-Twin Client License - Terminal Emulation software for VT100/220, TN5250, TN3260 emulation (supports 7900, 95XX, 8560, 7850, 7600) - overlay not included DCAUTHCODE
-Dolphin 99EX Protective Enclosure with removable clear front, swivel belt clip, and shoulder strap 99EX-COVER
-Dolphin 99EX/99GX Standard battery door 200003940
-Upgrade package from Batch Runtime to Omni Runtime (License key only) ITSNRUNOMNI
-Dolphin 99EX/99GX eBase - EU Kit. Single bay charging cradle with USB and Ethernet connection, and auxiliary battery well for charging an extra battery. Includes EU power cord and power supply. 99EX-EHB-2
-Upgrade package from Batch Runtime to Batch Plus Runtime (License key only) ITSNBATRUNPLUG
-GPI+ 400+ Right-to-use license keys GPI-RTU-SITE
-Dolphin 99EX/99GX Charge/Comm Cable – USB Host. Power supply & cord required for charging - sold separately. 99EX-USBH
-Dolphin 99EX/99GX RS-232 Charging and Communications Cable with snap on terminal connector cup – EU kit includes power supply and power cord 99EX-RS232-2
-ITScriptNet Omni License (25-249 devices) - No OMNI Runtime license needed ITSNOMNIDL 25-249
-ITScriptNet Batch License (1-5 devices) - No Batch Plus Runtime license needed ITSNBATPLDL 1-5
-GPI+ 1-Right-to-use license key GPI-RTU-1
-Dolphin 99EX Holster with belt loop and pocket for spare battery 99EX-Holster
-Dolphin 99EX/99GX Mobile Base Direct Connect Power Cord 24-48V 300001432
-Upgrade package from Batch Plus Runtime to Omni Runtime (License key only) ITSNRUNPLOMNI
-Dolphin 99EX/99GX eBase - UK Kit. Single bay charging cradle with USB and Ethernet connection, and auxiliary battery well for charging an extra battery. Includes UK power cord and power supply. 99EX-EHB-3
-Upgrade package from Batch Designer to Omni Complete (License key only) ITSNDESOMNI
-ITScriptNet® Batch Designer Rapid Application (License key only) ITSNBATCHDES
-Dolphin 99EX Tether (1 tether) 100007969
-Dolphin 99EX/99GX RS-232 Charging and Communications Cable with snap on terminal connector cup – UK kit includes power supply and power cord 99EX-RS232-3
-ITScriptNet Omni License (6-24 devices) - No OMNI Runtime license needed ITSNOMNIDL 6-24
-ITScriptNet Batch License (25-249 devices) - No Batch Plus Runtime license needed ITSNBATPLDL 25-249
-GPI+ 100-Right-to-use license keys GPI-RTU-100
-Dolphin 99EX/99GX Mobile Base Direct Connect Power Cord 12V 300001433 o
-Dolphin 99EX/99GX Mobile Base Vehicle Kit. Mobile charging cradle with a serial (RS-232) port for communications. Includes universal mounting bracket and 12V cigarette lighter power adapter. 99EX-MB-12
-Upgrade package from Batch Plus Designer to Omni Complete (License key only) ITSNDESPLOMNI
-ITScriptNet® Batch Runtime Version (License key only) ITSNBATCHRUN
-Dolphin 99EX stylus kit w/ tethers - 3 pack - Long (WWAN) 300001580
-Dolphin 99EX Extended battery door healthcare 200003934
-Dolphin 99EX/99GX USB Client Charging and Communications Cable with snap on terminal connector cup – UK kit includes power supply and power cord 99EX-USB-3
-ITScriptNet® Omni Full Package (License key only) ITSNOMNIFLPKG
-ITScriptNet Batch License (6-24 devices) - No Batch Plus Runtime license needed ITSNBATPLDL 6-24
-GPI+ 25-Right-to-use license keys GPI-RTU-25
-Dolphin 99EX/99GX/99GX/7800 QuadCharger, HomeBase, eBase Power Supply (no cable) 300001590
-Dolphin 99EX Charge/Comm Cable ? DEX 99EX-DEX-2
-ITScriptNet® Omni Client Version - License 5 pack (License key only) ITSNOMNICL-5
Prijs op aanvraag!
Als administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
bedienen wij onder meer het Midden- en Kleinbedrijf,
de motor van onze economie.
U kunt altijd een geheel vrijblijvende offerte aanvragen.
Mailt u ons:
- Aantal en type
- Naam Bedrijf (indien van toepassing)
- Naam Contactpersoon
- Adres
- Postcode
- Plaats
- Telefoonnummer
- E-mailadres
- Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
- B.T.W. nummer (indien van toepassing)
Bezorging aan huis!
Voor meer informatie kunt u altijd bij voorkeur per mail
contact opnemen.
Wat kunt u allemaal van ons aan informatie krijgen:
- Producthandleiding in pdf (per mail)
- Geheel vrijblijvende offerte met daarbij:
* drivers
* tools
* handleidingen
* demonstratie video product (afhankelijk van beschikbaarheid)
U kunt zich ook aanmelden voor onze geheel vrijblijvende
periodieke mailings
Wilt u daarbij vermelden:
-Naam Bedrijf (indien van toepassing)
-Naam Persoon
-Adres
-Postcode
-Woonplaats
-Telefoonnummer
-E-mailadres
-Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
-B.T.W. nummer (indien van toepassing)
Deze producten worden nog niet op onze website vermeld.
Met vriendelijke groet,
Maarten Ritmeester
Administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
Nijkerk
- ook voor al uw Point Of Sale producten -
ZATERDAG EN ZONDAG GESLOTEN


Reageer op deze advertentie

Je moet ingelogd zijn om te reageren op een advertentie.
