Omschrijving

Professional and robust mobile terminal with integrated 2D imager

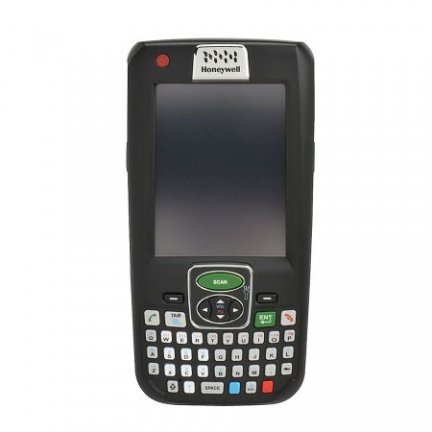

Honeywell Dolphin 9700
Robust mobile terminal for professional real-time data collection
Integrated Adaptus 2D imager with different scan distances (SR, SF, HD)
Luminous 9.4 cm (3.7'') TFT colour display with integrated touch screen
Marvel XScale processor with 624 MHz, Windows Mobile 6.5 pre-installed
Healthcare version with desinfectant-ready housing available for sensitive areas
The wide range of audio and data collection options of the Dolphin 9700 guarantee not only a high level of multi-functional applications in industrial surroundings, but also ensure absolutely high productivity and perfect performance for almost every mobile application. Important functions of a normal PDA are implemented in the smallest space with the help of the powerful XScale processor with 624 MHz, 256 MB RAM, 1 GB Flash and the pre-installed Windows Mobile 6.5 - even complicated applications are provided with sufficient memory, which is always expandable using the micro-SD slot (max. 32 GB).
Whether for standard applications such as e-mails, instant messaging, telephone calls via VoIP, images or videos, navigation via GPS, or 2D barcode scanning, with the Dolphin 9700, data is not only professionally collected, but also transferred at high-speed: the imager is ergonomically angled within the head and scans 1D and 2D codes, as well as images and signatures of up to 2 megapixels. Data is entered using the luminous 9.4 cm (3.7'') touch screen or via keypad (either numeric or QWERTY) and transferred via 3.5 GSM/HSDPA, 802.11a/b/g, Bluetooth or IrDA in real-time. The intelligent power management system guarantees uninterruptible operation and ensures the compact portable computer an absolutely low TCO.
The decisive advantages of this handy mobile computer include not only real-time data collection and a large range of communication options - much more, the diverse versions and equipments available provide every user with a suitable device. Particular attention should be directed to the Healthcare version: Its special surface is easy to clean, even with aggressive agents. Ideal features for sensitive areas such as the pharmaceutical industry, in laboratories, in hospitals and any tasks related to patient care – almost anywhere where interaction with people exposes users to special risks. With the increasing spread of infectious bacteria, humane protection is increasingly a requirement in such areas.
Dolphin® 9700 Enterprise Digital Assistant
Honeywell’s Dolphin® 9700 mobile computer is a rugged enterprise digital assistant (EDA) equipped with multi-functional data collection and communications capabilities in one reliable, easy-to-use device. The Dolphin 9700 computer allows companies specializing in parcel delivery, route accounting, field services, and healthcare point-of-care applications to better serve their customers, by maximizing worker productivity through innovations that provide increased connectivity, optimized system performance, task-specific ergonomics, and an intuitive user interface. The 9700 computer also has an optional magnetic stripe and card reader accessory for convenient reading of magnetic stripes and chip encoded identification systems.
Dolphin 9700 Mobile Computer
Honeywell’s Dolphin® 9700 rugged digital assistant maximizes worker
productivity and reduces operating costs by providing reliable and easyto-
use multi-modal communication and data collection.
Real-time communication is critical in today’s fast-paced global business
environment. Mobile workers can perform a multitude of tasks on the Dolphin 9700, including business computing, e-mail, instant messaging, web browsing, voice calls, bar code scanning, picture taking, video recording, GPS tracking, and vehicle navigation. This consolidation of hardware simplifies workflow and significantly reduces expenses.
High-speed wireless technology—3.5G GSM/HSDPA, 802.11 a/b/g,
Bluetooth®, IrDA and GPS—connects companies to customers and workers, regardless of location.
The Dolphin 9700 maximizes worker productivity and comfort by providing an optimized user interface and system performance. Its contoured industrial design is easy to handle and provides a secure grip. A large 3.7” high-resolution VGA display ensures easy data interaction in any environment. An angled imager with ergonomic scan keys enables rapid, fatigue-free scanning, while a full QWERTY keyboard with enhanced navigation keys facilitates intuitive data input. Honeywell’s Shift-PLUSTM power management system ensures continuous operation throughout an entire work shift, resulting in a lower total cost of ownership.
Automated intelligent multi-media technology enhances device utility.
Adaptus® Imaging Technology 5.5 is paired with a fully-programmable color camera which allows enterprises to easily incorporate data, image and video capture into new or existing business applications, creating additional value which improves the bottom line.
Features
• Global High-Speed Wireless Platform: Integrated
wireless technology includes 3.5G GSM/HSDPA and
802.11a/b/g for real-time data exchange and voice
communications, plus Bluetooth for efficient wireless
connection to peripheral devices and IrDA
• Versatile, High Performance Data Collection: Adaptus
Imaging Technology 5.5 reads linear and 2D bar
codes, captures digital images, and enables electronic
signature capture—enabling workers to do more with a
single device
• Shift-PLUS Power Management: Enhances productivity
by powering real-time wireless and multi-media
applications continuously for 8 hours or more
• Automated Assisted GPS (A-GPS) Technology:
Improves satellite connection speed and tracking
continuity in weak signal areas while simplifying device
set-up
• Windows® Mobile 6.5: Delivers enhanced touch-friendly
user interface, improved web browsing functionality, and
broad third-party application support
• Color Camera with Automated Programming Control:
Provides easy integration of color picture and video
capture into business applications while simplifying
operator use
Dolphin 9700 Technical Specifications
Mechanical & Environmental
Dimensions 165 mm x 85 mm x 41 mm (6.5˝ x 3.3˝ x 1.6˝)
Weight 15.6 oz. / 445 g - 17.1 oz. / 486 g
Display:
3.7˝ high-resolution VGA transflective color display with industrial touch panel
Keypad In-mold, hard-top keypad options: 31-key Numeric and 45-key QWERTY
Operating Temperature 14° to 122°F (-10°C to 50°C)
Storage Temperature -4° to 158°F (-20° to 70°C)
Humidity 95% humidity, non-condensing
Drop Withstands multiple 5 ft. (1.5 m) drops to concrete
Tumble Exceeds 2000 1.6 ft. (0.5 m) tumbles
ESD 15 KV Air & 8 KV Contact
Environmental Sealing:
Independently certified to meet IP64 standards for moisture and particle resistance
System Architecture
Processor Marvel XScale PXA270 624 MHz
Operating System Windows Mobile 6.5 Professional and Classic editions
Memory 256MB RAM X 1GB Flash
Storage Expansion Micro SD slot with High Capacity (HC) memory card support (up to 32 GB)
Battery 7.4 volt high capacity, hot swap Li-ion battery pack
Battery Hours of Operation WLAN/Max scanning: 9+ hours; WAN/GPS: 8+ hours; Talk time: 6 hours
Battery Expected Charge Time Up to 4 hours when charging completely discharged battery
Imager/Scanner
5300 Standard Range (SR), Smart Focus (SF), and High Density (HD) Imagers with High-Visibility laser aimer. All imagers equipped with Adaptus 5.5 Imaging Technology.
Decode Capabilities:
Reads standard 1D and 2D symbologies. Visit www.honeywell.com/aidc/symbologies for details.
Camera:
2 megapixel camera with Automated Camera Control (ACC). Features include automated picture profiles, camera
Application Programming Interface (API), cooperational use of camera and imager, and flashlight utility
Audio
Integral Microphone, full range high output main speaker (back), Hearing Aide Compliant (HAC) receiver audio speaker (front), mono audio and microphone input supported through the I/O connector
I/O Ports:
RS-232/USB/Charging connector, integrated IrDA port supports SIR & FIR modes
Development Environment Honeywell SDK for Windows Mobile 6.5
Third Party Software
SOTI MobiControl (remote device management), Naurtech CETerm and PowerNet™ Terminal Emulation (TNVT, 3270, 5250), and ITScriptNet™
Warranty 1 year factory warranty
Wireless Connectivity
WWAN:
3.5G GSM/UMTS/HSDPA radio with Penta-Band antenna - supports all GSM frequency bands 850/900/1800/1900/2100 MHz.
WLAN IEEE 802.11a/b/g
WLAN Security:
Wi-Fi Certified, WPA2, EAP, CCXv4, WEP, LEAP, TKIP, MD5, EAP-TLS, EAP-TTLS, WPA-PSK, PEAP
WPAN Bluetooth V2.0 + EDR
GPS:
Integrated autonomous GPS receiver with built-in Assisted-GPS (A-GPS) services and software utilities.
Voice Communication:
Full voice support including handset mode, headset mode (wired and wireless), and speaker phone mode via GSM radio. Supports Voice over WLAN.
For a complete listing of all compliance approvals and certifications please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code technologies please visit www.honeywellaidc.com/symbologies
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, num.
(hw9700 - 9700LP0003N12E)
portable data collection device, 2D, imager, standard range, keypad (31 keys, numeric), touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, QWERTY, GPS
(hw9700-10 - 9700LP0GC3Q12E)
portable data collection device, 2D, imager, standard range, keypad (QWERTY), GPS, touch screen, Cam (2MP), 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, GSM, UMTS, HSDPA, num. (hw9700-11 - 9700LPW003N11E)
portable data collection device, 2D, imager, standard range, keypad (31 keys, numeric), touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, GSM, UMTS, HSDPA, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 Pro. (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, GSM, UMTS, HSDPA, QWERTY (hw9700-12 - 9700LPW003Q11E)
portable data collection device, 2D, imager, standard range, keypad (QWERTY), touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, GSM, UMTS, HSDPA, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 Pro. (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, GSM, UMTS, HSDPA, num., GPS (hw9700-13 - 9700LPWG03N11E)
portable data collection device, 2D, imager, standard range, keypad (31 keys, numeric), GPS, touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, GSM, UMTS, HSDPA, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 Pro. (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, GSM, UMTS, HSDPA, QWERTY, GPS (hw9700-14 - 9700LPWG03Q11E)
portable data collection device, 2D, imager, standard range, keypad (QWERTY), GPS, touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, GSM, UMTS, HSDPA, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 Pro. (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, GSM, UMTS, HSDPA, num., GPS (hw9700-15 - 9700LPWGC3N11E)
portable data collection device, 2D, imager, standard range, 31 keys, numeric, GPS, touch screen, Cam (2MP), 9.4cm (3.7''), Bluetooth, Wi-Fi, GSM, UMTS, HSDPA, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 Pro. (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, GSM, UMTS, HSDPA, QWERTY, GPS (hw9700-16 - 9700LPWGC3Q11E)
portable data collection device, 2D, imager, standard range, keypad (QWERTY), GPS, touch screen, Cam (2MP), 9.4cm (3.7''), Bluetooth, Wi-Fi, GSM, UMTS, HSDPA, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 Pro. (EN), IP64
-Honeywell Dolphin 9700, 2D, SF, BT, Wi-Fi, num.
(hw9700-17 - 9700LP00C7N12EH)
portable data collection device, healthcare, 2D, imager, Smart Focus, keypad (31 keys, numeric), touch screen, Cam (2MP), 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, QWERTY
(hw9700-2 - 9700LP0003Q12E)
portable data collection device, 2D, imager, standard range, keypad (QWERTY), touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SF, BT, Wi-Fi, num.
(hw9700-4 - 9700LP00C4N12E)
portable data collection device, 2D, imager, Smart Focus, keypad (31 keys, numeric), touch screen, Cam (2MP), 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, num.
(hw9700-5 - 9700LP00C3N12E)
portable data collection device, 2D, imager, standard range, keypad (31 keys, numeric), touch screen, Cam (2MP), 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SF, BT, Wi-Fi, QWERTY
(hw9700-6 - 9700LP00C4Q12E)
portable data collection device, 2D, imager, Smart Focus, keypad (QWERTY), touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, num., GPS
(hw9700-8 - 9700LP0G03N12E)
portable data collection device, 2D, imager, standard range, keypad (31 keys, numeric), GPS, touch screen, 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
-Honeywell Dolphin 9700, 2D, SR, BT, Wi-Fi, num., GPS
(hw9700-9 - 9700LP0GC3N12E)
portable data collection device, 2D, imager, standard range, keypad (31 keys, numeric), GPS, touch screen, Cam (2MP), 9.4cm (3.7''), Bluetooth, Wi-Fi, XScale, 624 MHz, RAM: 256 MB, Flash: 1 GB, Win Mobile 6.5 (EN), IP64
Garantie: 12 maanden
Uitbreiding garantie met:
-Garantieverlenging +9%
-PE Service: +8%
-FullCover: +18%

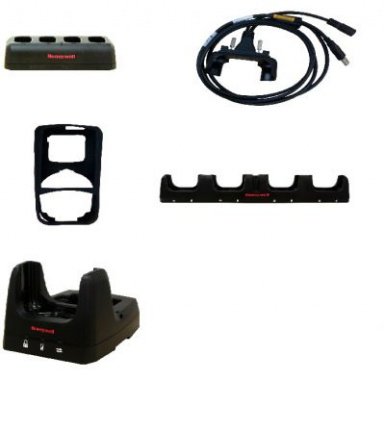

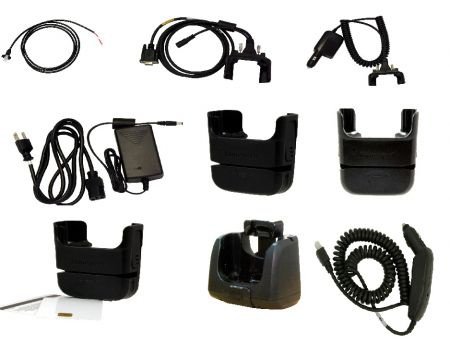

Beschikbaar toebehoren:
-Honeywell Dolphin charging cable (hw7800uchg - 42206338-01E)
Honeywell Dolphin series USB charging and communication cable
-Honeywell charging cradle, 4-slot, UK (hw97000base-uk - 9700-CB-3)
Dolphin 9700 ChargeBase - UK Kit. Four-bay terminal charging cradle. Includes UK power cord and power supply.
-Honeywell accessories (hw97000carchg - 9700-MC)
Dolphin 9700 Mobile Charge Cable kit. Includes 12V vehicle charging adapter and terminal cup.
-Honeywell charging cradle, 4-slot (hw9700base - 9700-CB-2)
Dolphin 9700 ChargeBase. Four-bay terminal charging cradle. Includes power cord and power supply.
-Honeywell USB Cable (hw9700cabu - 9700-USB-2)
USB cable for Honeywell Dolphin 9700
-Honeywell EU Charger kit (hw9700charchg-2 - 9700-QC-2)
Four-slot battery charger, incl. EU power cord and EU power supply, for Honeywell Dolphin 9700

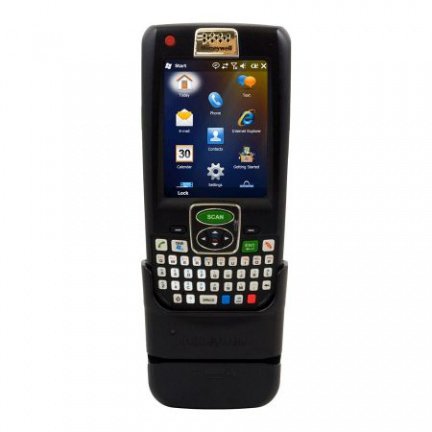

-Honeywell Cradle (hw9700cr - 9700-HB-2)
Cradle for Honeywell Dolphin 9700, USB/serial, incl. EU power supply unit
-Honeywell Cradle, UK (hw9700cr-uk - 9700-HB-3)
Charging and communication single cradle for Honeywell Dolphin 9700, USB and RS232 connection, incl. power supply and power cord (UK)
-Honeywell bettery door (hw9700door - 9700-BATTDOOR)
Battery door, for Honeywell Dolphin 9700
-Honeywell handstrap (hw9700hcstrap - 9700-STRAPHC)
Healthcare handstrap kit for Honeywell Dolphin 9700
-Honeywell handstrap (hw9700strap - 9700-STRAP)
Handstrap kit for Honeywell Dolphin 9700
-Honeywell Stylus Pen for Dolphin 9700 (hw9700sty - 9700-STYLUS3)
Honeywell Dolphin 9700 stylus with tether kit, 3 pack
-Honeywell Stylus Pen for Dolphin 9700 (hw9700sty - 9700-STYLUS3)
Honeywell Dolphin 9700 stylus with tether kit, 3 pack
-Honeywell Battery, Hi-cap. (hwbatpack - 200002586)
Spare battery for Honeywell Dolphin 6100, 7.4V, 2500mAh, Li-Ion
-Honeywell RS232 cable (hwcabser - 77900910E)
RS232 connection cable for Honeywell Dolphin Scanners, length: 1.8m
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
Type Art.nr.fabr.
-9700/802.11a/b/g/BT/Camera/SF Imager Green Aimer /QWERTY/256MB X 1G/WM6.5 Classic/English/Healthcare 9700LP00C7Q12EH
-9700/802.11a/b/g/BT/SF Imager Green Aimer /Numeric/256MB X 1G/WM6.5 Classic/English/Healthcare 9700LP0007N12EH
-9700/802.11a/b/g/BT/SF Imager Green Aimer /QWERTY/256MB X 1G/WM6.5 Classic/English/Healthcare 9700LP0007Q12EH
-ITScriptNet Batch License (6-24 devices) - No Batch Plus Runtime license needed ITSNBATPLDL 6-24
-ITScriptNet Batch License (25-249 devices) - No Batch Plus Runtime license needed ITSNBATPLDL 25-249
-Dolphin 9700 QuadCharger - UK Kit. Four-slot battery charger. Includes UK power cord and power supply. 9700-QC-3
-Upgrade package from Batch Plus Designer to Omni Complete (License key only) ITSNDESPLOMNI
-ITScriptNet® Batch Runtime Version (License key only) ITSNBATCHRUN
-Dolphin 9700 Mobile Base Truck Kit. Mobile charging cradle with a serial (RS-232) port for communications. Includes two universal mounting brackets and 24-48V direct connect power cable. 9700-MB-24
-ITScriptNet® Omni Full Package (License key only) ITSNOMNIFLPKG
-ITScriptNet Batch License (6-24 devices) - No Batch Plus Runtime license needed ITSNBATPLDL 6-24
-Dolphin 9700 Serial communication cable with snap on terminal connector cup 9700-RS232
-ITScriptNet® Omni Client Version - License 5 pack (License key only) ITSNOMNICL-5
-ITScriptNet® Batch Plus Designer Rapid Application (License key only) ITSNBATDESPL

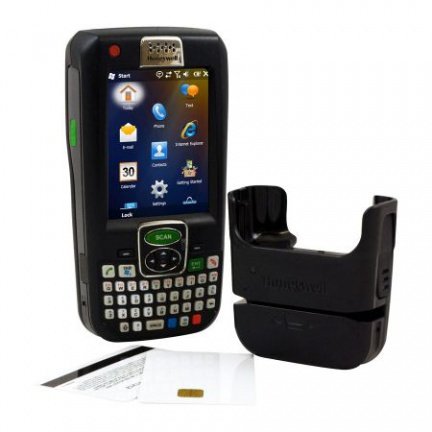

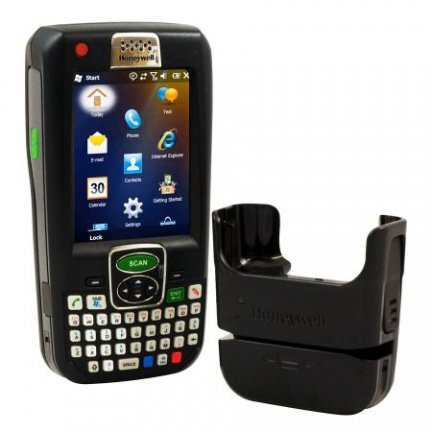

-Dolphin 9700 Magnetic Stripe and Smart Card reader module. Snap fits onto bottom of Dolphin 9700 terminal. Includes demo application and Quick Start Guide. 9700-MSCR
-ITScriptNet® Omni Runtime Version (License key only) ITSNOMNIRUNTIME
-ITScriptNet® Batch Plus Runtime Version (License key only) ITSNBATRUNPL
-Dolphin 9700 USB communication cable with snap on terminal connector cup 9700-USB
-ITScriptNet Omni License (1-5 devices) - No OMNI Runtime license needed ITSNOMNIDL 1-5
-Upgrade package from Batch Designer to Batch Plus Designer
(License key only) ITSNBATDESPLUG
-Dolphin 9700 Net Base - Europe Kit. Four-bay Ethernet communications and charging cradle. Includes Europe power supply and cord. 9700-NB-2
-Upgrade package from Batch Runtime to Omni Runtime (License key only) ITSNRUNOMNI
-Upgrade package from Batch Runtime to Batch Plus Runtime (License key only) ITSNBATRUNPLUG
-Naurtech CETERM Client License - Terminal Emulation software for VT100/220, TN5250, TN3270 emulation (9700 WM6) CETRMCLNT9700WM6
-ITScriptNet Omni License (25-249 devices) - No OMNI Runtime license needed ITSNOMNIDL 25-249
-ITScriptNet Batch License (1-5 devices) - No Batch Plus Runtime license needed ITSNBATPLDL 1-5
-Dolphin 9700 Net Base - UK Kit. Four-bay Ethernet communications and charging cradle. Includes UK power supply and cord. 9700-NB-3
-Upgrade package from Batch Plus Runtime to Omni Runtime
(License key only) ITSNRUNPLOMNI
-Upgrade package from Batch Designer to Omni Complete (License key only) ITSNDESOMNI
-ITScriptNet® Batch Designer Rapid Application (License key only) ITSNBATCHDES
Prijs op aanvraag!
Als administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
bedienen wij onder meer het Midden- en Kleinbedrijf,
de motor van onze economie.
U kunt altijd een geheel vrijblijvende offerte aanvragen.
Mailt u ons:
- Aantal en type
- Naam Bedrijf (indien van toepassing)
- Naam Contactpersoon
- Adres
- Postcode
- Plaats
- Telefoonnummer
- E-mailadres
- Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
- B.T.W. nummer (indien van toepassing)
Bezorging aan huis!
Voor meer informatie kunt u altijd bij voorkeur per mail
contact opnemen.
Wat kunt u allemaal van ons aan informatie krijgen:
- Producthandleiding in pdf (per mail)
- Geheel vrijblijvende offerte met daarbij:
* drivers
* tools
* handleidingen
* demonstratie video product (afhankelijk van beschikbaarheid)
U kunt zich ook aanmelden voor onze geheel vrijblijvende
periodieke mailings
Wilt u daarbij vermelden:
-Naam Bedrijf (indien van toepassing)
-Naam Persoon
-Adres
-Postcode
-Woonplaats
-Telefoonnummer
-E-mailadres
-Inschrijvingsnummer Kamer van Koophandel (indien van toepassing)
-B.T.W. nummer (indien van toepassing)
Deze producten worden nog niet op onze website vermeld.
Met vriendelijke groet,
Maarten Ritmeester
Administratiekantoor Ritmeester
- uw specialist in administraties en automatisering -
Nijkerk
- ook voor al uw Point Of Sale producten -
ZATERDAG EN ZONDAG GESLOTEN


Reageer op deze advertentie

Je moet ingelogd zijn om te reageren op een advertentie.
