Honeywell Dolphin 70e Black 2D, BT, Wi-Fi, GPS, ext. b…

Bewaar
  • Aantal keer bekeken 247x bekeken
  • Datum geplaatst 7 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

Honeywell Dolphin 70e Black 2D, BT, Wi-Fi, GPS, ext. bat. (hw70e-2 - 70E-L00-C111XE)
portable data collection device, 2D, imager, GPS, speaker, Cam (5MP), brightness: 550cd, 10,9cm (4,3''), micro-USB, Bluetooth, Wi-Fi (802.11a/b/g/n), Micro SD-Slot, 1GHz, RAM: 512 MB, Flash: 1 GB, Win Embedded Handheld, IP67, incl.: USB power charger, battery (extended)
Elegant, compact, powerful

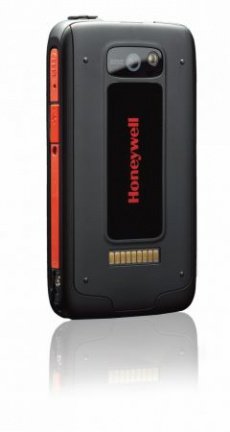

Honeywell Dolphin 70e Black
Powerful hybrid of smartphone and mobile terminal
Robust IP67 design for protection against water and dust
4.3'' touch display in practical pocket format
Integrated 2D imager and 5 megapixel camera
Voice and data transfer via WWAN, Wi-Fi and NFC
The Dolphin 70e Black from Honeywell is the first real hybrid of smartphone and mobile terminal. Robust yet elegant – here you have the perfect mix of professional and personal use. What makes it really stand apart: a large 4.3'' touch display, Windows or Android, and up to 12 hours talk time with a single battery charge. Plus, battery changes are quick and easy.
The Dolphin 70e Black is equipped with magnesium housing for extra robustness that standard consumer devices lack, in order to meet the daily requirements of the mobile worker. At the same time, it is slimmer and sleeker than standard industrially-suited terminals. Its housing is more than just good-looking: it resists water and dust, according to protection class IP67, and it withstands repeated drops onto concrete from a height of 1.20 m. Those who work in logistics, transportation and in the field, for example, will find the Dolphin 70e Black an indispensible helper.
When it comes to communication, you are on the safe side with the Dolphin 70e Black. Voice and data transfer via 3.9G UMTS/HSPA+ as well as 802.11 a/b/g/n Wi-Fi and near-field communication (NFC) expand the functionality of this device. Up to now, NFC was particularly interesting for cashless payments of small amounts in retail; however, it also serves future-proof data transfer – completely contactless and reliable.
The large 4.3'' touch screen delivers extraordinary picture quality. Whether indoors or out, 500 Nits ensure that you easily recognise everything on the display. For more damage resistance, the display is made of Gorilla glass; additionally it is equipped with capacitive dual-touch technology, just like a smartphone, and users do not need to change their habits. It also features an integrated powerful 2D imager for all common barcodes, as well as a 5 megapixel camera for capturing transportation damages, etc. What this means for you: powerful data capture and simple handling, at all times, anywhere.
Dolphin 70e Black
Enterprise Hybrid Device (EHD)
The Dolphin™ 70e Black, Honeywell’s enterprise hybrid device, successfully
marries the size, style and usability of a consumer device with the reliability
and longevity of a traditional rugged hand-held. Engineered with premium
materials and clean lines, the form factor of the Dolphin 70e Black elegantly
lends itself to personal device usage while also meeting the challenges
found in the unpredictable surroundings of the mobile enterprise.
Along with the aesthetic details, the Dolphin 70e Black was also built to deliver years of reliable operation. Incorporating Corning® Gorilla® Glass, the device’s touch screen is exceptionally resistant to damage.
The IP67-rated housing protects against dust and water immersion and for added versatility, the Dolphin 70e Black can be operated in extreme temperatures as low as -20° C (-4°F) minimizing downtime associated with conditions.
Businesses can also capitalize on the flexible platform supplied by the Dolphin 70e Black which can be customized according to use case with Microsoft® Windows® or Google® Android™ operating systems. The crystal clear 4.3˝ display can be seen in virtually any lighting condition, including outdoors, and is equipped with the same capacitive touch screen technology used in advanced smartphones, enabling the use of two-finger gestures for device operation. Further, the offering’s integrated imager provides bar code scanning performance superior to that of the camera scanning applications that are currently available in the market. Compatible with Honeywell’s turnkey remote management solution, Remote MasterMind™, the Dolphin 70e Black can be tracked and managed in real time from any location, reducing the total cost of
ownership incurred with mobile deployments.
Impeccably positioned where emotional elements and rational demands meet, the Dolphin 70e Black effortlessly enables enterprises to stay on trend without sacrificing performance.
Features
• Aesthetically Pleasing and Pocketable: Attractively designed to increase ease of adoption by brand-conscious end users
• Beyond Reliable: Integrates Corning® Gorilla Glass® for display damage resistance, and an IP67-rated housing designed to withstand multiple 4´ drops to concrete
• Crystal Clear Touch Screen Display: Capacitive touch technology and readability in various lighting conditions combine to provide an offering that is perfect for inside or outside use cases
• Fast and Reliable Wireless Connectivity: Delivers full wireless coverage for applications inside and outside of the four walls, allowing real-time access to critical data
• Remote MasterMind® Ready: Extends mobile workforce capabilities and reduces total cost of ownership by providing a turnkey remote device management solution
• Service Made Simple™ Service Plans: Offers comprehensive, hassle-free protection on the device investment for up to five years after purchase extending
the product life expectancy beyond the norm for consumer grade devices
Equipped for the enterprise and just plain stylish
You are the mobile workforce. You solve problems, make sales and even save lives. You love your smartphone but it hasn’t been believable that the same device you play Angry Birds with can be reliable enough for your enterprise apps. Until now.
It takes a village to empower your workforce
Honeywell Scanning & Mobility is the premier solution provider for businesses seeking to harness the power of their data. Our customers benefit from the depth of our product portfolio which is characterized by our second-to-none imaging technology, and the innovative and tenacious spirit with which we inspire progress within the greater data capture ecosystem. But we couldn’t do it alone… together with an extensive network of distribution partners, application developers, system integrators, and software vendors we deliver technologies that empower your workforce by simplifying the way you do business.
Designed to drive business and styled to surprise
You shouldn’t have to make the choice between smartphone chic and business brilliance. That’s why our design team crafted the Dolphin 70e Black specifically for you— with clean lines, superior materials and exquisite attention to detail. Check out this spot to find out what else they did to give you the rugged device with everything nice.
Giving voice to the needs of the mobile professional
We always come to you first to find out what you need and want from our products. And it turns out that what you want is an offering that has it all. You want a single device that replaces multiple individual devices and simply... gets the job done. Hear more about how we listened and how the Dolphin 70e Black is the result.
Dolphin 70e Black Technical Specifications
Mechanical
Dimensions:
Standard Battery: 134 mm x 73 mm x 17.4 mm (5.3˝ x 2.9˝ x 0.7˝)
Extended Battery: 134 mm x 73 mm x 23.9 mm (5.3˝ x 2.9˝ x 0.9˝)
Weight Standard Battery: 204 g (7.2 oz); Extended Battery: 244 g (8.6 oz)
Environmental
Operating Temperature -20° to 50°C (-4°F to 122°F)
Storage Temperature -25° to 70°C (-13° to 158°F)
Humidity Humidity 0 to 95% relative humidity (non-condensing)
Drop TBD
Tumble TBD
ESD ± 15KV Air and ± 8KV Contact
Environmental Sealing:
Independently certified to meet IP67 standards for moisture and particle intrusion
System Architecture
Processor 1GHz single core TI OMAP
Operating System:
Microsoft® Windows® Embedded Handheld 6.5; Google®
Android™ version 4.0 with Honeywell security and manageability features
Memory 512MB RAM X 1GB FLASH
Display:
4.3˝ WVGA (480 x 800), Brightness 550 nits, Optically bonded Corning Gorilla Glass for enhanced durability and outdoor visibility
Touch Panel 2 finger capacitive touch
Keypad:
Dedicated scan key, 4 programmable keys, volume up and down keys, side scan key, Honeywell Virtual Keypad and Keypad Creator
Audio Speaker, dual array digital microphones with echo and noise cancellation
I/O Ports Micro USB, 3.5 mm headphone/mic combo jack
Camera 5.0 mega pixel camera with autofocus and flash
Sensors Accelerometer, vibration, ambient light and proximity
Storage Expansion:
User accessible microSD slot (SDHC compatible). Please check with your Honeywell representative for available qualified card options
Battery Standard: Li-ion 3.7 V, 1670 mAh; Extended: Li-ion 3.7 V, 3340 mAh
Hours of Operation Standard: 7.5 hrs (talk time); Extended: 12 hrs (talk time)
Decode Capabilities:
Dedicated imager capable of decoding standard 1D and 2D bar code symbologies
Development Environment:
Honeywell SDK for Microsoft® Windows® Embedded Handheld 6.5
Honeywell SDK for Google® Android™ version 4.0
HSM Application Software:
Honeywell Powertools® and Demos, Remote MasterMind™ 4.0 for Mobility remote device management
Warranty 1 year factory warranty
Wireless Connectivity
WWAN:
Option 1: GSM (Voice and Data): 3.9G–UMTS/HSPA+ (900/2100 MHz), GSM/GPRS/EDGE (850/900/1800/1900 MHz).Assisted GPS included.
Option 2: Software definable (Voice and Data): 3.9G – HSPA+/UMTS (850/1900/2100MHz), GSM/GPRS/ EDGE (850/900/1800/1900MHz) and EVDO Rev A - 1xRTT/EVDO (800/1900 MHz). Assisted GPS included.
WLAN IEEE 802.11 a/b/g/n; Wi-Fi TM certified
WLAN Security:
WEP, 802.1x, LEAP, TKIP, MD5, EAP-TLS, EAP-TTLS, WPA-PSK, WPA v2.0, PEAP, CCXv4
WPAN:
2.4 GHz (ISM Band) Adaptive “frequency hopping” Bluetooth® v2.1; Class 2.0, 10m (33’) line of sight
NFC Integrated NFC reader with embedded secure element
Microsoft, Windows, and the Windows Logo are registered trademarks or trademarks of Microsoft Corporation. The Bluetooth trademarks are owned by Bluetooth SIG, Inc. U.S.A. and licensed to Honeywell International Inc.
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Preliminary Specifications Subject to Change
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell Dolphin 70e Black 2D, BT, Wi-Fi, GPS, ext. bat.
(hw70e-2 - 70E-L00-C111XE)
portable data collection device, 2D, imager, GPS, speaker, Cam (5MP), brightness: 550cd, 10,9cm (4,3''), micro-USB, Bluetooth, Wi-Fi (802.11a/b/g/n), Micro SD-Slot, 1GHz, RAM: 512 MB, Flash: 1 GB, Win Embedded Handheld, IP67, incl.: USB power charger, battery (extended)
Garantie: 12 maanden
Uitbreiding garantie met:
-Garantieverlenging +9%
-PE Service: +8%
-FullCover: +18%
Beschikbaar toebehoren:
-Honeywell Stylus (hw70estyl - 70E-STYLUS)
Stylus
-Honeywell battery (hw70esbat - BAT-STANDARD-01)
Battery pack (Li-ion, 3.7V, 1670 mAh)
-Honeywell battery (hw70eebat - BAT-EXTENDED-01)
Battery pack (Li-ion, 3.7V, 3340 mAh), extended
-Honeywell battery door (hw70eexdo - 70E-EXT BATT DOOR)
Battery door (extended)
-Honeywell battery door (hw70ebattkit - 70E-EXTBATT KIT)
Battery door (extended), incl. stylus-holder and stylus with tether
-Honeywell battery door (hw70eexdohc - 70E-EXTBATT DOORHC)
Battery door (extended), healthcare
-Honeywell battery door (hw70eexdohc2 - 70E-EXTBATT KITHC)
Battery door (extended), healthcare, incl. stylus-holder and stylus with tether
-Honeywell charger (hw70echg - 70E-CB-2)
Charger EU Kit, four-bay terminal charging cradle, incl.: power cord, power supply
-Honeywell Homebase (hw70eehb - 70E-EHB-2)
Charging/transmitter cradle EU Kit, incl. charging cradle (USB and Ethernet) with spare battery slot, power cord and power supply
-Honeywell Homebase (hw70ehb - 70E-HB-2)
Charging/transmitter cradle EU Kit, incl. charging cradle (USB) with spare battery slot, power cord and power supply
-Honeywell Cradle (hw70emb - 70E-MB-12)
Mobile Base Vehicle Kit, Mobile charging cradle with a built-in speaker, incl. suction cup, 12V-24V cigarette lighter power adapter
-Honeywell Charger (hw70emchg - 70E-MC)
Mobile charger, 12V-24V, cigarette lighter power adapter to micro USB port
-Honeywell power adapter (hw70epowadap - 70E-USB ADAPTERKIT)
Wall adapter with USB cable, incl. US, EU, and UK plugs
Prijs op aanvraag!
