Honeywell 3780, 1D, USB, kit (USB), light grey hand sc…

Bewaar
  • Aantal keer bekeken 103x bekeken
  • Datum geplaatst 8 jaar geleden geplaatst

Kenmerken


Levering
Niet van toepassing
Staat van het product
Nieuw
Type advertentie
Aangeboden
Type prijs
Op aanvraag

Omschrijving

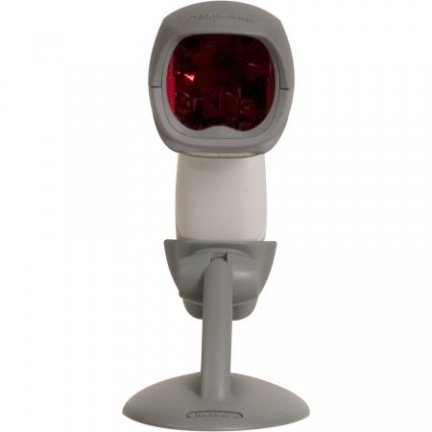

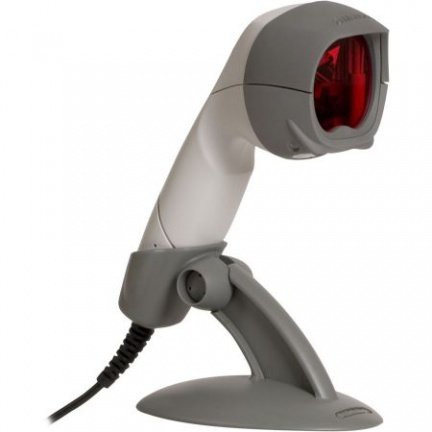

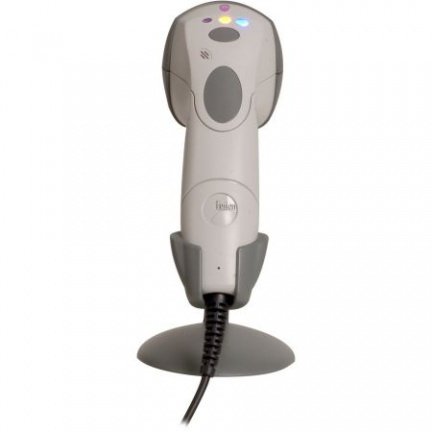

Honeywell 3780, 1D, USB, kit (USB), light grey (sco250 - MK3780-71A38)
handheld scanner, retail, 1D, omnidirectional, CodeGate function, switchable scan pattern, 1333 scans/sec., USB, incl.: cable (USB), stand, colour: light grey, licht grijs
Omnidirectional handheld scanner
Honeywell Fusion 3780
Omni-directional handheld scanner
Scanning range 2.5 - 28 cm at 1,333 scans per second
Highly aggressive, omni-directional scanning area
Scans barcodes from any angle, elf-activating or with CodeGate
Secondary single-line scan pattern (for menu scanning applications)
Compared to other hand-held laser scanners, the Fusion 3780 offers you unrivalled performance. The compact scan head is equipped with a highly aggressive, omni-directional laser optics that scans and decodes barcodes at 1,333 scans per second at any angle. This makes it the ideal solution for all demanding applications at cash desks, warehouses, workshops, or medical applications, etc.
The advantages of omni-directional scan optics are that a complete scan raster is projected onto the barcode instead of a single scan line. This makes it possible to scan the barcode in any direction. The user does not have to align the angle of the scanner with the barcode anymore. Simply direct the scan head to the label and the barcode is already scanned. Its 1,333 scans per second make this scanner particularly fast. This gives the scanner a significant increase in speed and better performance with badly printed or dirty barcodes. Additionally, you can activate the single-line mode if required. The scanning range of up to 28 cm increases ergonomics, since barcodes are already scanned from a larger distance.
In addition to the high performance, the Fusion 3780 is also a very sturdy model. Even repeated drops from 1.5 m height onto concrete do not have any effect. It features a rubber-housing that can be put into the provided scanner stand at any time. Like this, the hand-held scanner becomes a presentation scanner for accessing goods for free-handed scanning in just the wink of an eye. The scanner automatically recognises when it is placed into the stand and activates the barcode sensor mode instantly. In such a case, the scanner is automatically activated whenever a barcode comes into scanning range. The adjustable base can be inclined to an angle of 50° with three possible locking positions. This creates maximum flexibility for comfortable scanning positions and optimum scanning results. You can place the scanner on a table, or mount it on a wall to save space – the metal plate in its base will always provide enough stability.
As the working temperature of the Fusion 3780 is between -20° and +40°C, it can be used in refrigerated and heated rooms with no problems. Like all other Honeywell scanners, it uses the MetroSet2 Software and a serial cable for programming it to exactly meet your needs. Of course, you also can use the convenient programmable barcodes included in the user's manual. The Fusion 3780 is available with different interfaces like all Honeywell scanners. The 3780 is available in black only.
Fusion® 3780 Omnidierctional Laser Scanner
Honeywell's Fusion 3780 laser barcode scanner combines omnidirectional and single-line laser scanning into a lightweight and ergonomic hand-held form factor. The Fusion 3780 scanner's automatic stand detection allows users to seamlessly switch from hand-held to presentation scanning. The 20-line scan pattern provides superior scanning over existing single-line scanners, making the Fusion laser scanner ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores and convenience stores.
Fusion 3780
Omnidirectional Laser Scanner
Honeywell’s FusionTM 3780 is an affordable hand-held omnidirectional laser scanner with single-line capability that increases retail checkout system efficiency with its automatic in-stand operation, optionally integrated EAS, and industry-leading scan performance.
Fusion combines omnidirectional and single-line laser bar code scanning into a lightweight, ergonomic hand-held form factor. The 20-line scan pattern provides superior scanning over existing singleline hand-held scanners making Fusion ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores, and convenience stores.
An adjustable stand with 50° of tilt and three locking positions provides flexibility for the user to position the scanner for individual comfort and optimal performance. Stabilized with a weighted metal base, the stand may also be hard-mounted to counters or walls.
Fusion also includes CodeGate®, a Honeywell patented feature used in the highly successful Voyager® series. An integrated infra-red (IR) sensor automatically activates the laser when a bar code is present.
The user then properly aligns the bar code before pressing the button, transmitting the data to the host. This feature provides the ability to pass over other bar codes, selecting only the required code. No other scanner offers this much control.
Standard features such as Flash ROM, MetroSelect® and MetroSet®2
programming, and user replaceable cables protect your investment by enabling Fusion to grow with you and your application requirements.
Features
• Primary Omnidirectional Scan Pattern: Aggressive scanning in any orientation, increasing throughput
• Secondary Single-Line Scan Pattern: With a push of a button, switch to a targeted single-line for menu scanning applications
• Automatic In-Stand Detection: Hands-free operation for presentation scanning reduces operator fatigue
• Sleep Mode With IR Wake Up: Multiple sleep modes reduce power consumption, extending life and lowering cost of operation
• Optional Integration of RF EAS Antenna: Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes
Fusion 3780 Technical Specifications
Mechanical
Dimensions (LxWxH) 189 mm x 65 mm x 73 mm (7.4˝ x 2.6˝ x 2.9˝)
Weight 195 g (6.9 oz)
Electrical
Input Voltage 5 VDC ± 0.25 V
Operating Power 1.4 W (275 mA at 5 V)
Standby Power 1.0 W (200 mA at 5 V)
Host System Interfaces:
USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
Environmental
Operating Temperature -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand multiple 1.5 m (5´) drop
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern:
Omnidirectional: 5 fields of 4 parallel lines; Button activated single line
Scan Speed:
Omnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per second
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
For a complete listing of all compliance approvals and certifications, please visit www.honeywellaidc.com/compliance
For a complete listing of all supported bar code symbologies, please visit www.honeywellaidc.com/symbologies
Typical Performance*
Narrow Width Depth of Field
5.2 mil 44 mm - 108 mm (1.8˝ - 4.3˝)
7.5 mil 25 mm - 190 mm (1.0˝ - 7.5˝)
10.4 mil 25 mm - 240 mm (1.0˝ - 9.5˝)
13 mil 25 mm - 280 mm (1.0˝ - 11.0˝)
21 mil 25 mm - 300 mm (1.0˝ - 12.0˝)
*Resolution: 5 mil (0.127 mm)
*Performance may be impacted by bar code
quality and environmental conditions
For more information:
www.honeywellaidc.com
Honeywell Scanning & Mobility
9680 Old Bailes Road
Fort Mill, SC 29707
800.582.4263
www.honeywell.com
Alle modellen:
-Honeywell 3780, 1D, USB, kit (USB), light grey (sco250 - MK3780-71A38)
handheld scanner, retail, 1D, omnidirectional, CodeGate function, switchable scan pattern, 1333 scans/sec., USB, incl.: cable (USB), stand, colour: light grey
Garantie: 36 maanden
Uitbreiding garantie met:
-PE Service +8%
-FullCover: +18%
Beschikbaar toebehoren:
-Honeywell USB cable (hla338 - 53-53235-N-3)
USB cable, spiral, length: 2.9 m, colour: black, for Voyager/Fusion/ Focus
-Honeywell KBW cable, spiral (hla342 - 53-53020-3)
Powered KBW cable (spiral) for Honeywell Voyager, Focus and Fusion, 3 m, 12V
-IBM connection cable (mskabibm - 53020A)
Original Honeywell connection cable for IBM ECRs
-Sharp connection cable (mskabsharp - 53-53150-3)
Original Honeywell connections cable for sharp ECRs
-9 m-cable for MS9520 (ms9mkab - 53-53119-3)
27 ft (9 m) RS 232 cable for MS9520, MS9540, MS9544 (RS232 version)
-Honeywell Stand (ms3780stand - 46-00225-2)
Stand, light gray, for use with Honeywell Fusion 3780
-Honeywell Stand (ms3780standsw - 46-00225-3)
Stand, black, for use with Honeywell Fusion 3780
-Honeywell KBW cable (ms54002 - 59-59002-3)
Honeywell kbw cable, length: 2.1 m, straight, for Honeywell 3780, 7625, 7120, 7180, 3480, 3580
-Honeywell cable, RS232, black (ms59000 - 59-59000-3)
Connection cable, RS232 with Power-Link connector, straight, with bend-protection on the scanner side, colour: black
-Honeywell power supply, UK (msntuk6 - 46-00870)
Honeywell UK power supply, 5.2V, 1.0A, 90-25
Naast ons uitgebreide aanbod, kunnen wij ook de volgende versies en accessoires van dit product leveren. Contacteer ons.
Type Art.nr.fabr.
-Scanner-only: light gray, KBW, Installation & User´s Guide MS3780-47-7
-Scanner-only: dark gray, IBM 46x RS485, Installation & User´s Guide MS3780-11
-Scanner: light gray, USB Full Speed MS3780-40-7
-Scanner-only: light gray, IBM 46x RS485, Installation & User´s Guide MS3780-11-7
-Scanner-only: dark gray, RS232, Installation & User´s Guide MS3780-41
-USB Kit: dark gray scanner w/ EAS (MS3780-120/EAS), stand (46-00225-3), USB EAS No PowerLink cable (55-55809x-N-E-3) and documentation MK3780-61A38/EAS
-Scanner-only: dark gray, low speed USB, Installation & User´s Guide MS3780-38
-Scanner-only: light gray, RS232, Installation & User´s Guide MS3780-41-7
-RS232 Kit: dark gray scanner w/ EAS (MS3780-41/EAS), stand (46-00225-3), EU power supply (46-00526), straight RS232 EAS PowerLink cable (53-53000x-E-3) and documentation MK3780-61C41/EAS
-Scanner-only: light gray, low speed USB, Installation & User´s Guide MS3780-38-7
-Scanner-only: dark gray, KBW, Installation & User´s Guide MS3780-47
-RS232 Kit: dark gray scanner w/ EAS (MS3780-41/EAS), stand (46-00225-3), UK power supply (46-00807), straight RS232 EAS PowerLink cable (53-53000x-E-3) and documentation MK3780-61D41/EAS
-Scanner: dark gray, USB Full Speed MS3780-40
-Cable: IBM 46XX, RS485 Port 9, straight, host powered MVC-3MNS-POS80
-Cable: KBW, black, 2.9m (9.5?), coiled, host power 53-53002-N-3
-Cable: IBM 46xx, black, Port 9 4-pin SDL, 3.1m (10.2´), coiled, 9V host power MVC-3MPC-IB9
Prijs op aanvraag!
