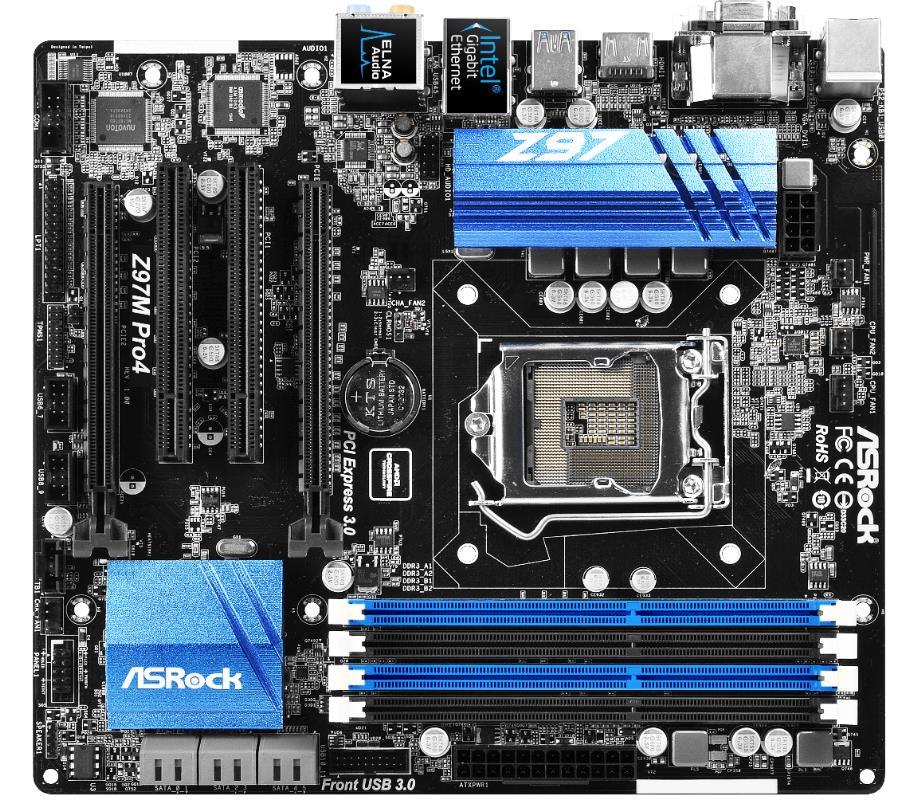

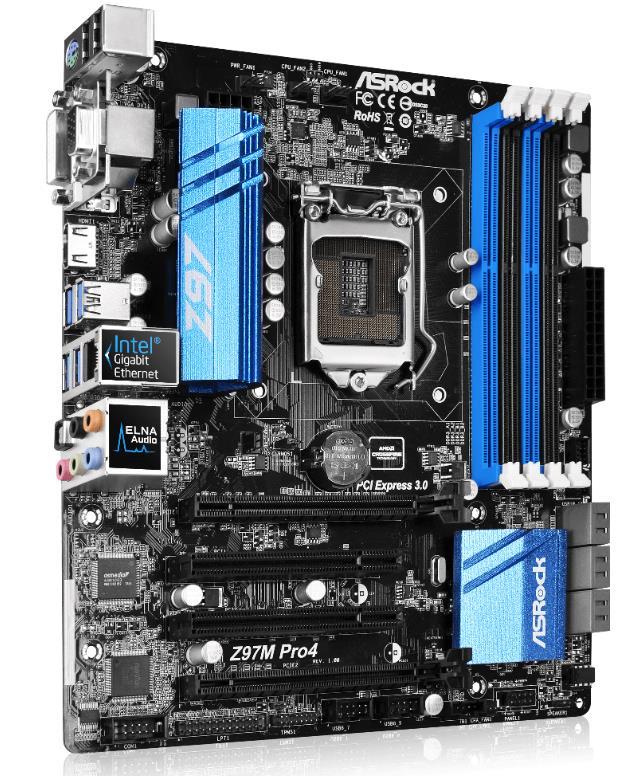

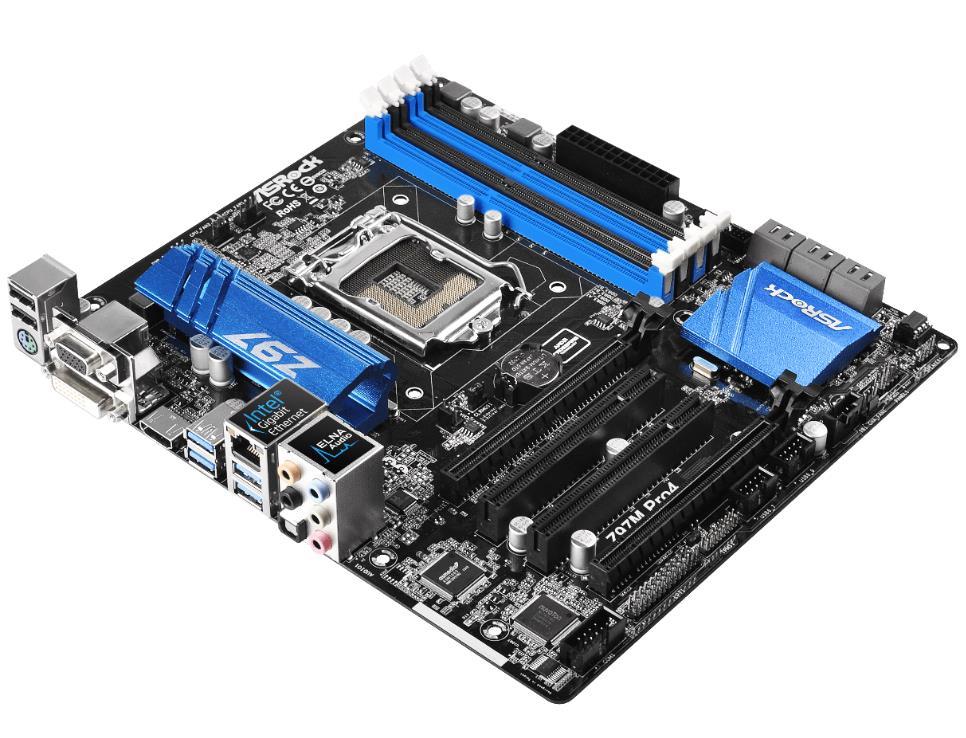

ASRock Z97M Pro4 - Socket 1150 - Micro-ATX

Bewaar
  • Aantal keer bekeken 35x bekeken
  • Datum geplaatst 2 dagen geleden geplaatst

Kenmerken


Levering
Ophalen of verzenden
Staat van het product
Zo goed als nieuw
Type advertentie
Aangeboden
Type prijs
Vraagprijs

Omschrijving

De ASRock Z97M Pro4 is een Micro ATX Socket 1150 moederbord gebaseerd op de Intel Z97 chipset. Het bord dient gecombineerd te worden met DDR3 geheugen, waarvoor 4 sloten beschikbaar zijn met een maximale capaciteit van 32GB . USB 3.0 biedt het bord 6x en USB 2.0 6x. In totaal heeft de ASRock Z97M Pro4 6 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC892 chip.

Specificaties:
 Moederbord | Socket LGA1150 | M-ATX | Intel Z97 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet – DVI-D | HDMI | VGA | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s) | 2x PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16



Product: ASRock Z97M Pro4
Categorie: Moederborden
Merk: ASRock
EAN: 4717677323559
SKU: 90-MGXUD0-A0UAYZ, 90-MXGUD0-A0UAYZ, Z97M Pro4, Z97MPRO4
Staat: Refurbished – BIOS bijgewerkt naar de laatst beschikbare versie
Garantie: 6 Maanden

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

Unique Feature

– Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– NexFET™ MOSFET
– Sapphire Black PCB


CPU
– Supports 5th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 4 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking

Chipset
– Intel® Z97

Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 4 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 3100+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment

Graphics
– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– ELNA Audio Caps

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I218V
– Supports Intel® Remote Wake Technology
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
– 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
– 2 x PCI Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™

Storage
– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector*
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*Please update to the latest BIOS to support Thunderbolt™ technology.

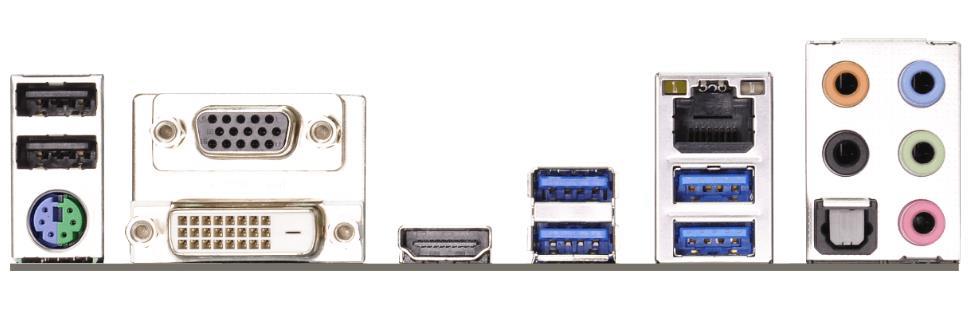

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor
– Solid Capacitor design
– High Density Glass Fabric PCB

OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
