ASRock Fatal1ty X99 Professional - LGA2011-3

Bewaar
  • Aantal keer bekeken 29x bekeken
  • Datum geplaatst 2 dagen geleden geplaatst

Kenmerken


Levering
Ophalen of verzenden
Staat van het product
Zo goed als nieuw
Type advertentie
Aangeboden
Type prijs
Vraagprijs

Omschrijving

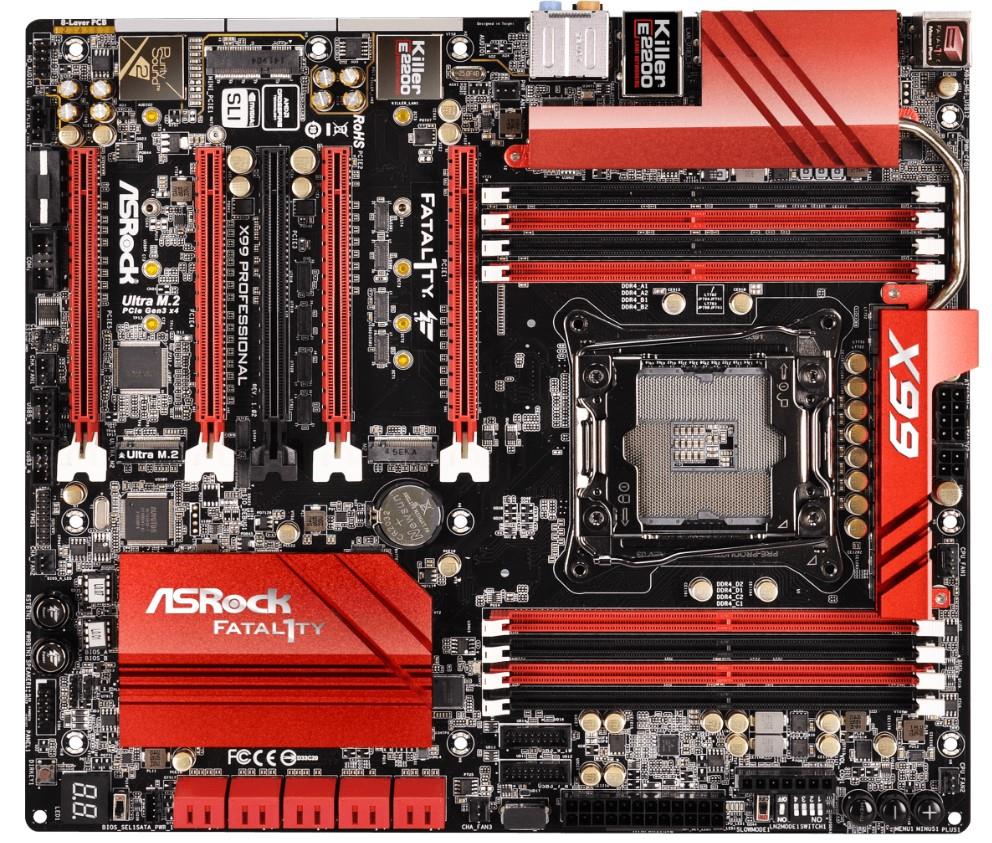

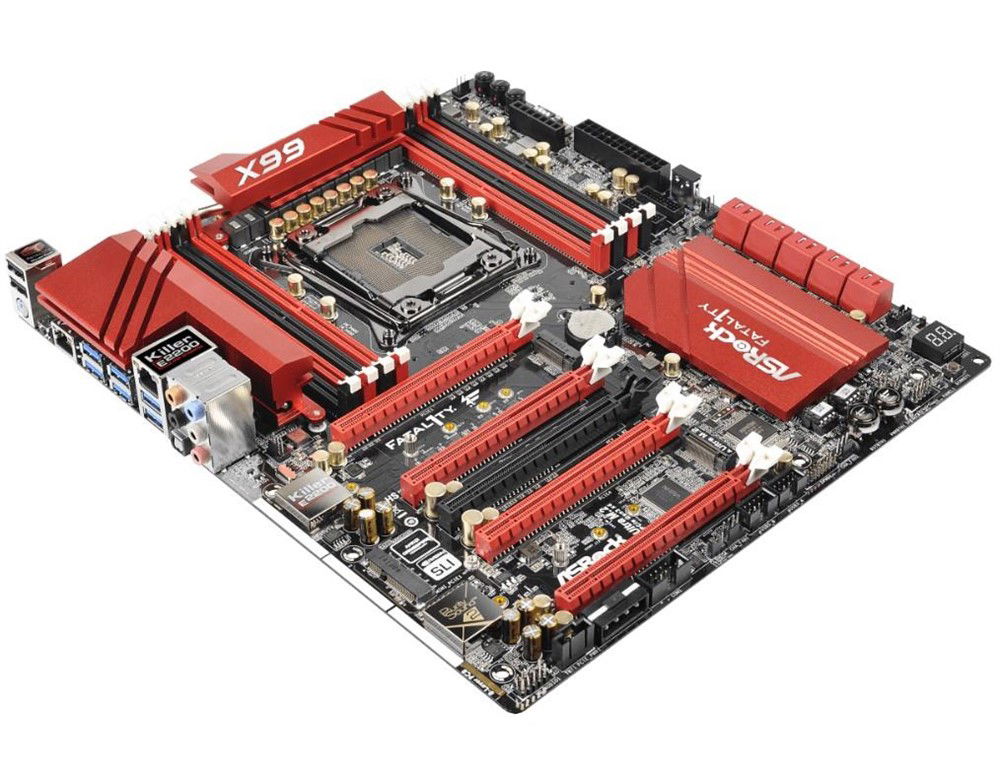

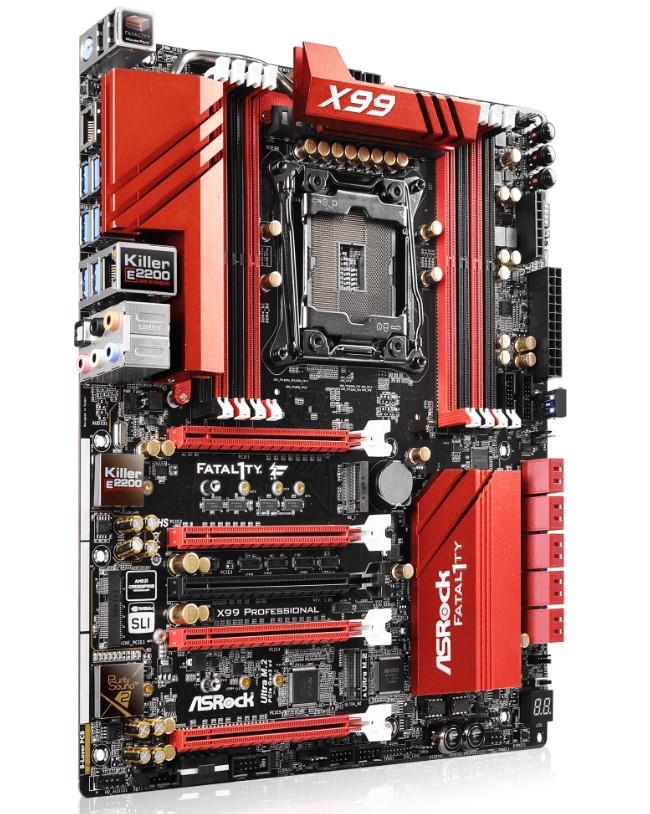

De ASRock Fatal1ty X99 Professional is een ATX Socket 2011-3 moederbord gebaseerd op de Intel X99 chipset, geschikt voor Intel Core i7 / Xeon processors. Het bord dient gecombineerd te worden met DDR4 geheugen, waarvoor 8 sloten beschikbaar zijn. USB 3.0 biedt het bord 10x en USB 2.0 7x. In totaal heeft de ASRock Fatal1ty X99 Professional 10 Serial ATA aansluitingen voor harddisks en SSD’s. De onboard geluidskaart biedt 7.1 kanaals geluid en is gebaseerd op een Realtek ALC1150 chip. Het bord biedt 2 netwerkaansluitingen, waarbij je maximaal met 1000 Mbps kunt verbinden.

Eigenschappen:
Moederbord | ATX | Socket 2011-3 | 8x DDR4 | Intel X99 Chipset | M.2 (PCI-e 3.0 x4) | M.2 (S600/Pcie2.0x4) | 10x SATA-600 | mini-PCI Express | 5x PCI-e 3.0 x16 | 6x USB 2.0 | 11x USB 3.2 (Gen1, 5Gb/s) | AMD Crossfire | Nvidia SLI/NVLink

Product: ASRock Fatal1ty X99 Professional
Socket: 2011-3
Categorie: Motherboards
Merk: ASRock
Staat: Refurbished – Bios updated to the latest version
EAN: 4717677324723
SKU: 90-MXGW80-A0UAYZ, Fatal1ty X99 Professional, X99 PROFESSIONAL
Garantie:
6 Maanden

pakketinhoud:
– Moederbord (ASRock Fatal1ty X99 Professional)
– IO-Shield (blikken achterplaatje)
– geen handleiding
– geen driver-cd
– geen kabels

Gaming Armor

– Hi-Density Power Connector
– Ultra Dual-N MOSFET (UDM)

– 15μ Gold Contact in DIMM Slots

– 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
– PCIe Power Connector

– Intel® LAN
– Qualcomm® Atheros® Killer™ LAN

– XXL Aluminum Alloy Heatsink
– 8 Layer PCB
– 4 x 2oz copper
– Heat Pipe Design

– Purity Sound™ 2

Unique Feature

– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Ultra Dual-N MOSFET (UDM)
– Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
– Sapphire Black PCB




CPU
– Supports Intel® Core™ i7 and Xeon® 22-Core Processors Family for the LGA 2011-3 Socket
– Digi Power design
– 12 Phase CPU Power design (Supports up to 1300w)
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Untied Overclocking Technology

Chipset
– Intel® X99

Memory
– Quad Channel DDR4 Memory Technology
– 8 x DDR4 DIMM Slots
– Supports DDR4 3400+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered memory
– Supports non-ECC x8 (8 bit) RDIMM (Registered DIMM)/x8 (8 bit) UDIMM
– Supports DDR4 ECC x8 (8 bit) RDIMM/x8 (8 bit) UDIMM with Intel® Xeon® processors E5 series in the LGA 2011-3 Socket, but not include x4 (4 bit) RDIMM/ x4 (4 bit) UDIMM.
– Max. capacity of system memory: 128GB (with Core™ i7 CPU Broadwell-E, Xeon® CPU) or 64GB (with Core™ i7 CPU Haswell-E)
– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

** Please refer to Memory Support List on ASRock’s website for more information.

BIOS
– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
– Supports Secure Backup UEFI Technology
– ACPI 5.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-adjustment

Graphics
– n/a

Audio
– 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection (ASRock Full Spike Protection)
– Supports Purity Sound™ 2
– Nichicon Fine Gold Series Audio Caps
– 115dB SNR DAC with differential amplifier
– TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
– Direct Drive Technology
– EMI shielding cover
– PCB isolate shielding
– Supports DTS Connect

LAN
– 1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
– 1 x Qualcomm® Atheros® Killer™ E2200 Series (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
– Supports Qualcomm® Atheros® Security Wake On Internet Technology (on Qualcomm® Atheros® Killer™ E2200 Series)
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 5 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x8 (PCIE1) / x8 (PCIE2) / x8 (PCIE4) / x8 (PCIE5))*
– 1 x Half Mini-PCI Express Slot
– Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
– Supports NVIDIA® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™***

*If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE4/PCIE5 will run at x16/x0/x4/x8/x0 or x8/x8/x4/x8/x0, and PCIE5 will be disabled.

**If Ultra M.2 PCI Express module is installed, PCIE3 slot will be disabled.

***If you install CPU with 28 lanes, 4-Way CrossFireX™ and 4-Way SLI™ are not supported.

****To support 3-Way CrossFireX™ and 3-Way SLI™ when using CPU with 28 lanes, please install VGA cards to PCIE1/PCIE2/PCIE4 (x8/x8/x8).

*****To support 4-Way CrossFireX™ and 4-Way SLI™, please install the CPU with 40 lanes.

Storage
– 10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel® Rapid Storage 13), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology*
– 1 x Ultra M.2 Socket (ULTRA_M2), supports M Key M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
– 1 x M.2_SSD (NGFF) Socket 3 (M2_1), supports M Key M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)

*S_SATA3_3 connector is shared with M.2 Socket (M2_1)

**RAID is supported on SATA3_0 ~ SATA3_5 ports only.

Connector
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
– 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x HDD Saver Connector
– 1 x PCIe Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector*
– 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Vertical Type A USB 3.1 Gen1
– 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Dr. Debug with LED
– 1 x Power Switch with LED
– 1 x Reset Switch with LED
– V-Probe™: 7-set of onboard voltage measurement points laid
– Rapid OC Buttons: +/- buttons to adjust OC frequency
– 1 x Menu Button
– 1 x PCIe ON/OFF Switch
– 1 x Slow Mode Switch
– 1 x LN2 Mode Switch
– 1 x BIOS Selection Switch
– 1 x Direct Key Button

*Please update to the latest BIOS to support Thunderbolt™ technology.

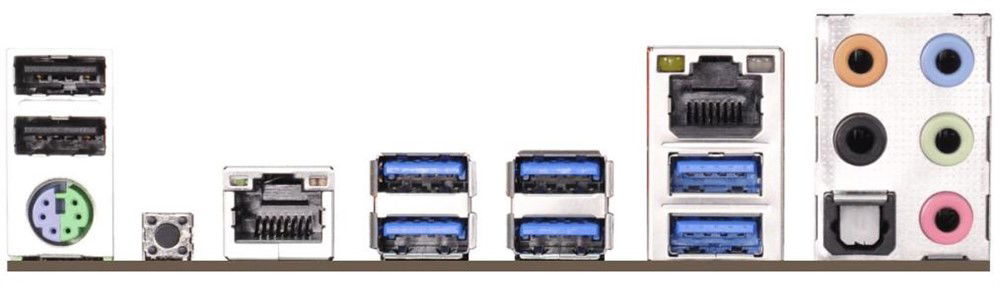

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x Optical SPDIF Out Port
– 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
– 4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1 x Clear CMOS Switch
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock F-Stream
– ASRock Disk Health Report
– ASRock USB Key
– ASRock Key Master
– ASRock Timing Configurator
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Restart to UEFI

UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages
– Multi Thermal Sensor

Form Factor
– EATX Form Factor
– 8 Layer PCB
– 4 x 2oz copper
– High Density Glass Fabric PCB

OS
– Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
